NEXIA,
CIELO, RACER
II
27)
HEAD
LAMP LEVELING DEVICE(OPTION)

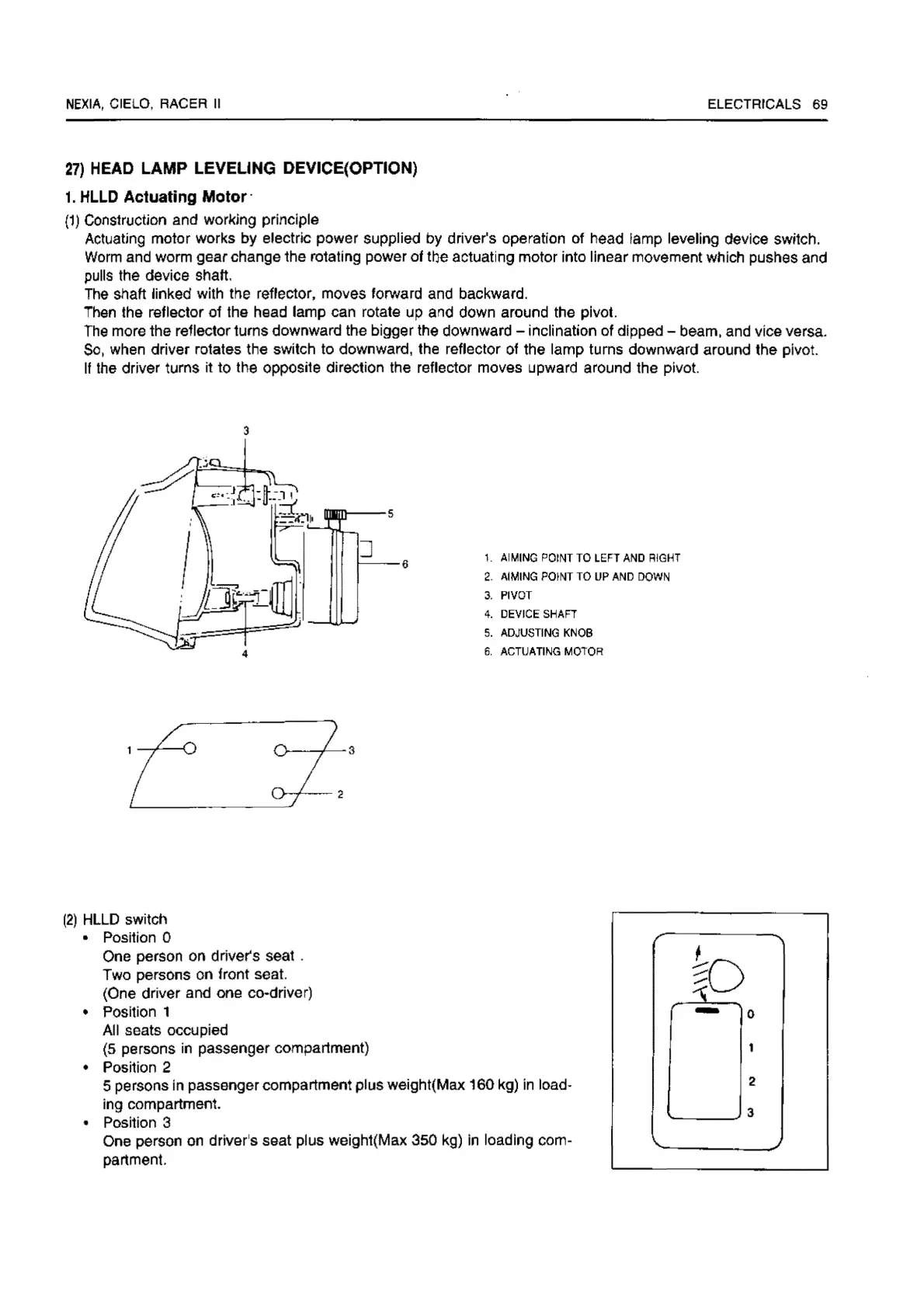

1.
HLLD
Actuating
Motor·
(1)
Construction
and working prlnclple
ELECTRICALS 69
Actuating
motor works by electric power supplied by driver's operation
of
head
tamp
leveling device switch.
Worm
and
worm
gear change the rotating
power
of tbe actuating motor into linear
movement
which
pushes
and
pulls
the
device
shaft.
The
shaft linked with
the
reflector,
moves
forward
and
backward.
Then
the
reflector
of
the
head
lamp can rotate
up
and
down
around
the
pivot.
The
more
the reflector
turns
downward the bigger
the
downward - inclination of dipped -
beam,
and
vice versa
So,
when
driver rotates
the
switch to downward,
the
reflector
of
the lamp turns downward around the pivot.
If
the
driver turns
it
to the opposite direction
the
reflector
moves
upward
around the pivot.
3
1
...__t_~
__
:Z:
(2)
HLLD
switch
•
Position
O
One
person
on
driver's
seat
.
Two
persons
on
front
seat.
(One
driver
and
one co-driver)
• Position 1
All
seats occupied
(5 persons
in
passenger compartment)
• Position 2
6
1.
AIMING
POINT
TO
LEFT
AND
RIGHT
2.
AIMING
POINT
TO
UP
AND
DOWN
3.
PIVOT
4.
DEVICE
SHAFT
5.
ADJUSTING
KNOB
6.
ACTUATING
MOTOR
-
0
1
2
5 persons
In
passenger compartment
plus
weight(Max 1
eo
kg)
In
load-
ing
compartment.
•
Position
3
___
..,3
One
person
on
driver's seat plus weight(Max 350
kg)
In
loadlng
com-
partment.
