NEXIA,
CIELO, RACER
II
-
K14,
K14-1

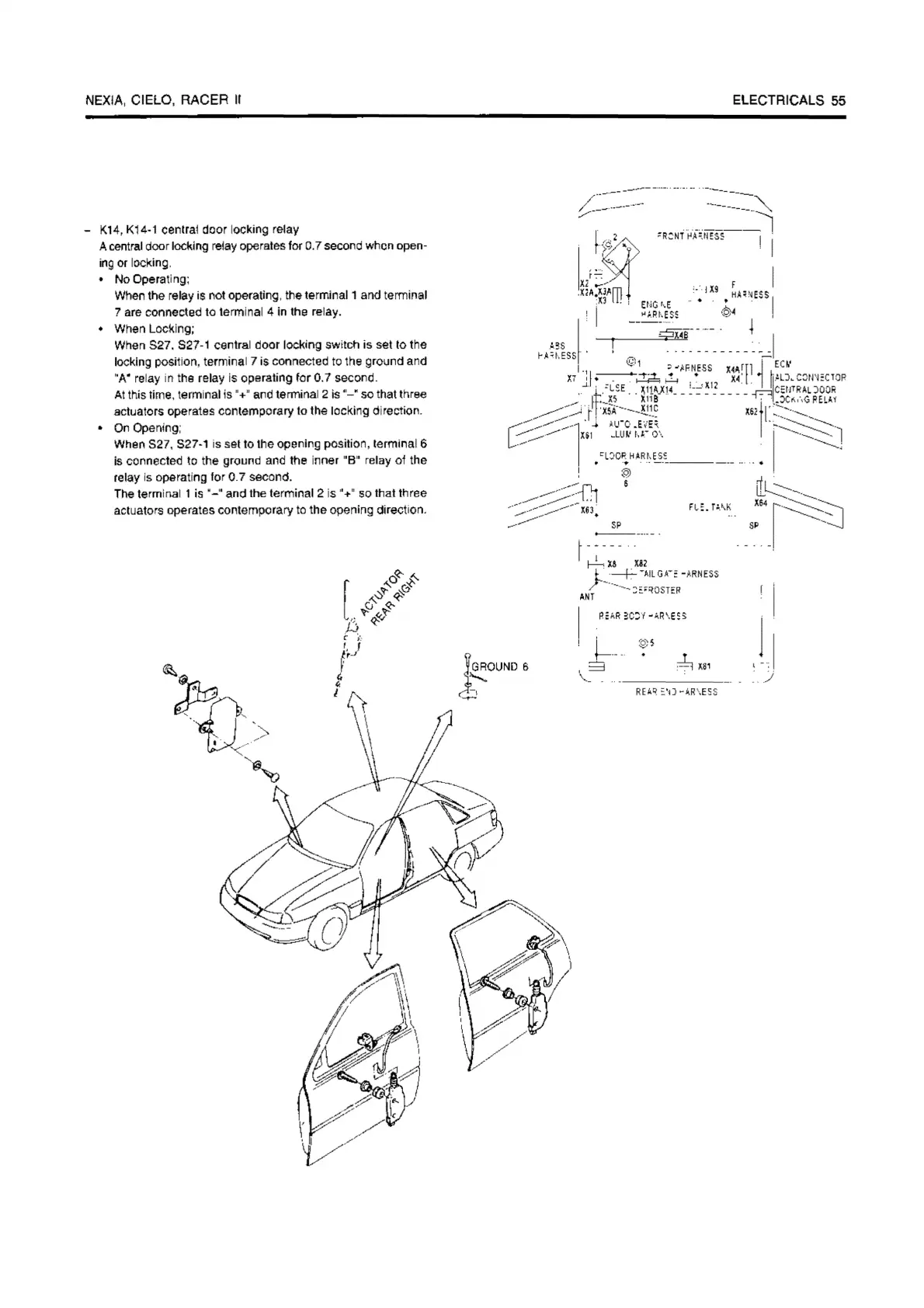

central door locking relay
A central door locking relay operates for
O.
7
second
whon
open·
ing
or
locking.
• No Operating;
When
the
rele.y
is
not operating, the terminal 1
and
te1TTiinal
7
are
connected to terminal 4
In
the relay.
•
When
Locking;
When
S27,
S27-1
central door locking switch is set to the
locking position, terminal
7 is connected to the ground
and
"A"
relay
in
the relay
Is
operating for 0.7 second.
At
this
time,
terminal is • + • and terminal 2
Is
• - •
so
that three
actuators operates contemporary to the locking direction.
•
On
Opening;
When
S27,
S27-1
is
set to the opening position, terminal 6
Is
connected to the ground
and
the Inner
•e•
relay
of
the
relay
Is
operating for
0.
7 second.
The terminal 1
is·-·
and the terminal 2
ls"+'
so
that three
actuators operates contemporary
to the opening
diree1ion.
ELECTRICALS 55
