4.3 TDA8358J VERTICAL AMPLIFIER
The TDA8358J are power circuit for use in 90° and 110° colour deflection systems for field
frequencies of 25 to 200Hz field frequencies, and for 4:3 and 16/9 picture tubes. The IC contains
a vertical deflection output circuit, operating as a high efficiency class G system. The full bridge
output circuit allows DC coupling of the deflection coil in combination with single positive supply
voltages.
The east-west output stage is able to supply the sink current for a diode modulator circuit.
The IC is constructed in a Low Voltage DMOS(LVDMOS) process that combines bipolar, CMOS
and DMOS devices. DMOS transistors are used in the output stage because of the absence of
second breakdown.

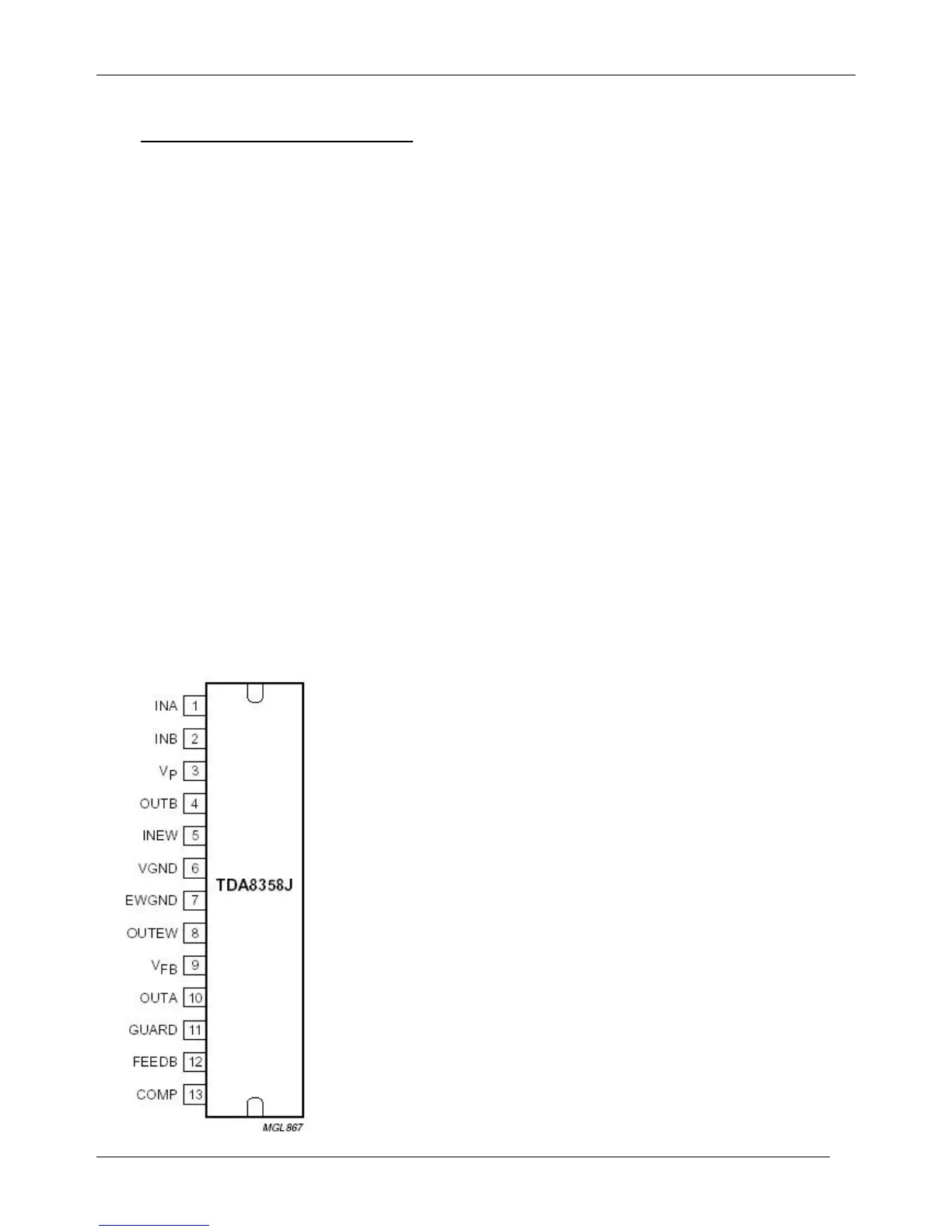

4.3.1 TDA8358J
Features :
§ Few external components
§ Highly efficient fully DC-coupled vertical bridge output circuit
§ Vertical flyback switch with short rise and fal times
§ Built-in guard circuit
§ Thermal protection circuit
§ Improved EMC performance due to differential inputs
§ East-west output stage
