Operation Section
- 59 -

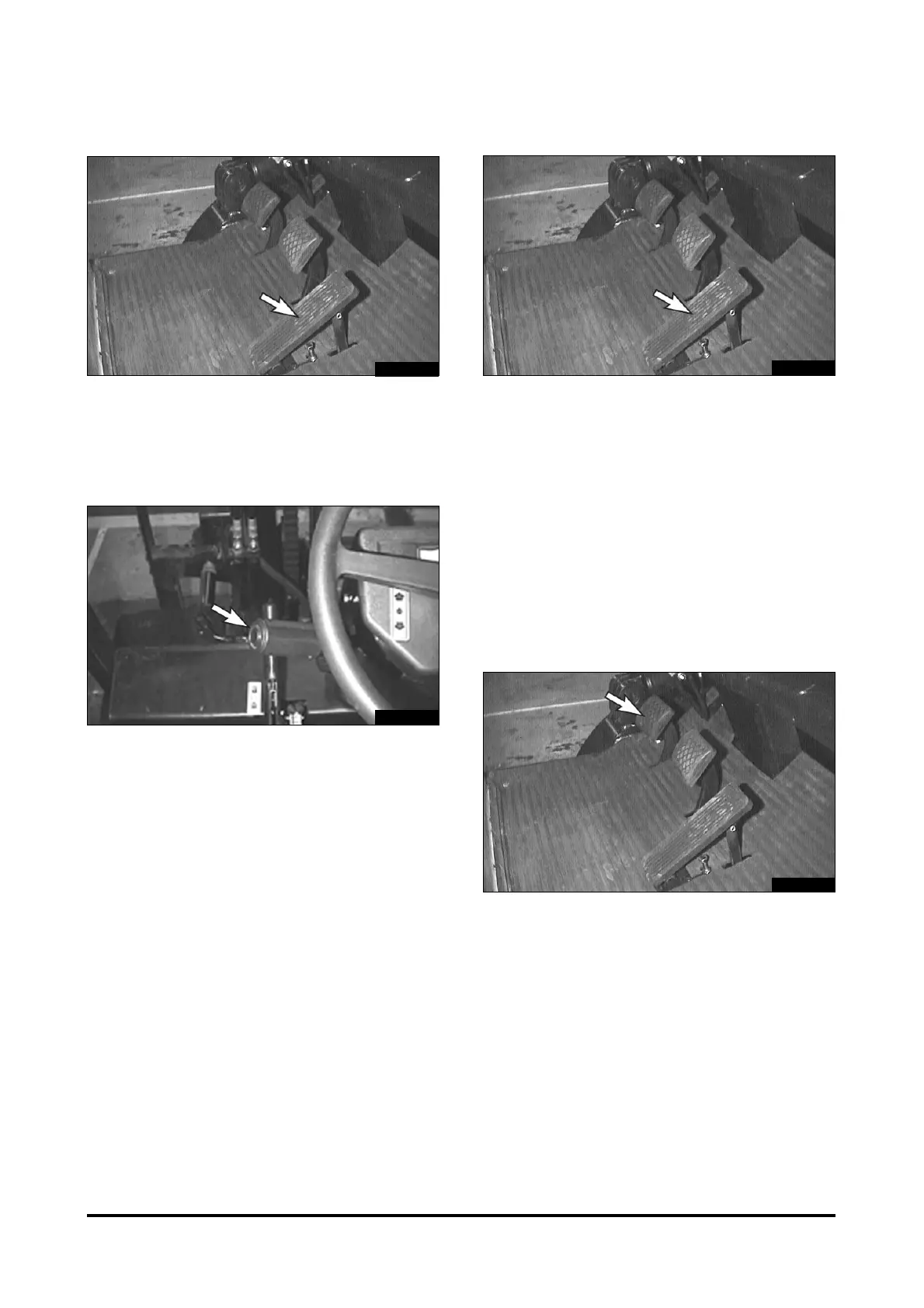

7. To change the lift truck direction of travel, release
the accelerator pedal.
8. Push down on the service brake pedal to reduce
the lift truck speed as necessary.
9. Move the directional lever to the desired direction
of travel. Slowly push down on the accelerator
pedal as the lift truck changes direction.
10. When the direction change is completed, con-
tinue to push down on the accelerator pedal to
obtain the desired travel speed.
11. To stop the lift truck when traveling in either
direction, release the accelerator pedal.
12. Push down on the service brake pedal and
bring the lift truck to a smooth stop.
Inching
NOTE : The purpose of the inching pedal is to pro-
vide precise lift truck inching control at very slow
travel speed and high engine rpm. This is used for
fast hydraulic lift, during load approach, pick up or
load positioning.
1. To inch (creep) in either direction, slowly push
down on the inching pedal. This will start to apply
the service brakes and allow the transmission
clutch discs to slip.
2. Vary the position of the inching pedal and the
acceleratror pedal to control the inching speed and
distance.
3. Pushing down further on the inching pedal will
disengage the transmission completely and apply
the service brakes fully to stop and hold the lift
truck. This will provide full engine power for fast
hydraulic lift.
IA3M3011
IA3M3007
IA3M3011
IA3M3009
To Next Page
