Vehicle Systems Disassembly & Assembly
Disassemble And Assemble
Steering Cylinder
Start By :
a. Remove steering cylinder.

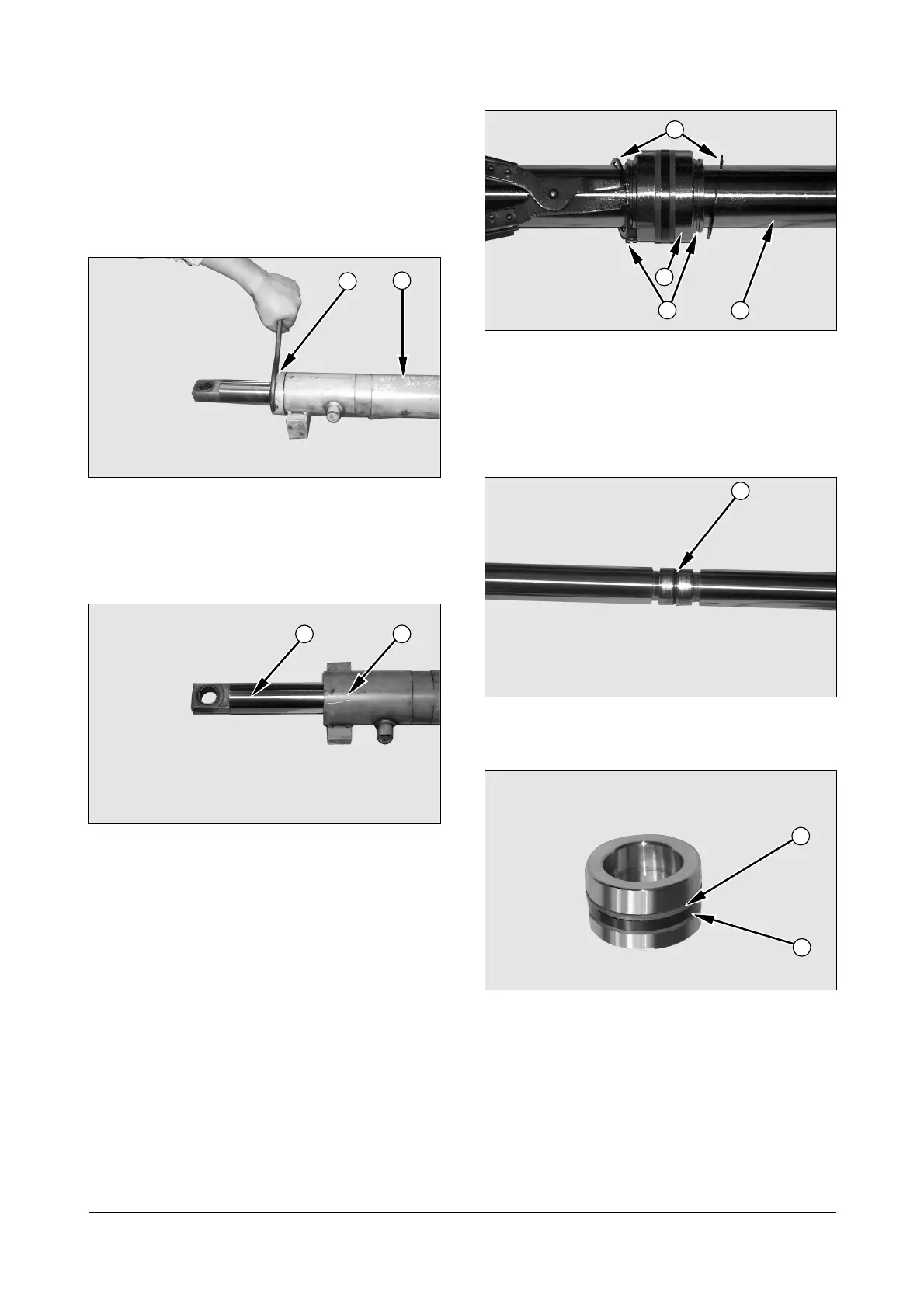

1. Put the steering cylinder in position in a vise.
2. Loosen head (1) from tube (2) with a spanner
wrench.
3. Remove rod assembly (3) from the tube (2).
4. Remove retaining ring (5) with a plier and ring (6)
from each side of piston (7) that holds piston in
position on rod (3).
5. Remove piston (7) from the rod (3).
6. Remove O-ring seal (8) from the rod.
7. Remove seal ring (9) and backup seal (10) from
the piston.
8. Loosen the head in the opposite end of the tube.
25
