Daewoo D50SC-2 Disassembly/Assembly

Vehicle Systems Disassembly & Assembly
Overhead Guard
Remove & Install Overhead Guard

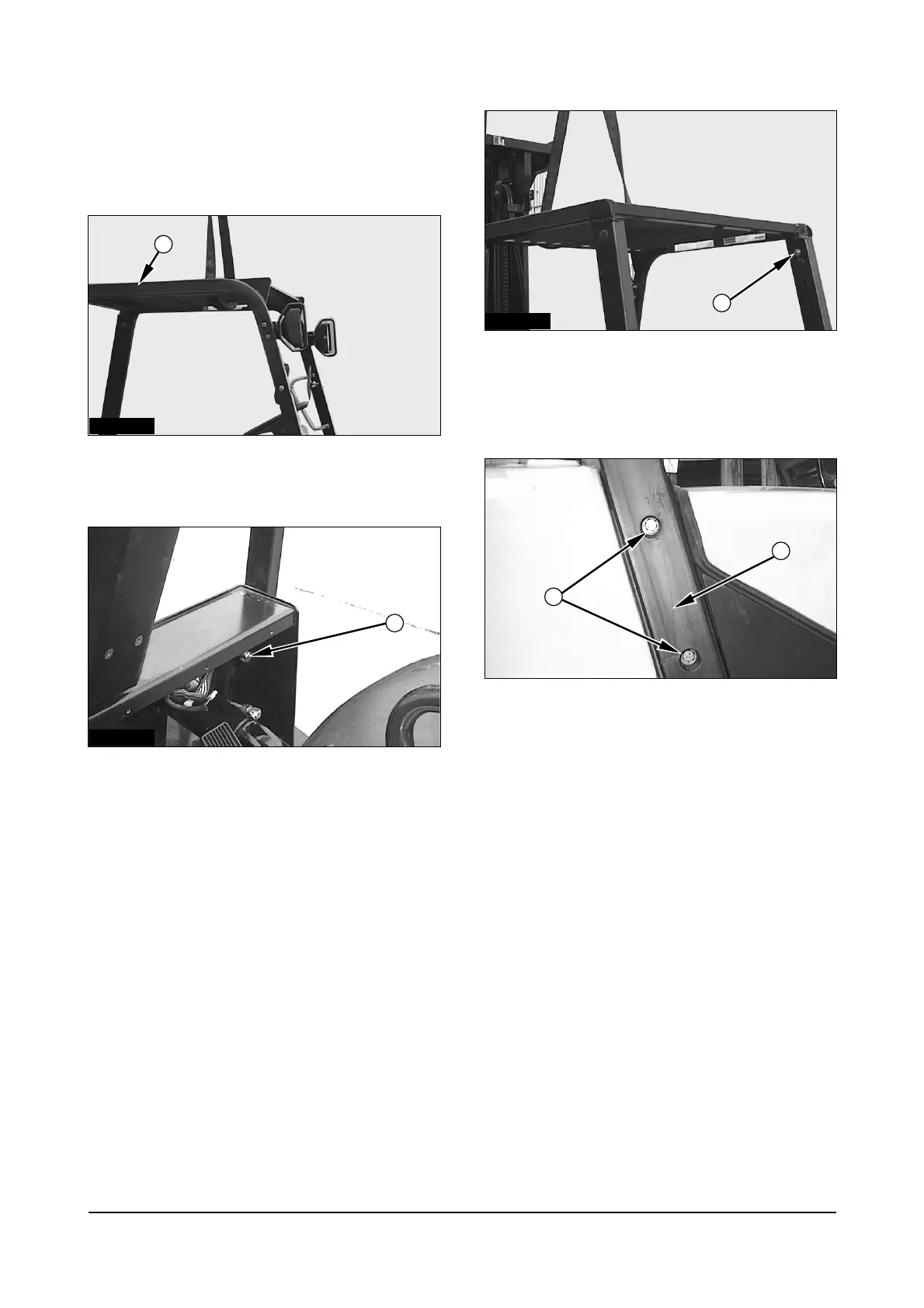

1. Support overhead guard (1) with lifting straps and
a hoist.
2. Remove the washers, nuts, and two bolts (2).
3. Remove the washers, nuts, and two bolts (3).
4. Remove front overhead guard (1), Front overhead
guard (1) weighs 30 kg (66 lb).
5. Remove the washers, nuts, and four bolts (4).
6. Remove rear Leg (5).
7. Install front overhead guard (1) and rear leg (5) in
the reverse order of removal.
6
IDCD055P
IDCD056P
IDCD057P
IDCD058P
1
3
4
5
2
