Vehicle Systems Disassembly & Assembly

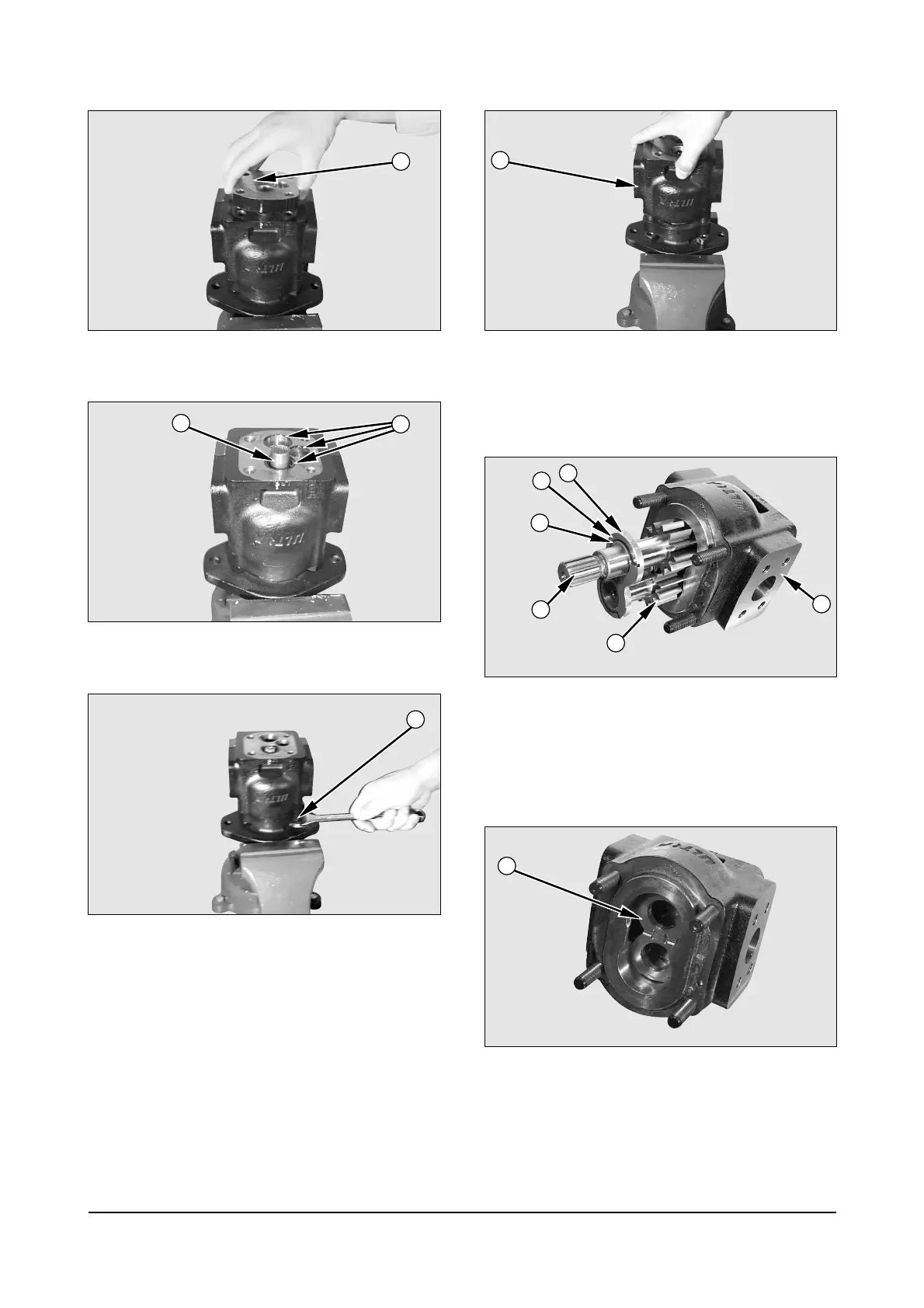

9. Remove the spacer (10).
10. Remove splined coupling (11) and O-rings (12).
11. Remove four nuts (13) with a spanner.
12. Remove the body (14). If necessary insert two
screwdrivers in the recesses and lever upwards.
Take care not to damage precision machined
surfaces.
13. Remove balance plate (15), seal (16), backup
seal (17), drive gear (18) and idler gear (19) from
the body (14). Take great care not to strike the
shafts against hard surfaces which could damage
the gear teeth.
14. Remove the balance plate (20) and seals from
the body.
35
IACD245P
IACD246P
IACD247P
IACD248P
IACD249P
IACD250P
