Vehicle Systems Disassembly & Assembly

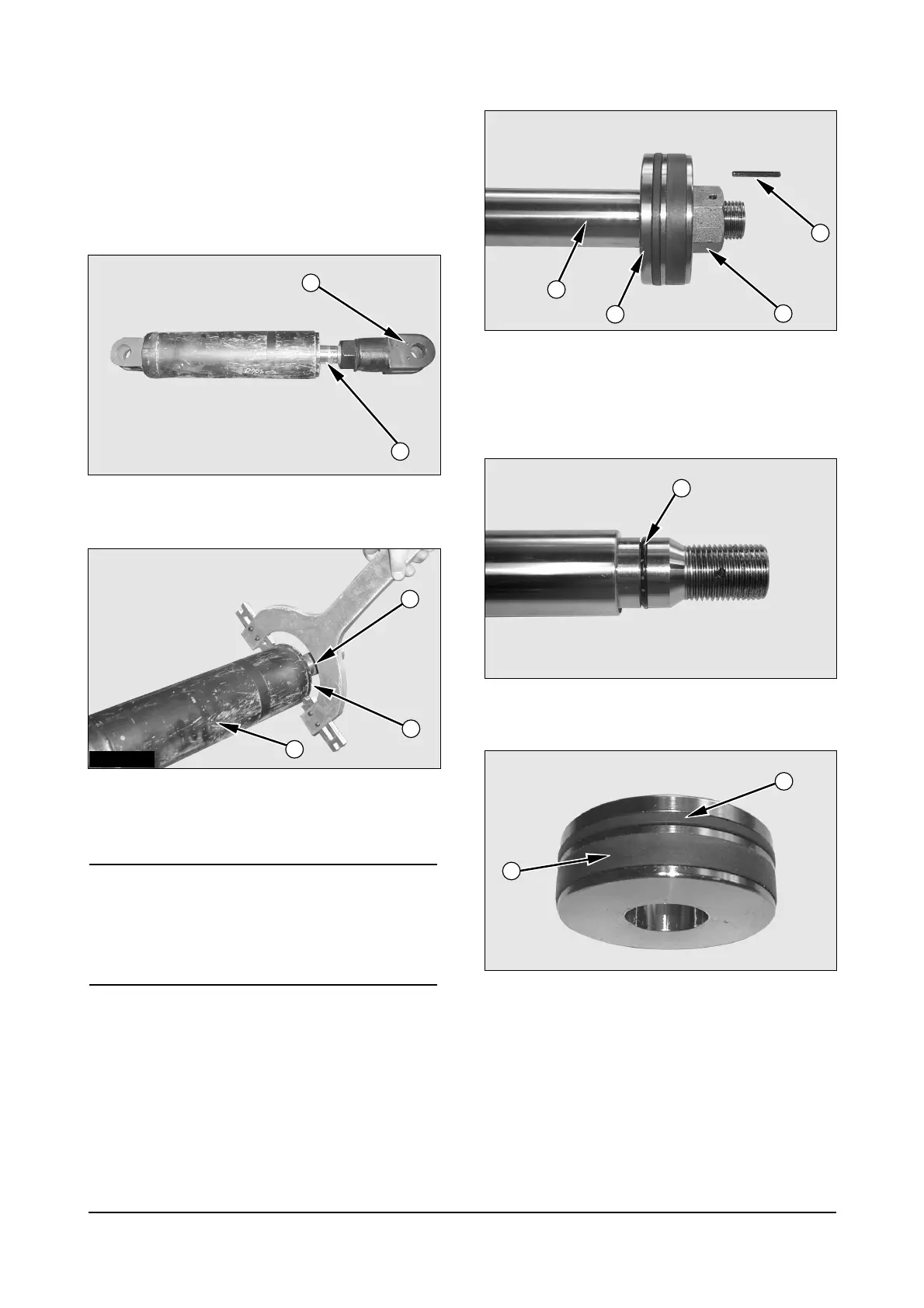

Disassemble & Assemble Tilt
Cylinders
Start By:
a. Remove tilt cylinder.
1. Remove eye (1) from the rod assembly (4).
2. Remove rod cover (2) from the cylinder tube (3)
using a spanner wrench.
NOTICE
Use extra care not to damage the highly finished
surface of the cylinder rod and the bore of the clylinder
tube during disassembly and assembly of the tilt
cylinder.
3. Remove rod assembly (4) from the cylinder body.
4. Remove pin (5) inside hole and nut (6) from the
cylinder rod (4).
5. Remove piston (7) from the cylinder rod.
6. Remove O-ring seal (8) from the cylinder rod.
7. Remove wear ring (9) and slipper seal (10) from
the piston.
8
ICCD002P
ICCD003P
ICCD005P
ICCD006P
ICCD004P
