Cover

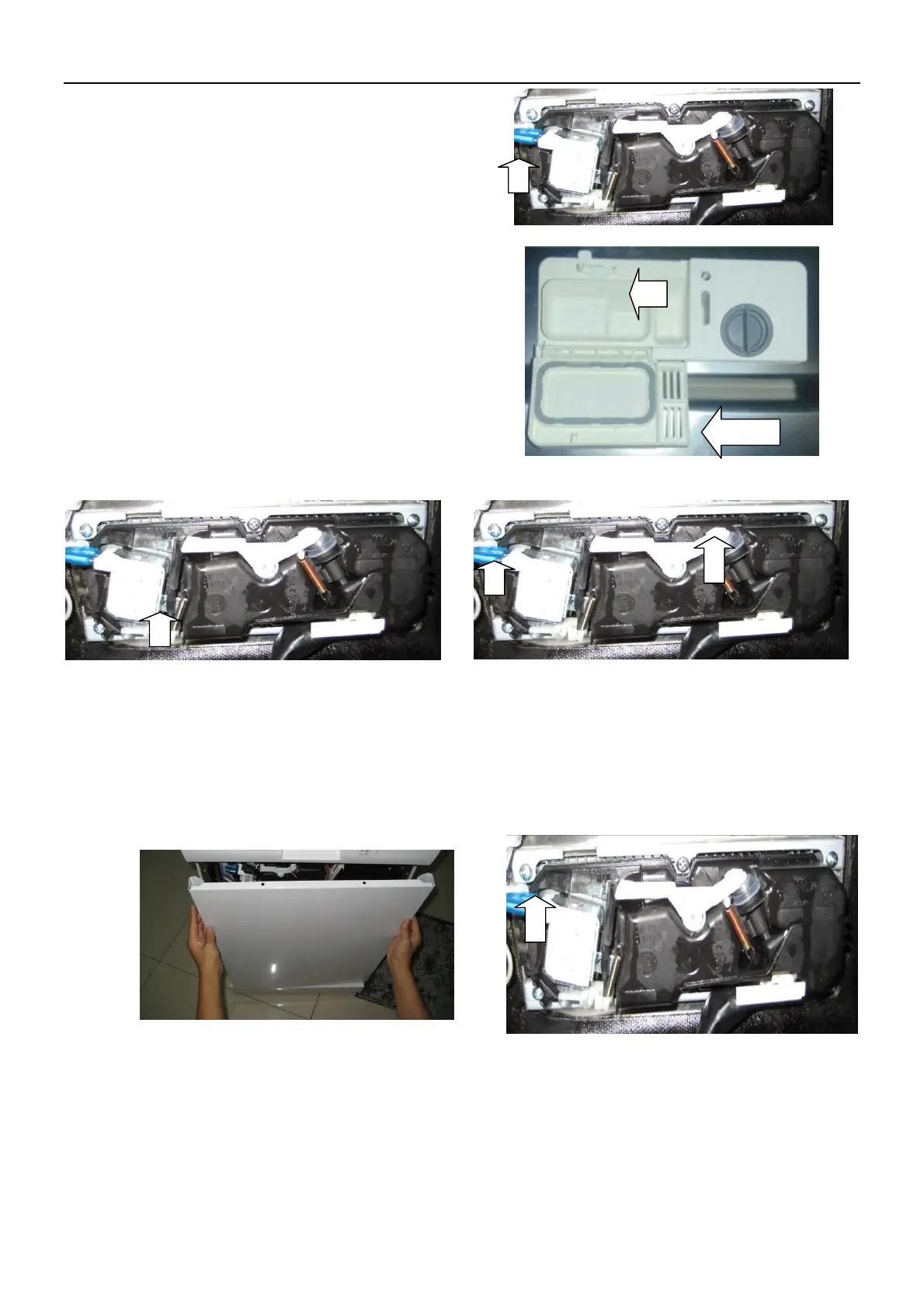

The first time the dispenser is activated (1),
the lever slides up the right-hand path of the
connecting rod.
This action moves the cover catch (2) and releases
the detergent cover.
When deactivated (3), the lever resets to rest under the
notch in the center of the connecting rod.
When activated for the second time in a cycle, the
lever lifts the connecting rod by the notch, lifting the rinse
dispenser plunger (4) and releasing the rinse agent. When
deactivated, the lever returns to its original starting
position.
The magnetic sensor (5) are connected to rinse aid
warning light at control panel by wires. When the indicator
lights up, it should add more rinse aid.
Removal and Replacement
1. Remove the out door insulation.
2. Disconnect the 4 terminals from the dispenser.
3. Remove the 3 screws and bottom mounting bracket.
4
4
