z Install the lower seat of valve spring
to the valve guide of cylinder head.
z After putting inner, outer springs,
install the spring upper seat on it.
z Assemble the valve by inserting the
valve cotter pressing the valve
spring with a special tool.
z After installing the valve, check
whether the valve is correctly
installed or not tapping it lightly with
urethane hammer.

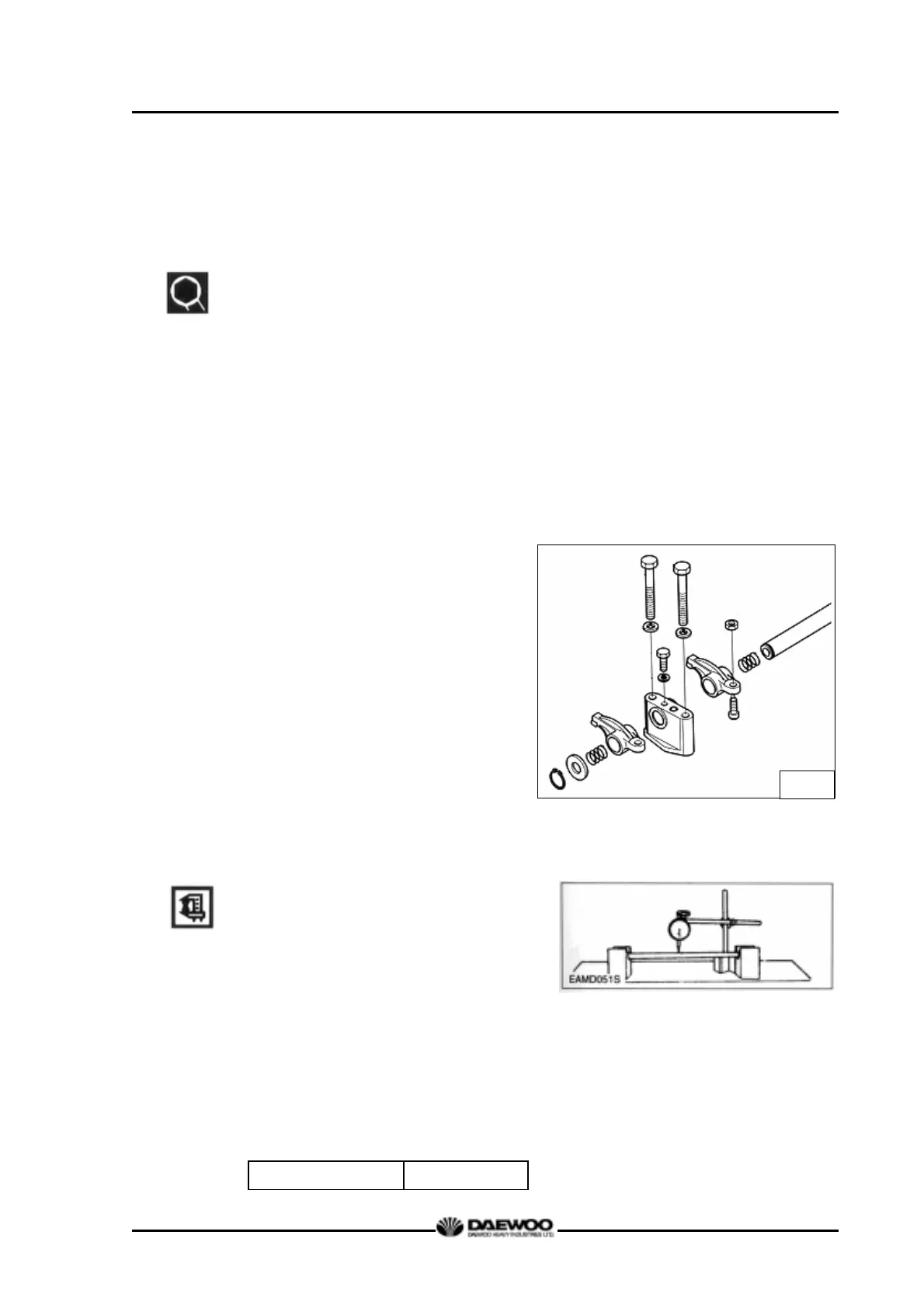

3.2.3. Rocker arm assembly
(1) Disassembly
1) Disassemble the snap rings that are
located at both ends of rocker arm
shaft by a plier.
2) Disassemble in the order of washer,
rocker arm bracket, rocker arm spring,
rocker arm.
(2) Inspection of rocker arm assembly
1) Rocker arm shaft
z Rocker arm shaft run-out
Place the rocker arm shaft on two V
blocks and inspect the shaft for bend
using a dial gauge.
If the amount of this run-out is small,
press the shaft with a bench press to
correct the run-out Replace the shaft
if the measured value exceeds the
limit.
Limit
0.2 mm
G1056
