D1146/D1146TI/DE08TIS
MAINTENANCE MANUAL
55
Printed in Jan. 2001 PS-MMA0415-E1A

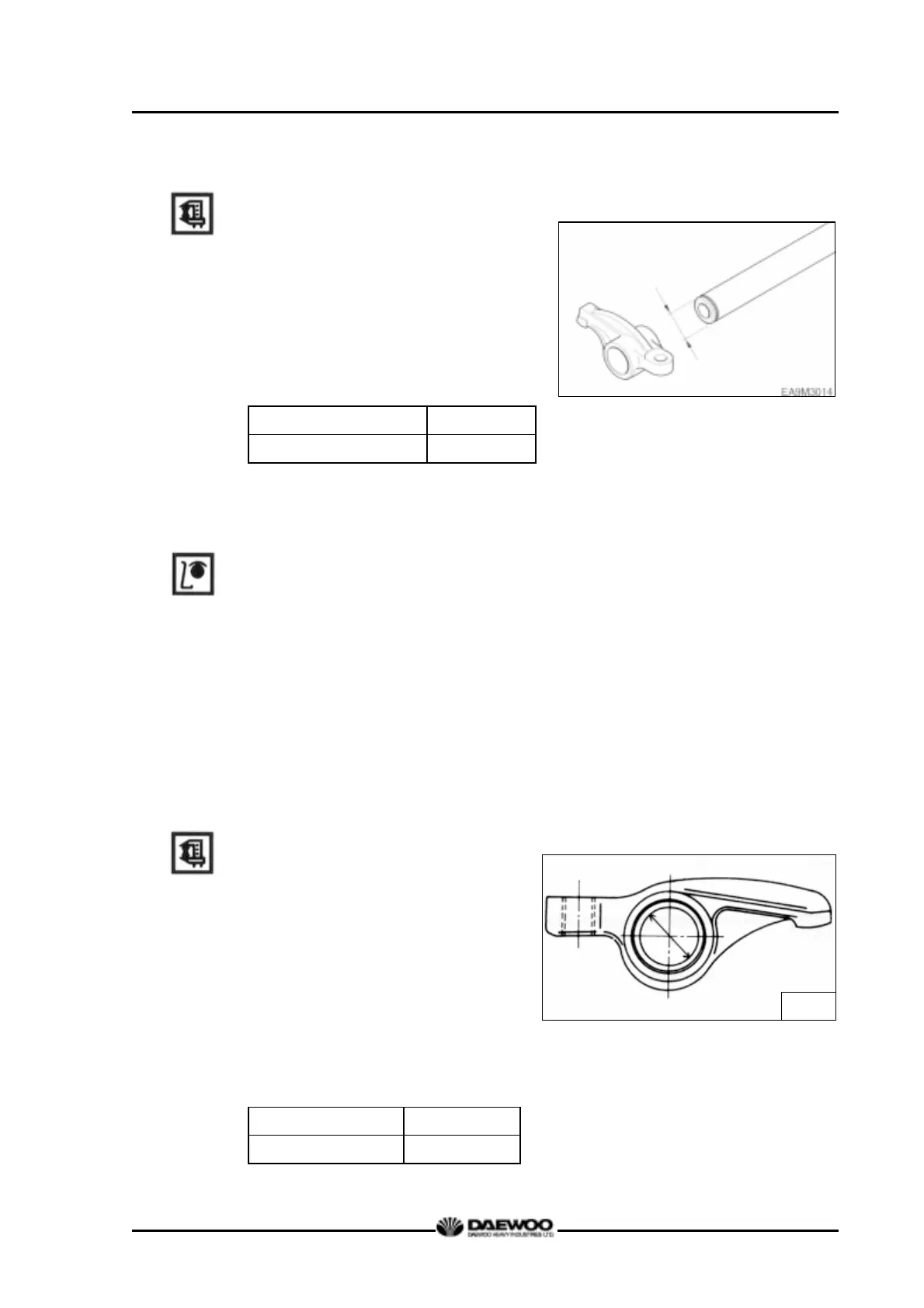

z Rocker arm shaft diameter
With an outside micrometer, measure
the rocker arm shaft diameter at the
point where the rocker arms have
been installed.
Replace the rocker arm if the amount
of wear is beyond the specified limit.
Standard Limit
φ23.978 ∼ φ23.959 mm φ23.75 mm
2) Rocker arm
z Visual check
Visually check the face of the
rocker arm in contact with the valve
stem end for scores and step wear.
If the wear is small, correct it with
an oil stone or grinding paper of
fine grain size. Rocker arm with a
considerable amount of step wear
should be replaced.
z Rocker arm bushing diameter
Measure the inside diameter of the
rocker arm bushing with an inside
micrometer or vernier calipers, and
compare the measured values with
the rocker arm shaft diameter. If the
clearance exceeds the limit, replace
either bushing or shaft, whichever
worn more.
Standard Limit
0.020 ∼ 0.093 mm
0.3 mm or less
M1087
