(1) First stage : Coat the bolts with engine oil.
(2) Second stage : Tighten 1 ～2 threads with hands.
(3) Third stage : Tighten at about 6 kg.m with a wrench.
(4) Fourth stage : Tighten at rotating angle method 180° with a wrench.
(5) Fifth stage
: Finally, tighten at rotating angle method 150° with a torque
wrench .
However, all bolts are tightened
simultaneously by above steps.
z Coat the push rod with engine oil and
insert it into the push rod hole.

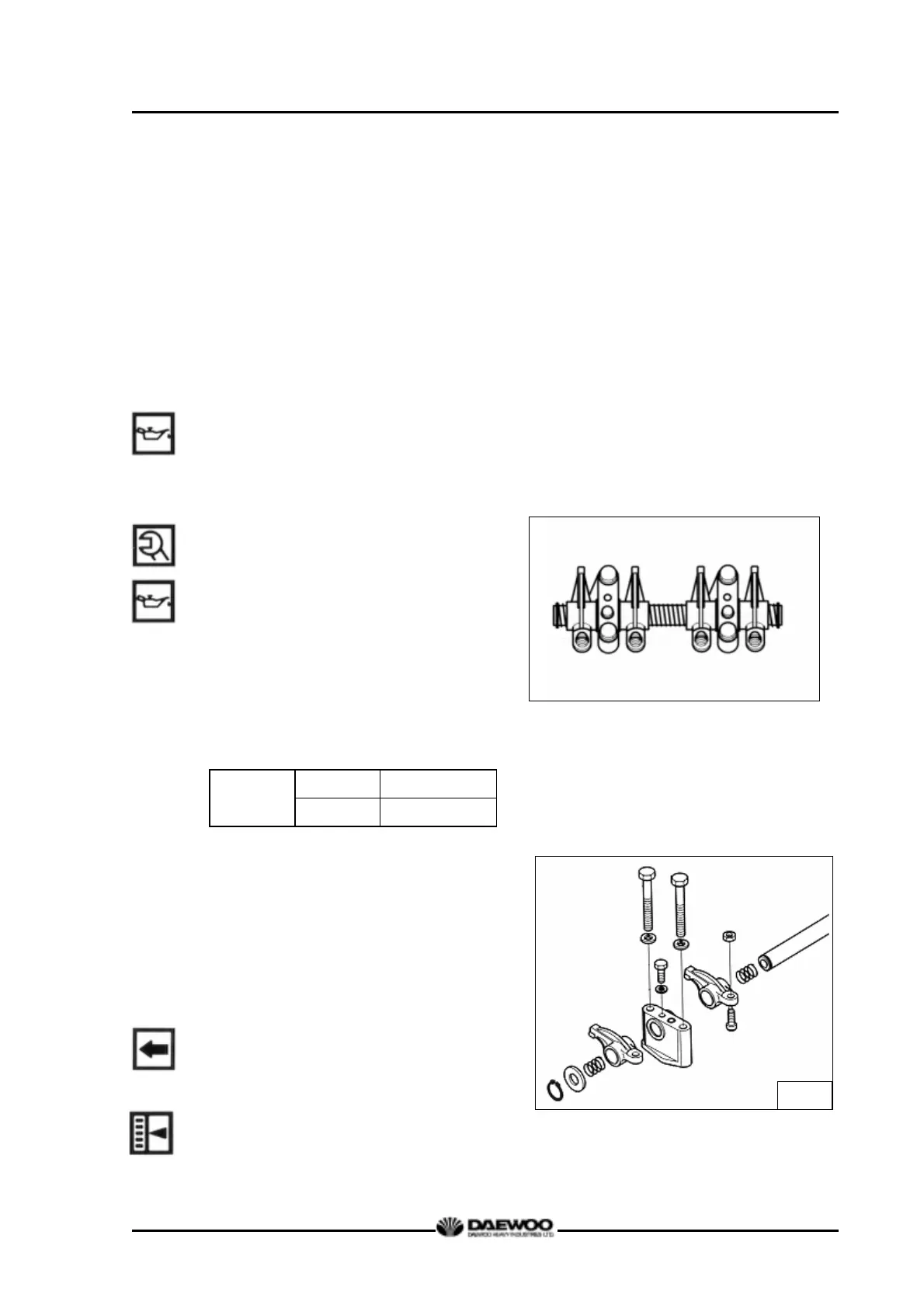

3.3.28. Rocker arm assembly
z Apply lubricating oil to the rocker arm
bush and shaft, and assemble the
intermediate bracket with the rocker
arm (rocker arm assembly) on the
cylinder block using fixing bolts. In
tightening the bolts, it must be done at
the specified value using zigzag
method.
M10x1.5 4.4 kg.m
Torque
M12x1.5 8.0 kg.m
z Semi-install valve clearance adjusting
bolts onto the rocker arm.
z Install the spring, rocker arm, bracket,
rocker arm, spring, washer, and snap
ring in the described sequence.
z Install the rocker arm and bracket in the
same direction.
z Adjust the valve clearance as
following guide.
G1056
G1088
