D1146/D1146TI/DE08TIS
MAINTENANCE MANUAL
88
Printed in Jan. 2001 PS-MMA0415-E1A

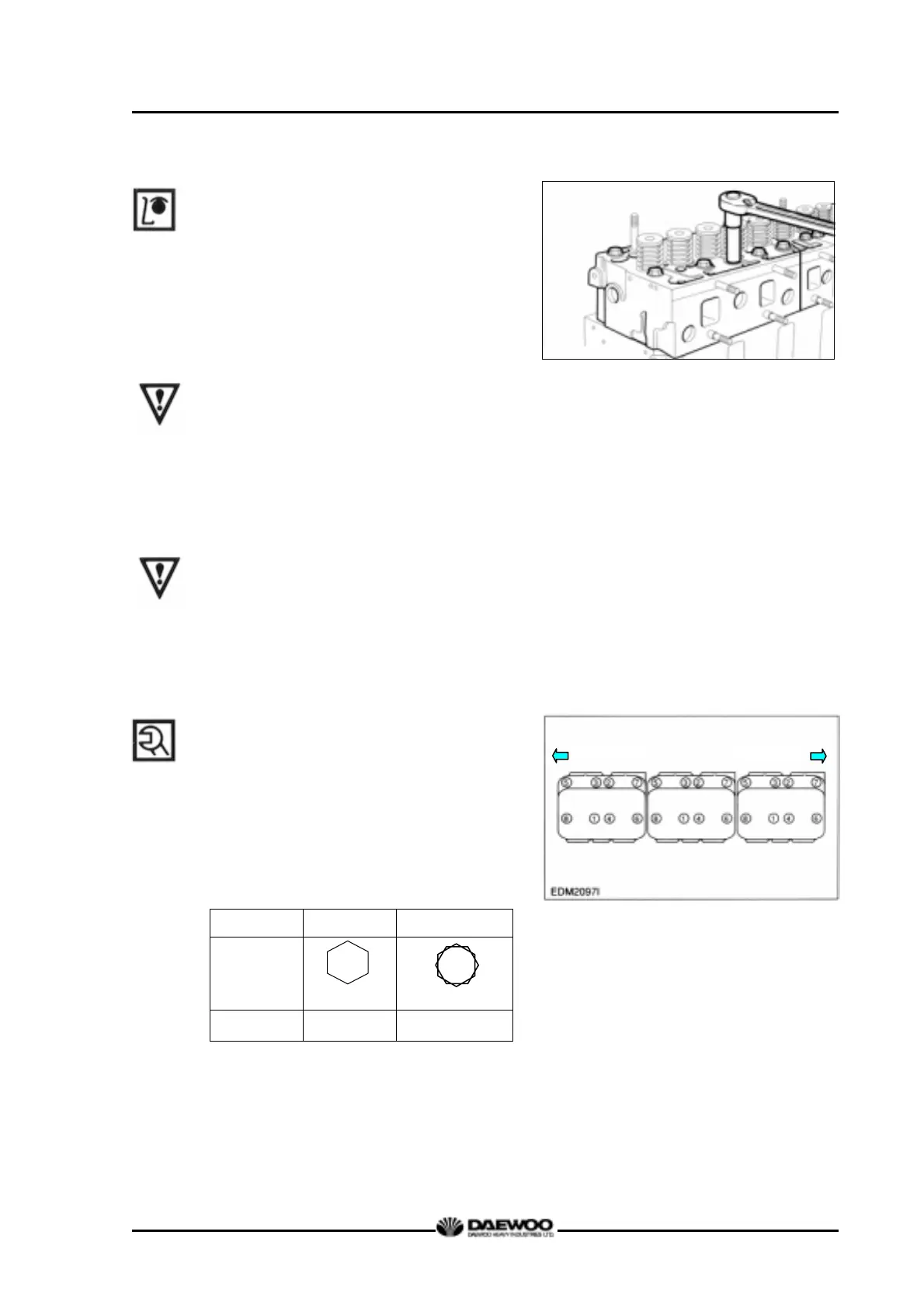

z Check the inside of combustion
chamber for foreign substances, and
carefully mount the cylinder head
assembly in the block by aligning the
dowel pin with the dowel pin hole.
CAUTION :
Be careful not to damage the cylinder
head gasket. If the dowel pin is not in
alignment, lift the cylinder head again
and then remount it.
CAUTION :
After tightening the cylinder head bolts,
even at disassembling, the cylinder
head gasket should be changed a new
one.
z Coat the cylinder head bolts with
engine oil, and tighten in proper
sequence to the specified torque
according to bolt tightening order. (refer
to the figure).
<Cylinder Head Bolts>
Type 1 Type 2
Specification
M14×1.5×146
M14×1.5×146
Torque
24.5 kg.m
6 kg.m +180°+150°
(Angle torque)
z However, before tightening bolts, the
side parallel degree between cylinder
heads should be adjusted.
<Tightening order of bolts by steps>
TY
12.9T
TY
10.9T
G1089
Front side
Rear side
