D1146/D1146TI/DE08TIS
MAINTENANCE MANUAL
87
Printed in Jan. 2001 PS-MMA0415-E1A

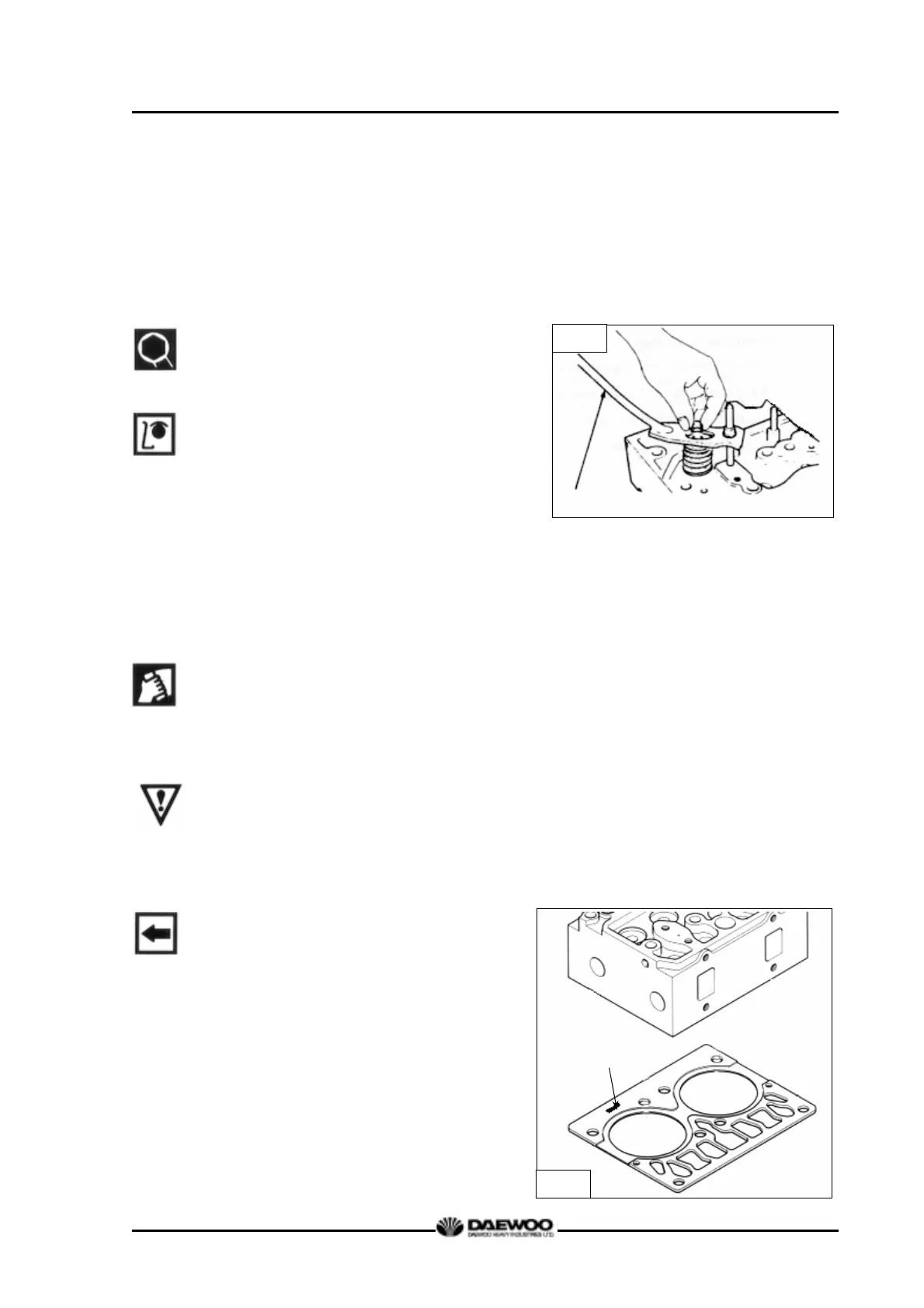

valve guide.
z After installing valve springs and spring
retainer, press the retainer with a jig, then
install the cotter pin.
z Tap the valve stem lightly with a rubber
hammer to check that the valve is
assembled correctly.
3.3.27. Cylinder head
z Blow the bolt holes of cylinder block with
a compressed air and remove the
foreign matter.
z Clean the head gasket contact
surface
thoroughly.
CAUTION :
However, be careful for the foreign
material not to enter into the
combustion chamber.
z Assemble the new head gasket by
aligning the holes with dowel pins of
cylinder block with “TOP” mark facing
upward.
G1102
Compress the spring
G1103
TOP
