(c) Adjusting governor
9.7
7.1
9.2=R1
R2+1.5
3.0=R4
5.1=R2
(R2-3.6)
±0.5
(250)
±25
450
±15
740
±15
1100
±10
0.5
±0.1
(870)
(1185)
250
B
D
A
C
E
BOOST COMPENSATOR STROKE:2.6
±0.1
mm

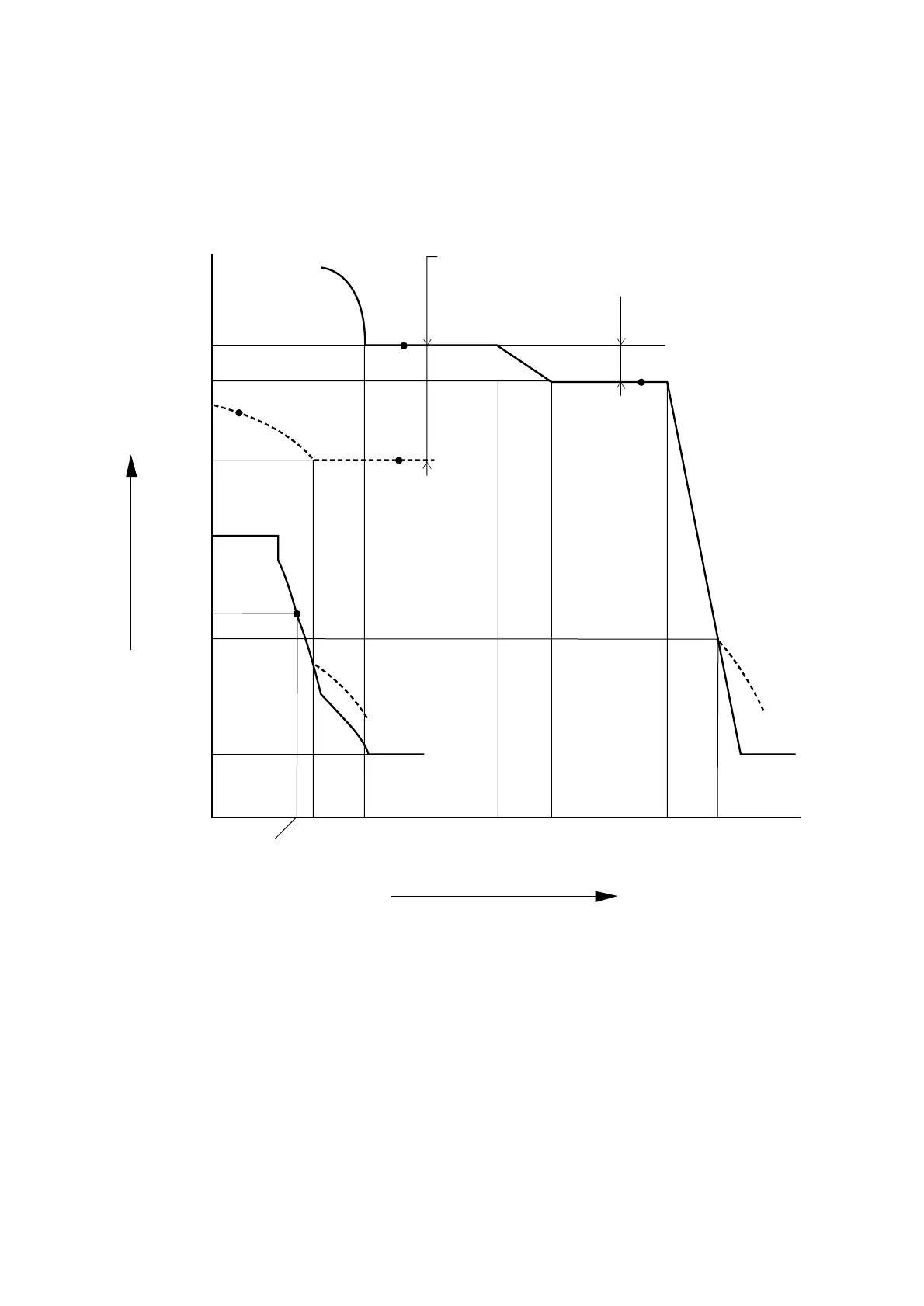

Rack position (mm)
Injection pump speed (rpm)
EQM4017I
