Air Conditioner Service Manual

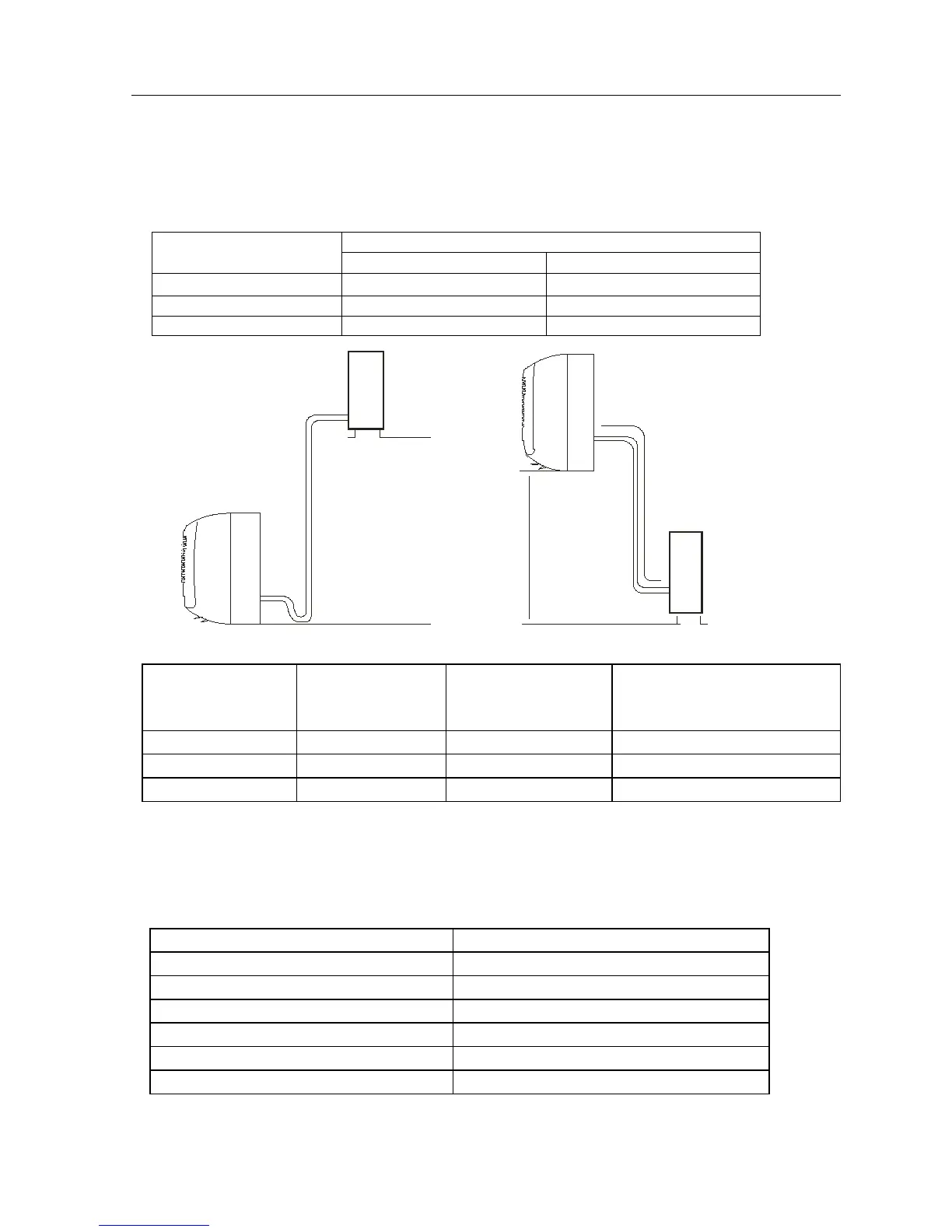

9. Installation manual
9.1 Information for installation
Connecting pipe
Model
Pipe size(Inch)
Liquid
Gas
DSC-1245FL
1/4’’
1/2
DSC-1285FL
1/4
1/2
DSC-1285FLH
1/4
1/2
Mode Standard length: m
Refrigerant piping
Max. length: m
A
Additional refrigerant
Calculation: ×g=20g/m(A-5m)
DSC-1245FL
3.5 15 20g/m
DSC-1285FL
3.5 15 20g/m
DSC-1285FLH
3.5 15 20g/m
Connecting cables
The power cord should be selected according to the following specifications sheet.
Appliance Amps Wire Size
5 AWG21/0.75 mm
2
10 AWG18/1.0 mm
2
13 AWG15 /1. 5 mm
2
18 AWG14/1.6 mm
2
25 AWG12/2.0 mm
2
30 AWG10/2.5 mm
2
Outdoor unit
Indoor unit
Pipe length is
15 meters Max.
be less than 5m
Height should
Outdoor unit
Indoor unit
Pipe length is
15 meter s Max.
be less than 5m
Height should
