- 12 -
System Connections
Connecting to a PC

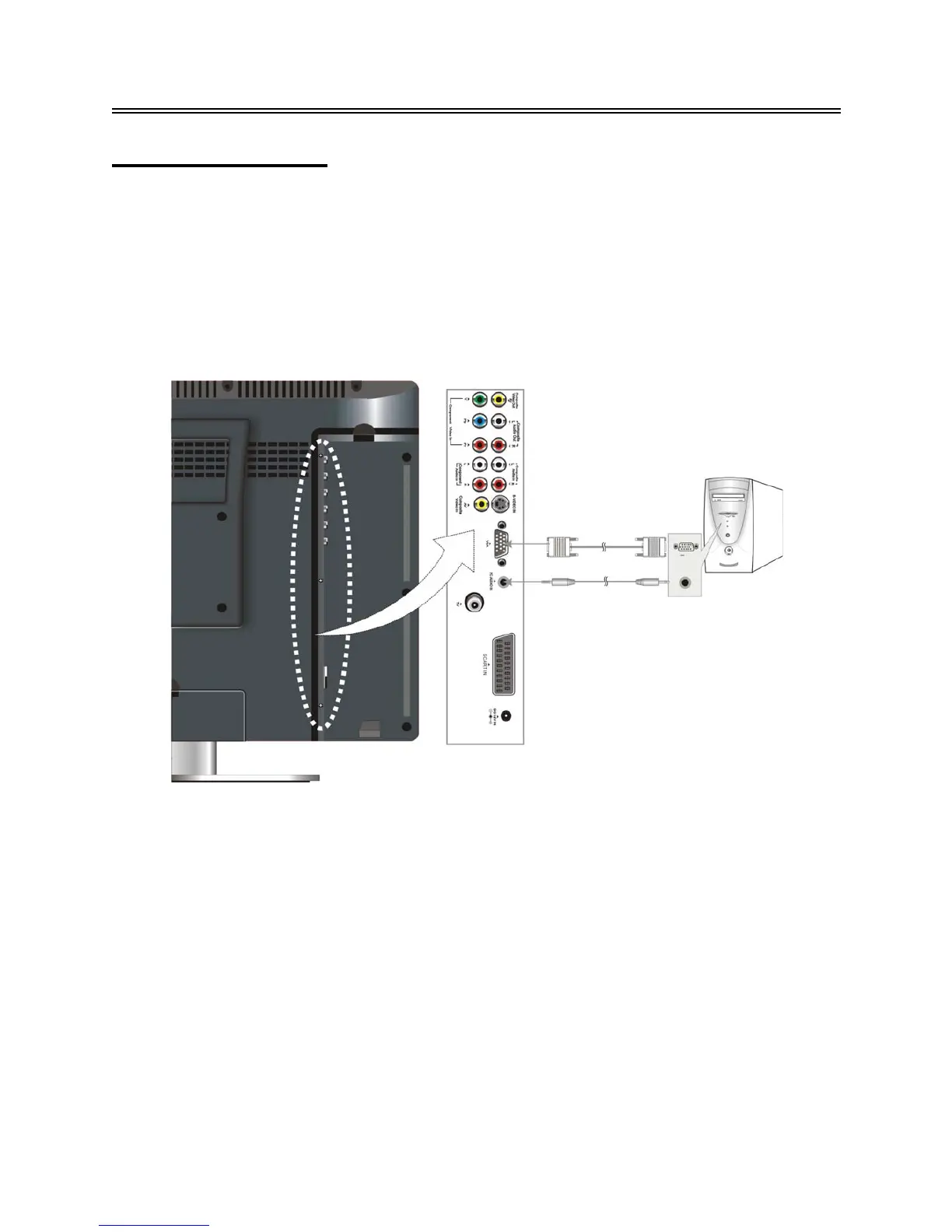

Follow the steps and figure below to connect a PC to the unit.
1. Connect one end of the VGA cable to the VGA input jack on the rear panel of the unit and the
other end to the PC.
2. Connect one end of the audio cable to the PC audio input jack on the rear panel of the unit and
the other end to the PC audio output jack.
3. Set the PC’s resolution to 1440 x 900 or 1024 x 768; and the fresh frequency to 60Hz.
After connection, turn on the unit and the PC and then press the SOURCE button to select VGA
mode.
