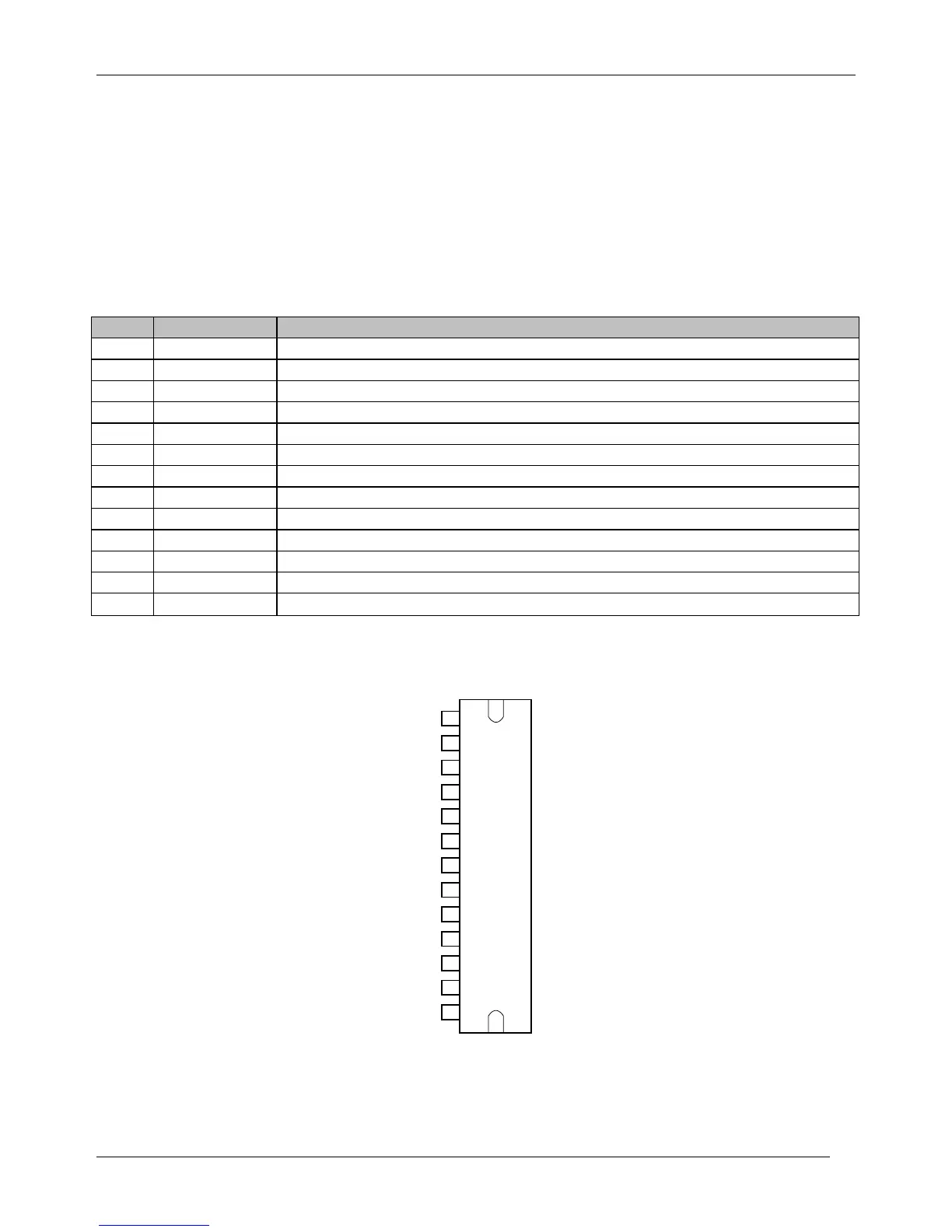

4.2.1 FEATURES
5W x 2 Channel(Vcc=9V, R
L=8Ω)•
•
•
•
Standby function
Mute function
Thermal protection circuit
Pin description
Pin Symbol Description
1 R.F.
Rin
GND
Lin
STB
Mute
Vcc
Lo(+)
Lo(-)
GND
Ro(-)
Ro(+)
N.C.
Ripple Filter
2 Right input
3 Ground
4 Left Input
5 Standby
6 Mute
7 Supply Voltage
8 Positive Left output
9 Negative Left Output
10 Ground
11 Negative Right Output
12
13
Positive Right Output
Not Connected
1
2
3
4
5
6
7
8
9
10
11
12
13
R.F.
Rin
GND
Lin
STB
Mute
Vcc
Lo(+)
Lo(-)
GND
Ro(-)
Ro(+)
N.C.
MBK932
LA42032
