INSTALLATION
Electrical Connection
• This unit is designed to operate from an adequate supply mentioned at the
rating label sticked to the rear of it.
• In case of 3-core cord: The power cord plug must be connected to an earthed
3-pin power point within reach of the power cord.
• In case of 2 conductor power cord: Connect the grounding wire to a water fau-
cet etc. Make sure that the power cord is unplugged during ground work.
• Do not connect the grounding wire end to a gas tube.
• If the power cord is damaged, it should be replaced by a repair shop appointed
by the manufacturer, because special purpose tools are required.
Connection of Hose
• Attach the water intake hose to the
Water inlet located at the left-hand
side of the con-trol panel. Press fit the
other end of the hose to either a hot
or cold water tap as required. (Fig. 1).
• Attach the drain hose to the drain out-
let at the rear of the base and secure
with the clamp provided.

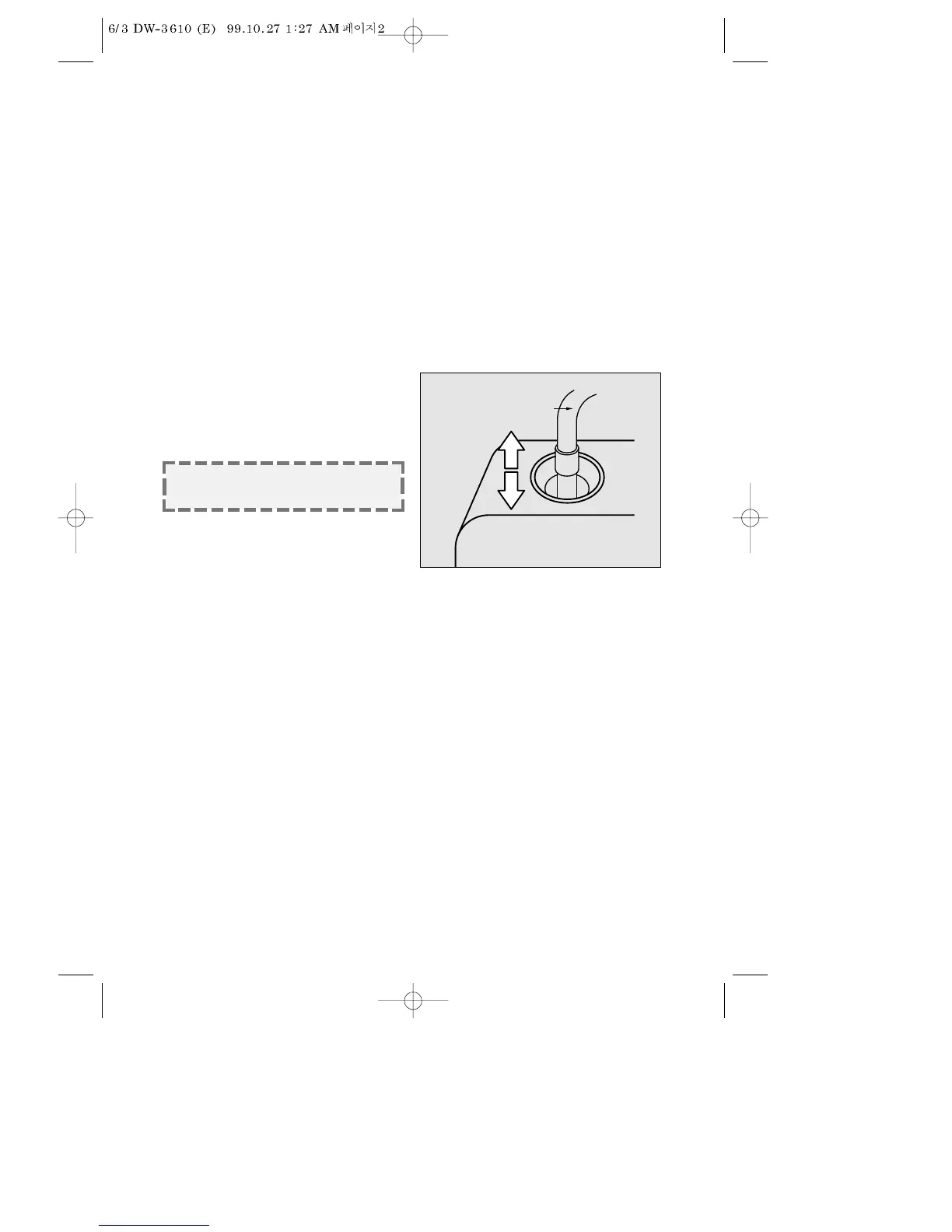

• The drain hose should be laid flat on the ground. Water flow will be restricted
if any portion of the drain hose is raised 20 cm (8 in) from the ground.
• The opening must not be obstructed by carpeting when the washing machine
is installed on a carpeted floor.
