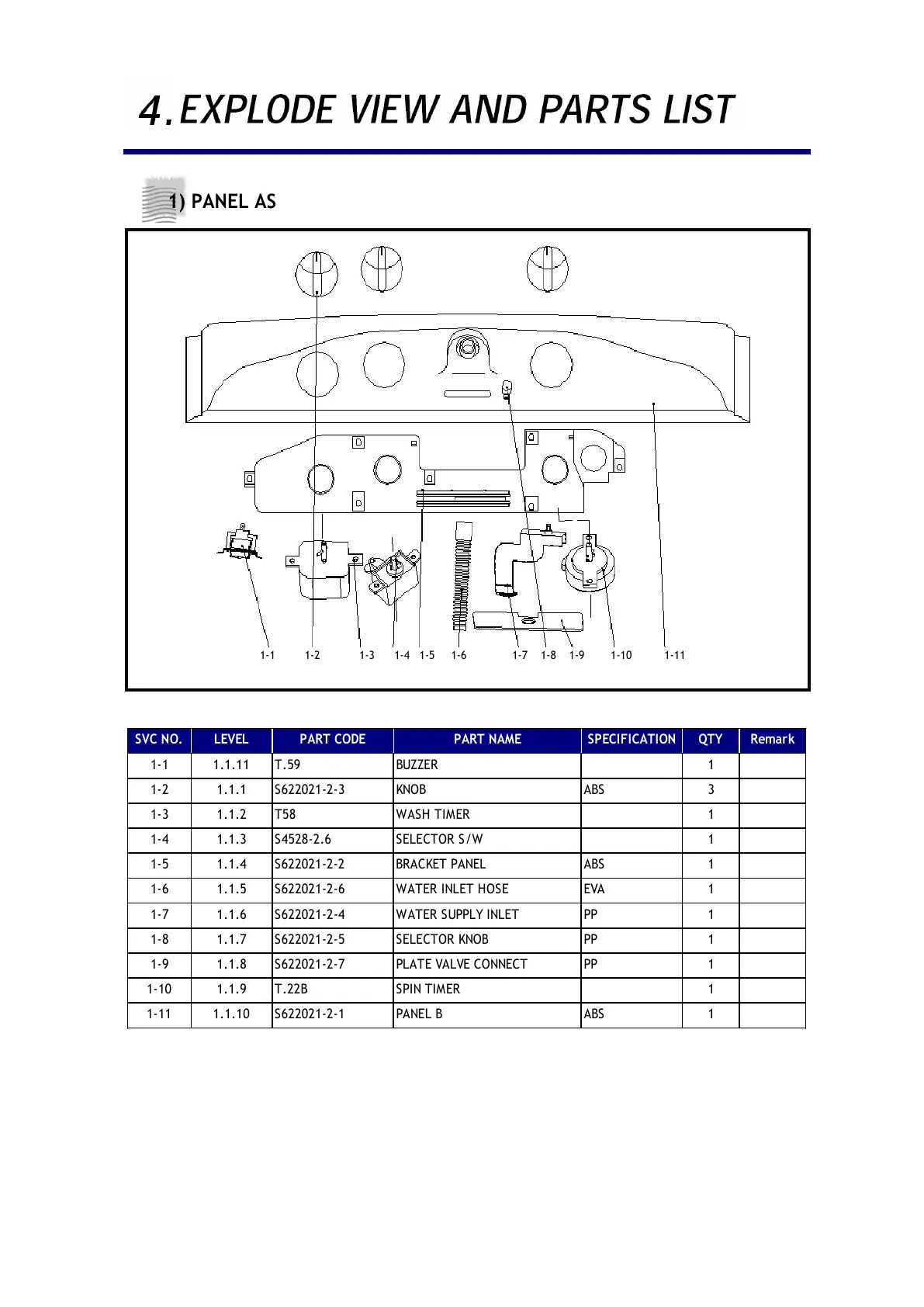

1) PANEL AS
SVC NO. LEVEL PART CODE PART NAME SPECIFICATION QTY Remark
1-1 1.1.11 T.59 BUZZER 1
1-2 1.1.1 S622021-2-3 KNOB ABS 3
1-3 1.1.2 T58 WASH TIMER 1
1-4 1.1.3 S4528-2.6 SELECTOR S/W 1
1-5 1.1.4 S622021-2-2 BRACKET PANEL ABS 1
1-6 1.1.5 S622021-2-6 WATER INLET HOSE EVA 1
1-7 1.1.6 S622021-2-4 WATER SUPPLY INLET PP 1
1-8 1.1.7 S622021-2-5 SELECTOR KNOB PP 1
1-9 1.1.8 S622021-2-7 PLATE VALVE CONNECT PP 1
1-10 1.1.9 T.22B SPIN TIMER 1
1-11 1.1.10 S622021-2-1 PANEL B ABS 1
1-1 1-2 1-3 1-4 1-5 1-6 1-7 1-8 1-9 1-10 1-11
