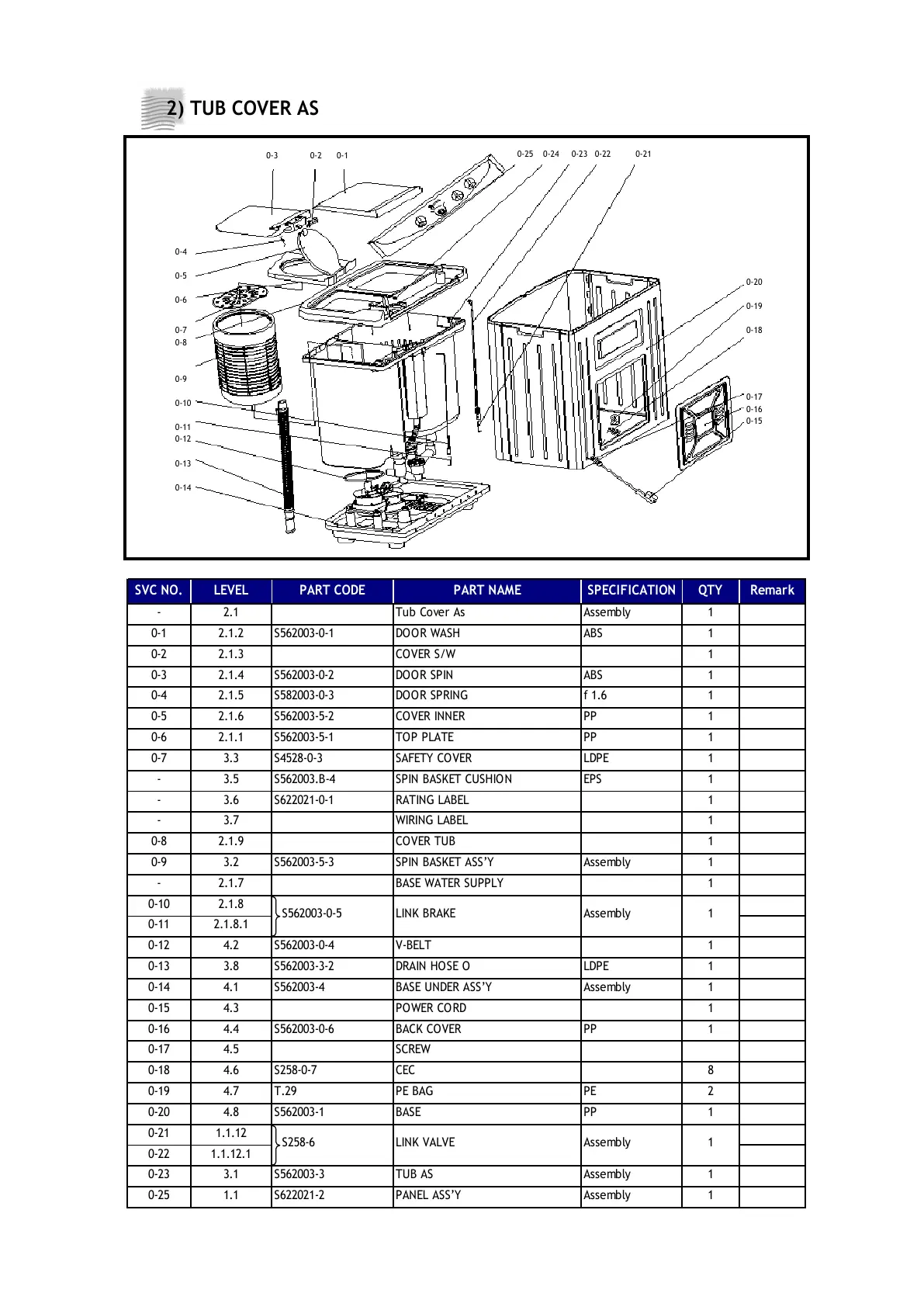

Daewoo DW-X700C - Page 13

2) TUB COVER AS
0-3 0-2 0-1
0-25 0-24 0-23 0-22 0-21
0-4
0-5
0-6
0-7
0-8
0-9
0-10
0-11
0-12
0-13
0-14
0-20
0-19
0-18
0-17
0-16
0-15
SVC NO. LEVEL PART CODE PART NAME SPECIFICATION QTY Remark
-2.1 Tub Cover As Assembly 1
0-1 2.1.2 S562003-0-1 DOOR WASH ABS 1
0-2 2.1.3 CO VER S/W 1
0-3 2.1.4 S562003-0-2 DOO R SPIN ABS 1
0-4 2.1.5 S582003-0-3 DOO R SPRING f 1.6 1
0-5 2.1.6 S562003-5-2 COVER INNER PP 1
0-6 2.1.1 S562003-5-1 TOP PLATE PP 1
0-7 3.3 S4528-0-3 SAFETY COVER LDPE 1
- 3.5 S562003.B-4 SPIN BASKET CUSHION EPS 1
- 3.6 S622021-0-1 RATING LABEL 1
- 3.7 WIRING LABEL 1
0-8 2.1.9 CO VER TUB 1
0-9 3.2 S562003-5-3 SPIN BASKET ASS’Y Assembly 1
- 2.1.7 BASE WATER SUPPLY 1
0-10 2.1.8
0-11 2.1.8.1
0-12 4.2 S562003-0-4 V-BELT 1
0-13 3.8 S562003-3-2 DRAIN HO SE O LDPE 1
0-14 4.1 S562003-4 BASE UNDER ASS’Y Assembly 1
0-15 4.3 POWER CO RD 1
0-16 4.4 S562003-0-6 BACK COVER PP 1
0-17 4.5 SCREW
0-18 4.6 S258-0-7 CEC 8
0-19 4.7 T.29 PE BAG PE 2
0-20 4.8 S562003-1 BASE PP 1
0-21 1.1.12
0-22 1.1.12.1
0-23 3.1 S562003-3 TUB AS Assembly 1
0-25 1.1 S622021-2 PANEL ASS’Y Assembly 1
S258-6 LINK VALVE Assembly 1
S562003-0-5 AssemblyLINK BRAKE 1
