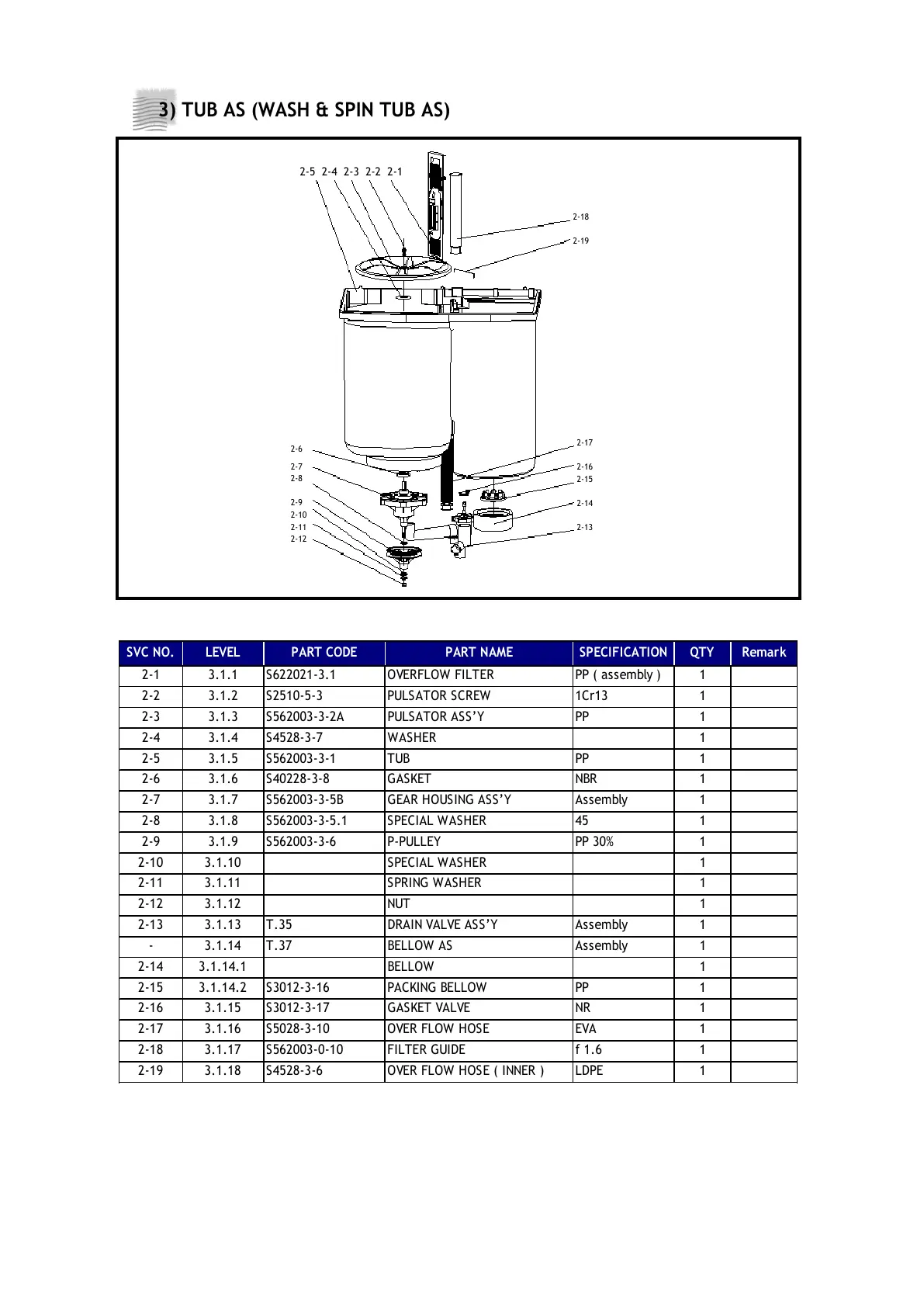

3) TUB AS (WASH & SPIN TUB AS)
SVC NO. LEVEL PART CODE PART NAME SPECIFICATION QTY Remark
2-1 3.1.1 S622021-3.1 OVERFLOW FILTER PP ( assembly ) 1
2-2 3.1.2 S2510-5-3 PULSATOR SCREW 1Cr13 1
2-3 3.1.3 S562003-3-2A PULSATOR ASS’Y PP 1
2-4 3.1.4 S4528-3-7 WASHER 1
2-5 3.1.5 S562003-3-1 TUB PP 1
2-6 3.1.6 S40228-3-8 GASKET NBR 1
2-7 3.1.7 S562003-3-5B GEAR HOUSING ASS’Y Assembly 1
2-8 3.1.8 S562003-3-5.1 SPECIAL WASHER 45 1
2-9 3.1.9 S562003-3-6 P-PULLEY PP 30% 1
2-10 3.1.10 SPECIAL WASHER 1
2-11 3.1.11 SPRING WASHER 1
2-12 3.1.12 NUT 1
2-13 3.1.13 T.35 DRAIN VALVE ASS’Y Assembly 1
- 3.1.14 T.37 BELLOW AS Assembly 1
2-14 3.1.14.1 BELLOW 1
2-15 3.1.14.2 S3012-3-16 PACKING BELLOW PP 1
2-16 3.1.15 S3012-3-17 GASKET VALVE NR 1
2-17 3.1.16 S5028-3-10 OVER FLOW HOSE EVA 1
2-18 3.1.17 S562003-0-10 FILTER GUIDE f 1.6 1
2-19 3.1.18 S4528-3-6 OVER FLOW HOSE ( INNER ) LDPE 1
2-6
2-7
2-8
2-9
2-10
2-11
2-12
2-5 2-4 2-3 2-2 2-1
2-17
2-16
2-15
2-14
2-13
2-18
2-19
