Daewoo DW-X700C - Page 15

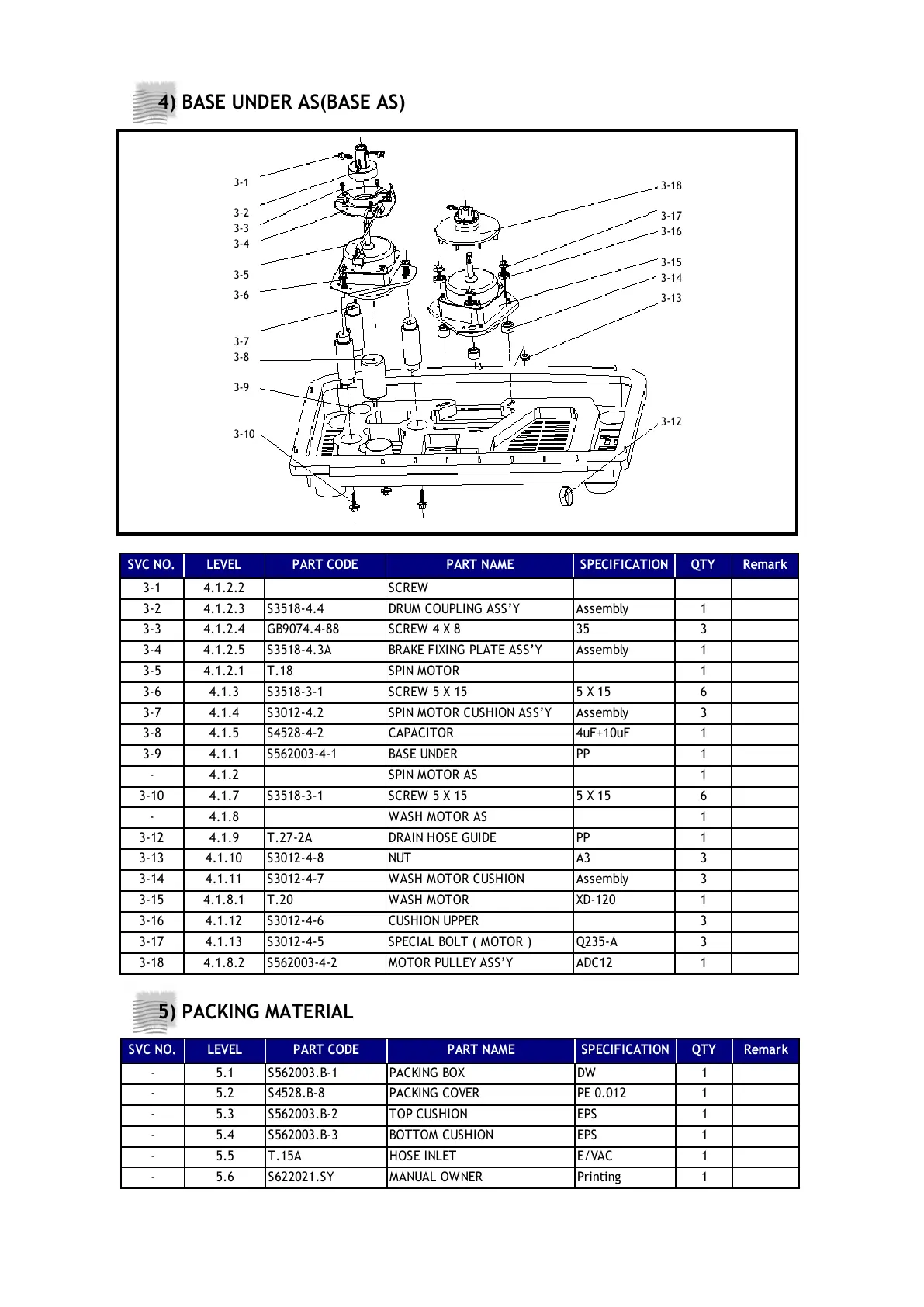

4) BASE UNDER AS(BASE AS)
SVC NO. LEVEL PART CODE PART NAME SPECIFICATION QTY Remark
3-1 4.1.2.2 SCREW
3-2 4.1.2.3 S3518-4.4 DRUM COUPLING ASS’Y Assembly 1
3-3 4.1.2.4 GB9074.4-88 SCREW 4 X 8 35 3
3-4 4.1.2.5 S3518-4.3A BRAKE FIXING PLATE ASS’Y Assembly 1
3-5 4.1.2.1 T.18 SPIN MOTOR 1
3-6 4.1.3 S3518-3-1 SCREW 5 X 15 5 X 15 6
3-7 4.1.4 S3012-4.2 SPIN MOTOR CUSHION ASS’Y Assembly 3
3-8 4.1.5 S4528-4-2 CAPACITOR 4uF+10uF 1
3-9 4.1.1 S562003-4-1 BASE UNDER PP 1
- 4.1.2 SPIN MOTOR AS 1
3-10 4.1.7 S3518-3-1 SCREW 5 X 15 5 X 15 6
- 4.1.8 WASH MOTOR AS 1
3-12 4.1.9 T.27-2A DRAIN HOSE GUIDE PP 1
3-13 4.1.10 S3012-4-8 NUT A3 3
3-14 4.1.11 S3012-4-7 WASH MOTOR CUSHION Assembly 3
3-15 4.1.8.1 T.20 WASH MOTOR XD-120 1
3-16 4.1.12 S3012-4-6 CUSHION UPPER 3
3-17 4.1.13 S3012-4-5 SPECIAL BOLT ( MOTOR ) Q235-A 3
3-18 4.1.8.2 S562003-4-2 MOTOR PULLEY ASS’Y ADC12 1
5) PACKING MATERIAL
SVC NO. LEVEL PART CODE PART NAME SPECIFICATION QTY Remark
- 5.1 S562003.B-1 PACKING BOX DW 1
- 5.2 S4528.B-8 PACKING COVER PE 0.012 1
- 5.3 S562003.B-2 TOP CUSHION EPS 1
- 5.4 S562003.B-3 BOTTOM CUSHION EPS 1
-5.5T.15A HOSE INLET E/VAC 1
- 5.6 S622021.SY MANUAL OWNER Printing 1
3-1
3-2
3-3
3-4
3-5
3-6
3-7
3-8
3-9
3-10
3-18
3-17
3-16
3-15
3-14
3-13
3-12
