No. PARTS NAME PARTS CODE DESCRIPTION Q’TY REMARK
D01 HANDLE CAP 3612608300 ABS 1 Luxury
D02 CASE HANDLE 3611139400 ABS 1 Luxury
SCREW TAPPING 7121301208 T2S PAN 3x12 SUS 2 HANDLE CAP
D03 CASE DETERGENT 3611139500 PP 1
D04 CAP SOFTENER 3610916600 PP 1
D05 INLETBOX 3617505300 PP 1
D06 NOZZLE AS 3618103500 PP, DWD-100DR 1 TOP+UNDER
D07 PACKING 3614010000 EPDM 1
D08 HOSE INLET 3613266400 EPDM 1
D09 CLAMP AS 3611203200 ID=60, WIRE+GUIDE+BOLT+NUT 1
INLET BOX/TUB R
D10 HOSE C 3613267010 EPDM, ID=10, OD=16, L=165mm 2 PRE WASH
D11 HOSE A 3613266600 EPDM, ID=10, OD=16, L=335mm 1 MAIN WASH
D12 HOSE B 3613266700 EPDM, ID=10, OD=16, L=420mm 1 HOT
D13 CLAMP SPRING 3611203800 ID=15.5, T=0.6, B=10 8
D14 VALVE INLET 3615415900 100/130V, 3WAY, PP/BRACKET 1 COLD
3615415000 220/240V, 50/60Hz, 3WAY 1 COLD
3615415010 220/240V, 3WAY, NYLON/BRACKET 1 COLD, VDE
3615415800 100/130V, 2WAY, PP/BRACKET 1 COLD
3615414900 220/240V, 50/60Hz, 2WAY 1 COLD
3615414910 220/240V, 2WAY, NYLON/BRACKET 1 COLD, VDE
D15 VALVE INLET 3615415700 100/130V, 1WAY, PP/BRACKET HOT
3615414800 220/240V, 1WAY, PP/BRACKET HOT
3615414810 240V, 1WAY, PP/BRACKET 1 HOT-AUS
D16 PIPE JOINT 3614413300 PP 1
D17 HOSE SHOWER 3613270100 EPDM, ID=8.5, OD=12.5, L=620 1

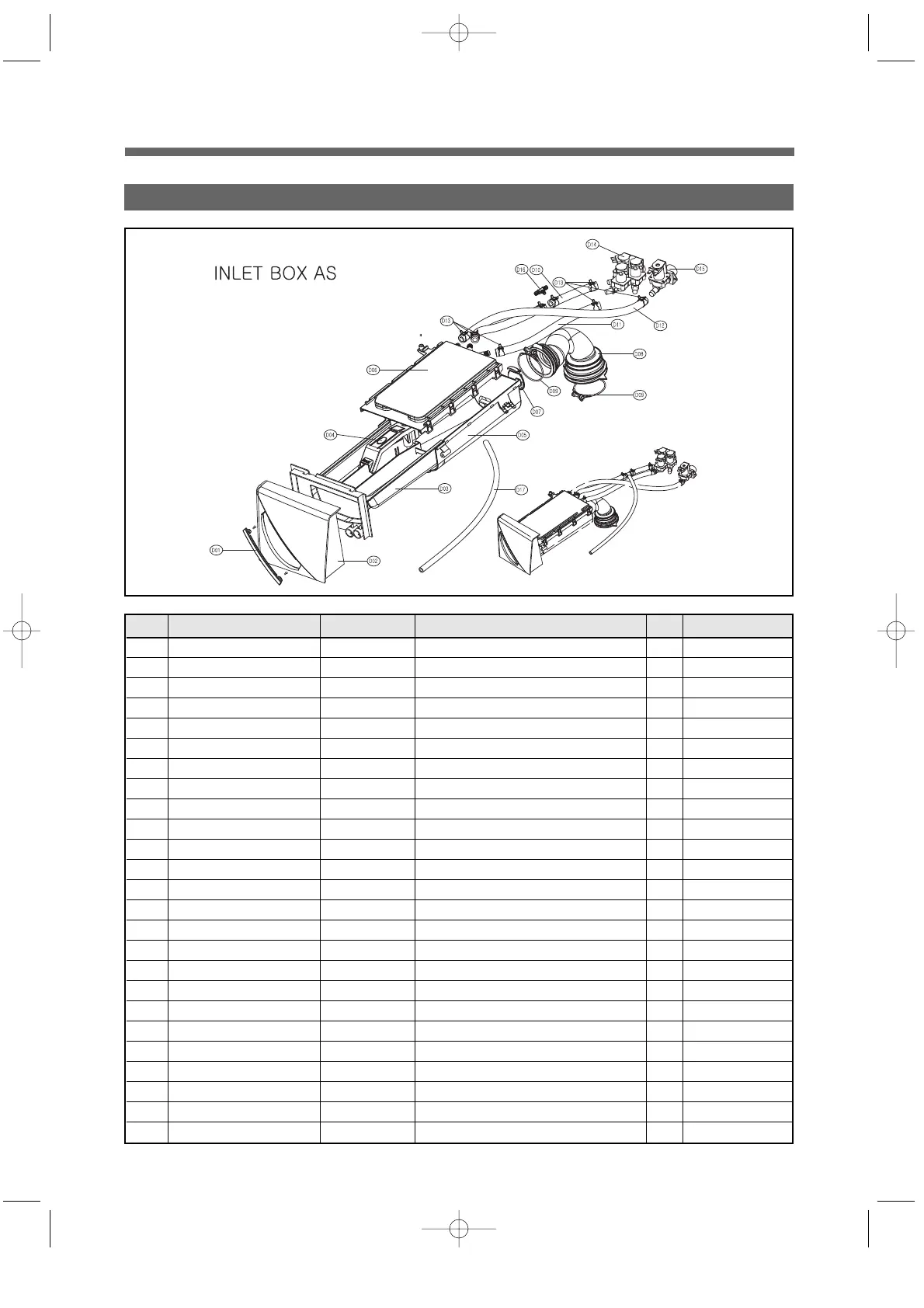

4. INLET BOX AS
