• situation : PCB shows "E3".
cause) ☞FAN MOTOR can not work.
countermeasures) ☞ Replace the Fan Motor.

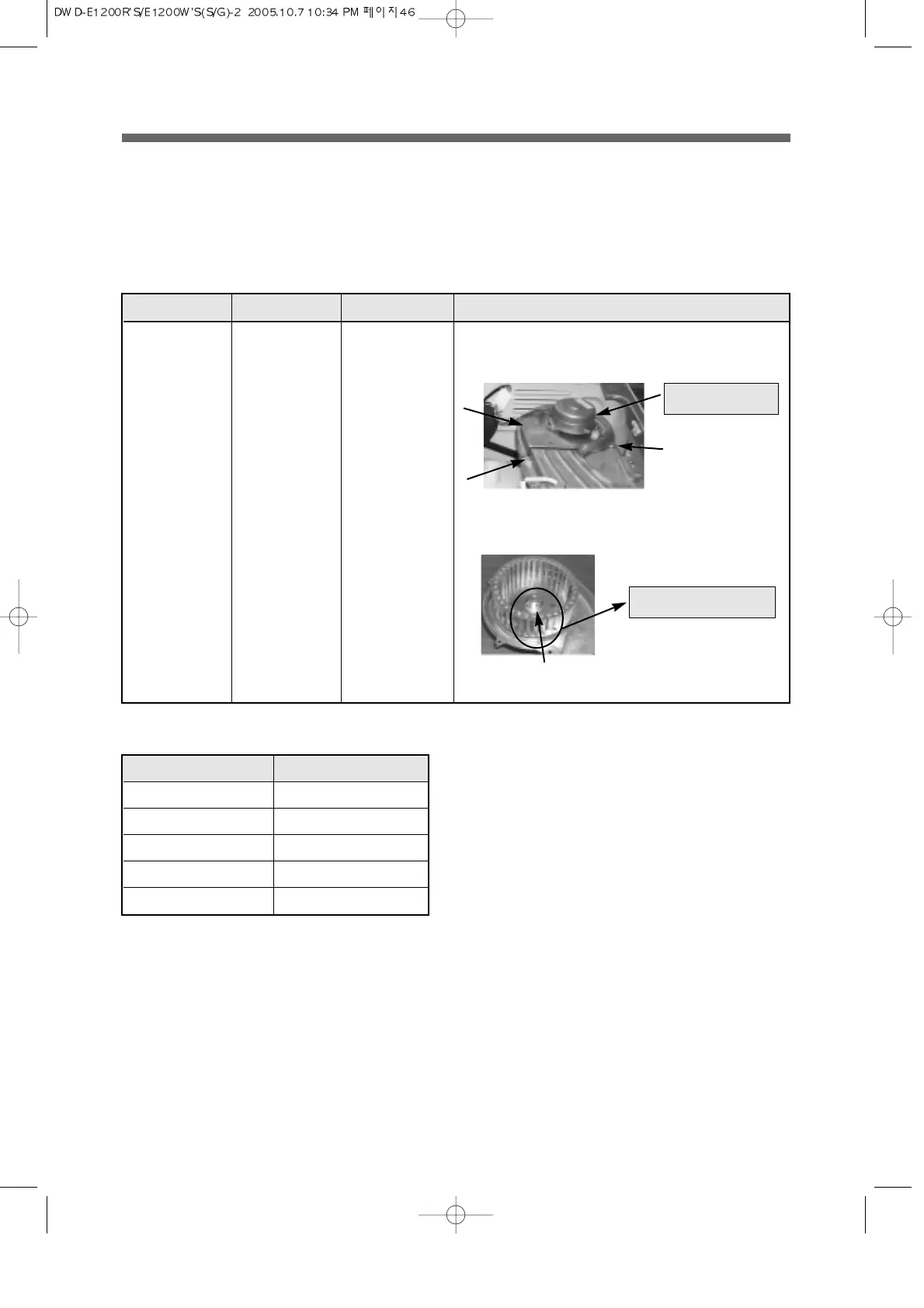

part name checking results repair method disassemble process of Fan Motor
FAN MOTOR fan motor failure replace
fan motor
1Disassemble the DUCT AS from DUCT B AS.
(SCREW 4 EA)
2Disassemble FAN AS from DUCT COVER AS by using
L-wrench.
3Disassemble FAN MOTOR .(SCREW 3EA)
DUCT COVER AS
2.5mm L-wrench
parts Control time
MOTOR 10 sec On, 10sec Off
DRAIN MOTOR Continous working
FAN MOTOR Continous working
DRY HEATER 87°C On, 95°C Off
INLET VALVE 5sec On, 20sec Off
Remarks) control times of each parts during dry process
