5. DIRECTIONS FOR INSTALLATION AND USE

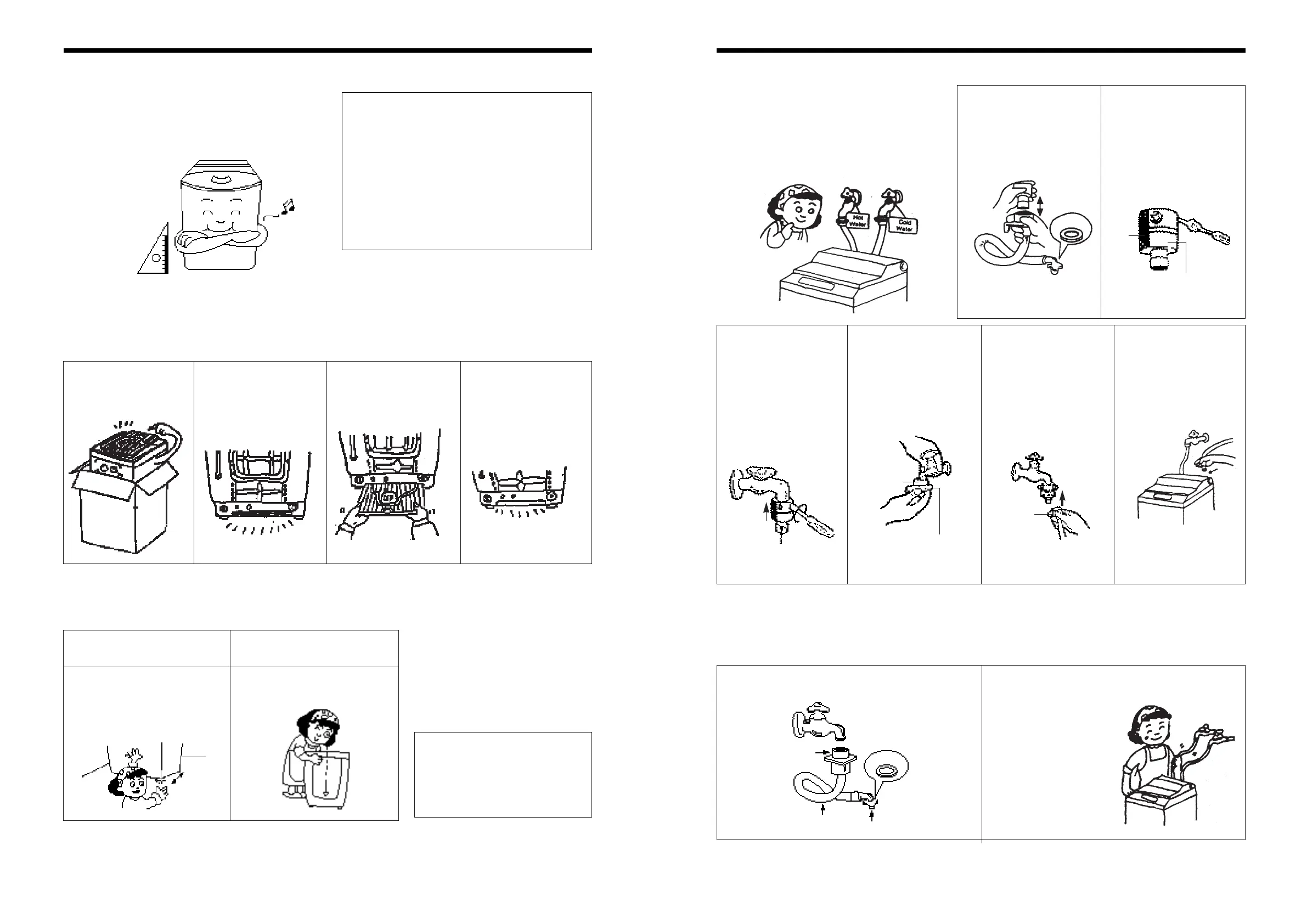

HOW TO INSTALL THE WASHING MACHINE
SELECTION OF THE INSTALLING PLACE
Install the washing machine on a horizontal solid floor.
If the washing machine is installed on an unsuitable
floor, it could make considerable noise and vibration.
•
The proper installation of the washing machine
can increase the wash effectiveness and the
life of it.
INSTALLATION OF THE UNDER BASE COVER
HOW TO INSTALL ON A INCLINED PLACE
Avoild installing it in these places.
•
A place where it would be exposed to direct
sunlight.
•
A place where there is a heater or heat
appliances.
•
A place where it would be supposed to be
frozen in winter.
•
A place with cola gas and a damp place like a
1 Separate under base
cover from the unit.
2 There is a inserting
place under of the
back side on the
washer.
3 Let the base cover
that can be shown the
“UP” sign.
4 Insert the base cover
into the slot of under
base until come to the
end of the slot.
11
Height Setting
•
After controlling the height by
turning the adjustable legs with the
washing machine inclined a little,
tighten the outer cap to be locked
with the washer put down to the
ground.
22
Check the Horizontal
Status
•
Check the position of tub above the
center of the washer.
After installing the washing machine, close the under-base
cover.
If the washing machine is installed on an unsuitable floor, it could make
consider-able noise and vibration, and could cause a malfunction. Use
the height rebber to adjust the washing machine so that is sits properly.
NOTES :
The openings must not be
obstructed carpeting when the
washing machine is installed on
a carpeted floor.
Lock
Loose
HOW TO CONNECT THE INLET HOSE
IN INSTALLING THE INLET HOSE
Be careful not to mistake in supplying
between the hot (maximum : 50˚C) and
cold water.
In using only one water tap, connect the
inlet hose tot the cold water inlet.
• FOR SCREW-SHAPED TAP
1
Pull down the collar of
the inlet hose to
separate it from the
water tap adapter.
2
Loosen the four screws
at the water tap
adapter, but don’t
loosen the screw until
they are separated
from the water tap
adapter.
1
Connect the inlet hose to the water tap by
screwing the connector D tightly.
2
Connect the connector C of the inlet hose to the
water inlet of the washing machine by turning it
clockwise to fix it tightly.
• Please check the rubber
packing inside
the connector C
of the inlet hose.
3
Connect the water
tap adapter to the
water tap, and
tighten the four
screws evenly while
pushing up the
adapter so that the
rubber packing can
stick to the water
tap tightly.
4
Remove the tape,
and screw
connector B into
connector A tightly.
5
Connect the inlet
hose to the water
tap adapter by
pulling down the
collar of the hose
end.
6
Connect the inlet
hose adapter C of
the inlet hose to the
water inlet of the
washer by turning it
clockwise to be
fixed tightly.
•
Please check the
rubber packing inside
the inlet hose adapter
of the hose.
Water Tap
Adapter
Collar
➜
➜
Connector C
Rubber
packing
Connector D
Connector C
Inlet Hose
Rubber
Packing
Tape
Water Tap Adapter
Water Tap Adapter
Connector B
Collar
Connector A
1
2
To Next Page
