THE REPAIR

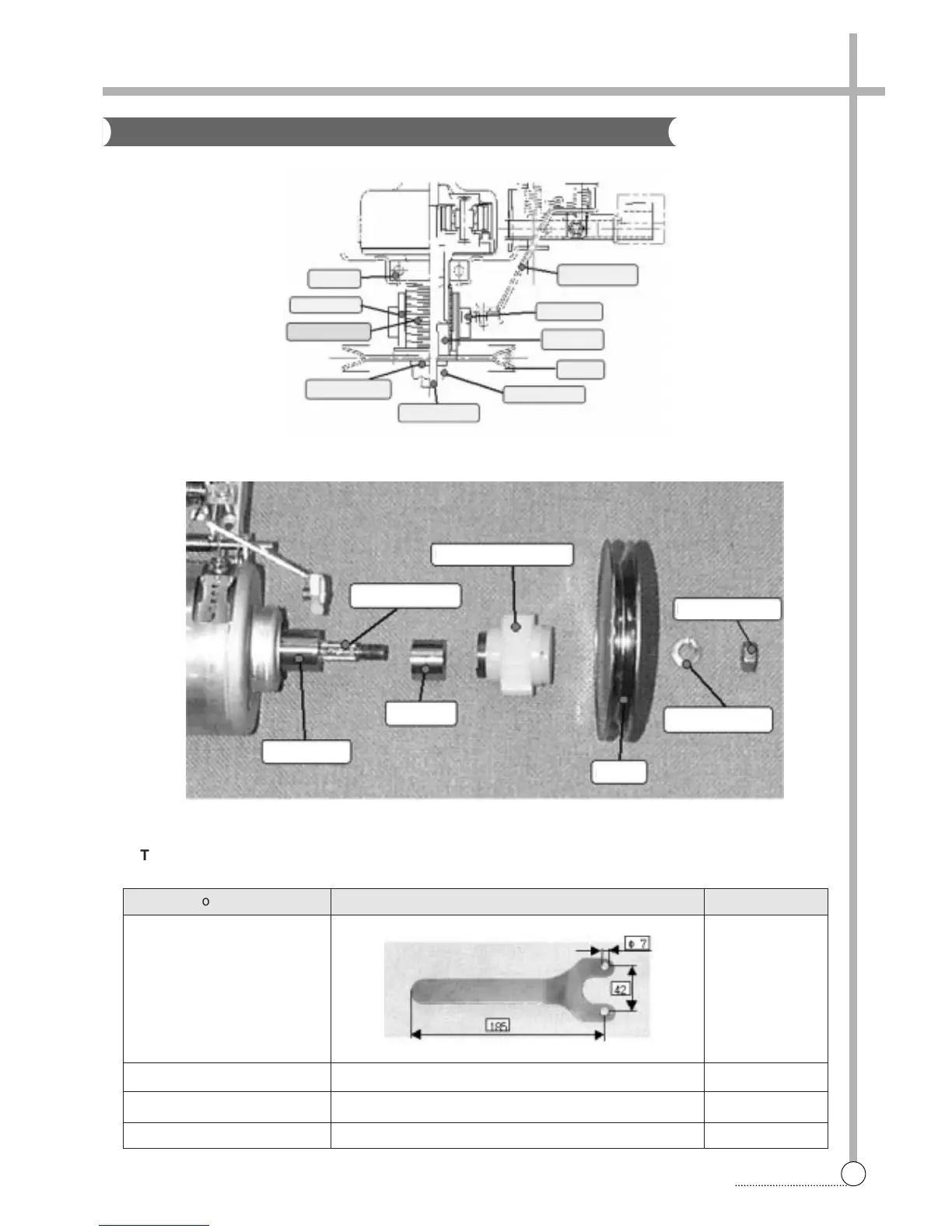

7. THE REPAIR METHOD OF GEAR MECHANISM FOR CLUTCH SPRING PROBLEM
¡¡ ‹
TOOL FOR REPLACING THE CLUTCH BOSS ASSEMBLE
¡¡ ‹
Tool name Specification Q’ty
Fixing jig 1
Ratchet handle 1
Socket and extension bar socket : 10mm, 17mm per each
Some cotton yarn some
The Structure Of Gear Mechanism
Bearing
Clutch Boss
Clutch spring
Spring Washer
Pulley Shaft
Fastening Nut
Pulley
Coupling
Clutch Tip
Clutch Lever
Drum plate
Coupling
Pulley Shaft
Clutch Boss Ass’y
Pulley
Spring Washer
Fastening Nut
