5
ELECTRICAL REQUIREMENTS

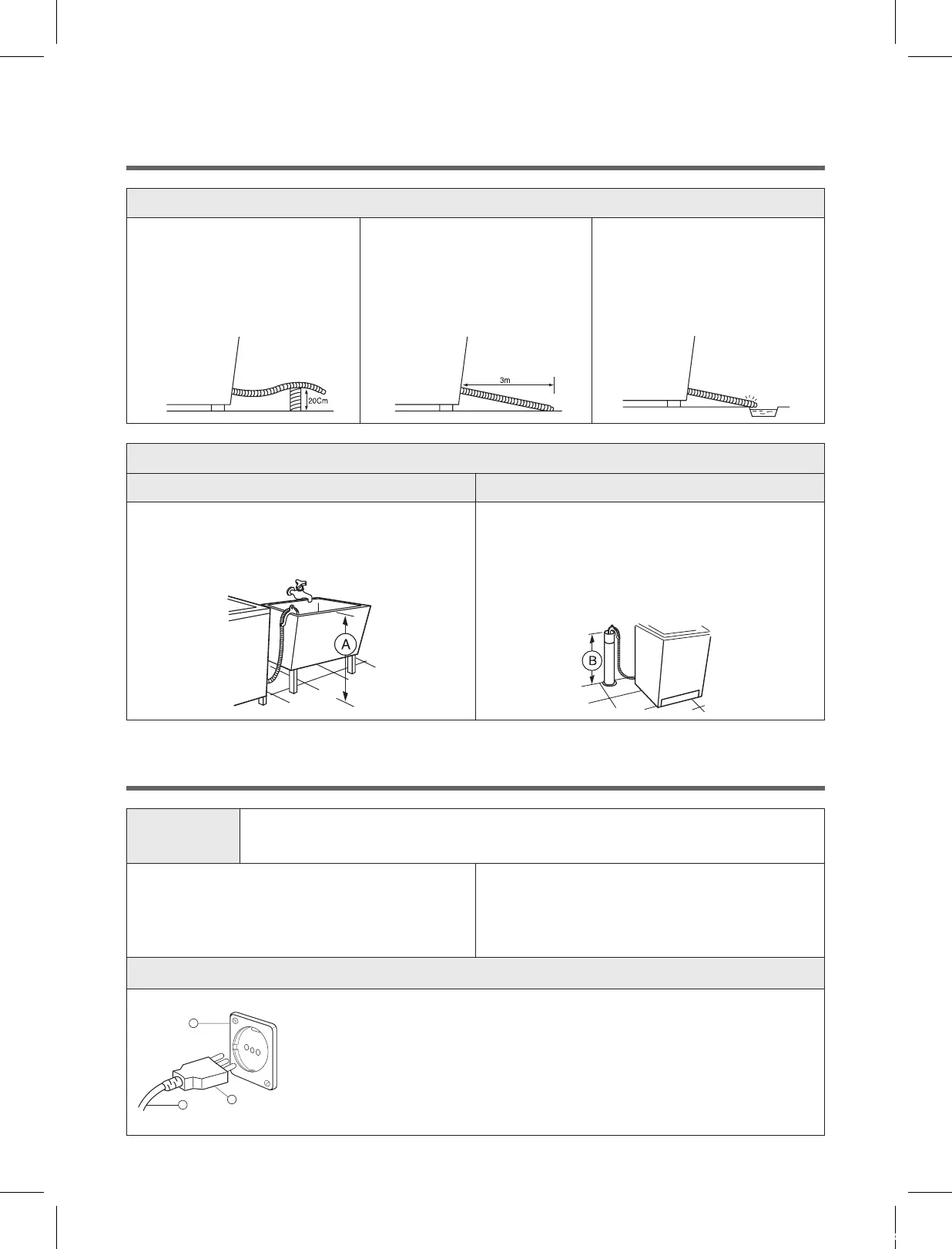

1 In case that it goes over
a door sill.
Don’t let the height of the
drain hose exceed 20cm
from the bottom of
washer.
2 In case of extending the
drain hose.
Don’t let the total length
exceed 3m.
3 Be careful that the end
of the drain hose is not
immersed in water.
Non-Pump Model
• Top of tub must be at least 86cm
(34inches) high and no higher than 130cm
from bottom of washer (A)
• Needs a 3cm minimum diameter
standpipe with minimum carry away
capacity of 30liters per minute.
• Top of tub must be at least 86cm
(34inches) high and no higher than 130cm
from bottom of washer (B)
Laundry tub drain system Standpipe drain system
Pump Model
WARNING
• Electrical earth is required on this washing
machine
• If it does not fit the outlet, have a proper outlet
installed by a qualified electrician.
• Don’t earth to a gas pipe.
• Don’t change the power supply cord plug.
• Check with a qualified electrician if you are not
sure the washing machine is properly earthed.
Recommended earthing method
For your personal safety, this washer must be earthed.
This washer is equipped with a power supply cord (A) having a earthing plug
(B). To minimize possible shock hazard, the cord must be plugged into a mating
earthing-type wall receptacle (C). If a mating wall receptacle is not available, it
is the personal responsibility and obligation of the customer to have the proper
earthed wall receptacle installed by a qualified electrician.
C
B
A
electrical shock hazard: failure to follow these instructions could result in
death or serious injury.
