Daewoo ERF-331MM - Pcb Control Functions; PCB R-sensor off point adjusting option; PCB Functions of low temperature; PCB Time charts of low temperature (Section 14)

26
NO CONTROL FUNCTION CONTENTS

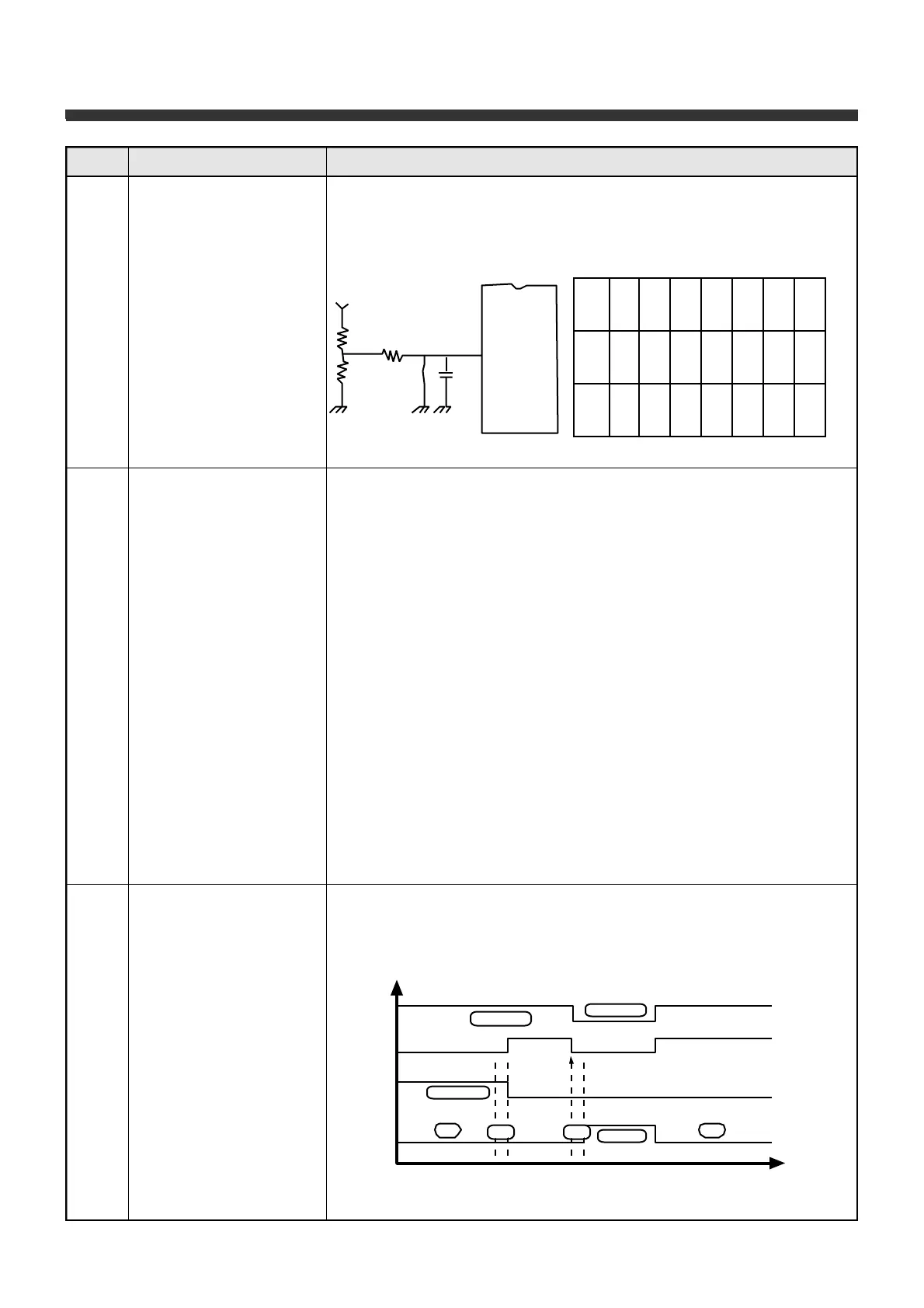

Pcb Control Functions
12 R-sensor - When refrigerator is over-cool or weak-cool, it is adjusted the
off point adjusting option option condition by R42 and R43(after deleting j7)
13 Functions of low 1) Low temp.: RT SENSOR ≤ 24ºC
temperature
2) Hysteresis DIFFERENCE: 1ºC
1- Mode of low temp. : RT SENSOR ≤ 24ºC
2- Mode of general temp.: RT SENSOR ≥ 25ºC
3- Mode of just before control : 24≤RT-S<25ºC
ex) 1- Mode of general control when is arriving to 24ºC
2- Mode of low control when is arriving to 25ºC
3) Control
1- When comp. is on, R-s HTR is off
2- The comp can't be on whiting 30 min after comp. off
3- At general temp. Mode of RT error, R-s HTR is off
4- At low temp. mode, R-s off point increase
2 degrees (ex) -0.5 to 1.5 C
4) R-s heater initial Operation
1- R-s heater turn on and off four times for 8 sec.
14 Time charts of low 1. LOW RT MODE (RT-S ≤24ºC )
temperature A) D-S≤3.5ºC & R-S ON point condition (Initial operation)
R42
R43
R41
J7
CC16
8 PIN
MICOM
Micom
input
(V)
Off
point
variation
(deg)
R42,
R43
(KG)
0V 1.0V 1.5V 2.0V 2.5V 3.7V 5.0
-0.5 ºC 1.0 2.0 3.0 1.0 2.0 3.0
default
R42:40
R43:10
R42:23.3
R43:10
R42:153
R43:10
R42:10
R43:10
R42:3.5
R43:10
R42:10
R43:–
ON POINT
OFF POINT
HTR ON
COMP OFF COMP ON
OFF
6min 6min
24min ON
OFF
HTR ON Pausa COMP OFF
R-S
Comp
HTR
R-S
Heater
