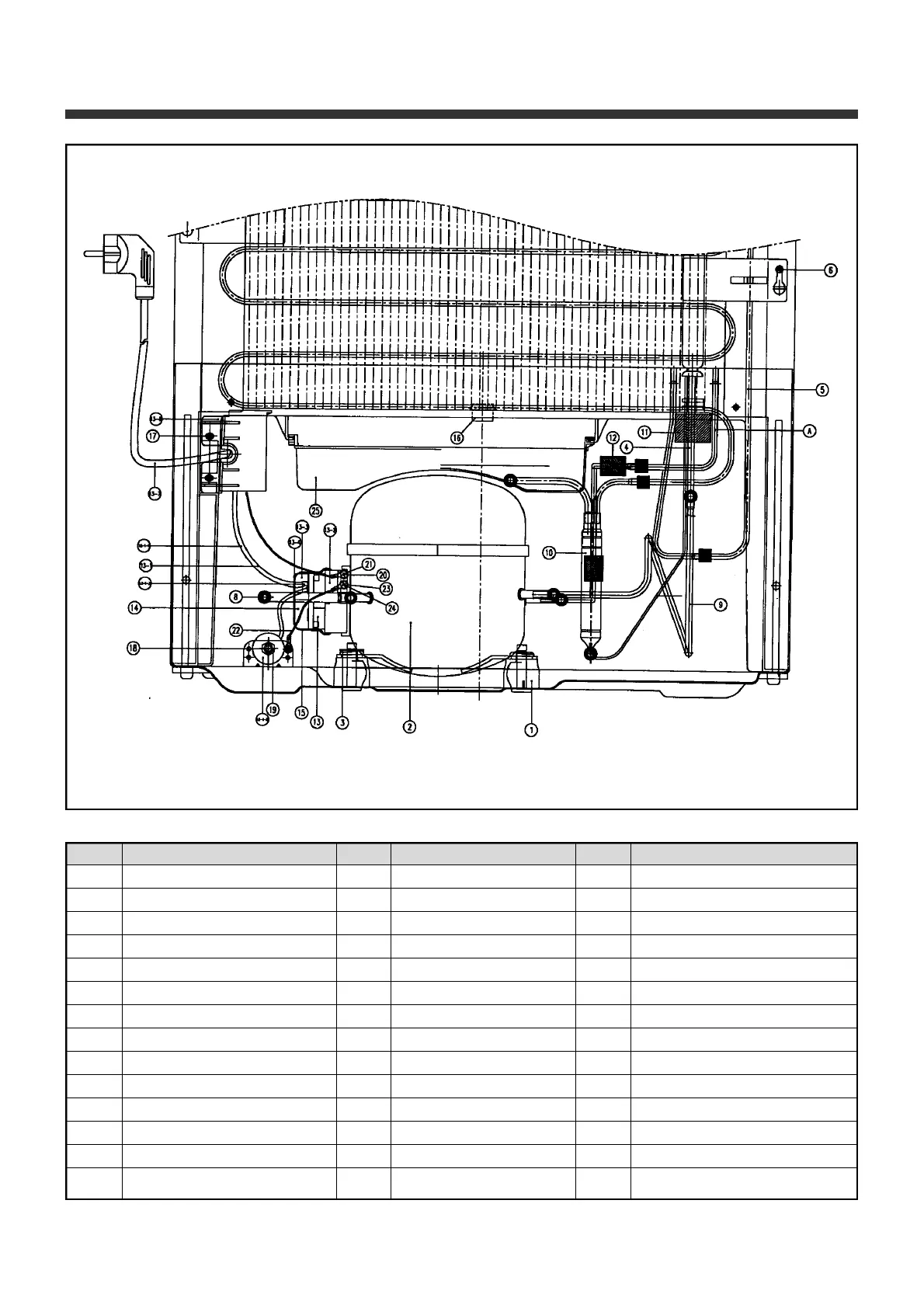

7. MACHINE ROOM VIEW AND PART LIST
Nº PART NAME Nº PART NAME Nº PART NAME
A PIPE HOT 13-1 HARNESS RELAY AS 17 SCREW TRS 4X14
1 ABSORBER COMP. 13-1-1 HARNESS RELAY 18 SPECIAL WASHER R/C
2 COMPRESSOR 13-1-2 CAPACITOR RUN AS 19 SPECIAL NUT R/C
3 FIXTURE COMP. 13-1-3 CABLE TIE 20 SPECIAL WASHER
4 EVAPORATOR AS 13-2 BOX RELAY 21 SPECIAL MASHINE
5 PIPE Wi-CON AS 13-3 CABLE CLAMP 22 HARNESS EARTH
6 SPECIAL SCREW E 13-4 SCREW TAPPING 23 SPECIAL WASHER
7 PIPE CONN B 13-5 SWITCH P RELAY PTC 24 SCREW MASHINE
8 PIPE CHARGE 13-6 SWITCH P RELAY OL 25 CASE VAPORI
9 PIPE SUC. CONN 13-7 CODE POWER AS
10 DRYER AS 13-8 COVER ME HOUSING
11 ABSORBER PIPE B 14 REALY COVER
12 ABSORBER PIPE C 15 BAND REALY
13 BOX RELAY AS 16 CAP DRAINER
