13.2. ERF-XXXN
NO
FUNCTION CONTENTS
1.
DISPLAY

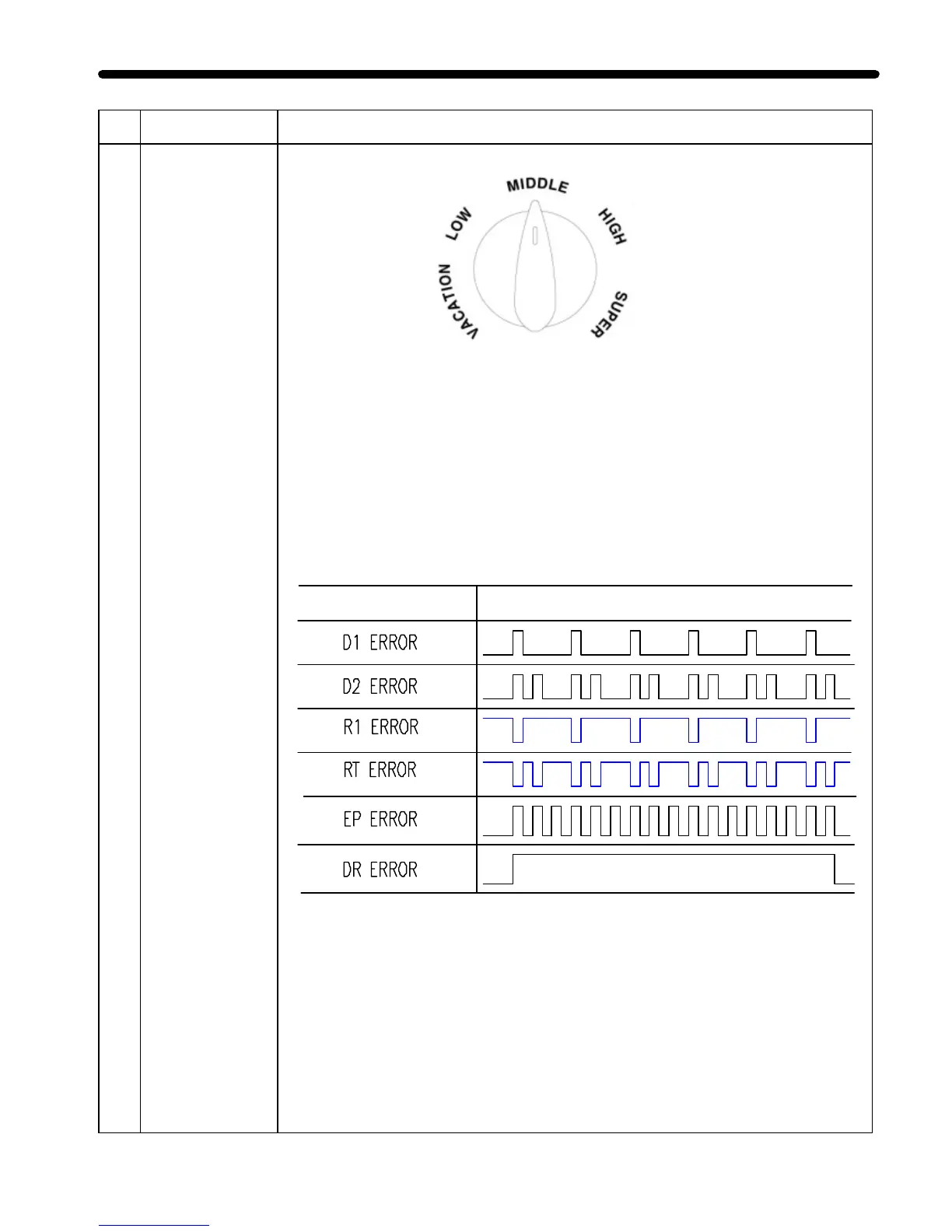

- Temperature control of Refrigerator
Maximum angle clockwise : Temperature setting for SUPER
Maximum angle counter-clockwise : Temperature setting for VACATION
Maximum rotation : 280±10°
Minimum Step Difference : 0.7 deg/28°
Total step Difference : 6.3 deg
ERROR LED DISPLAY (ON MAIN PCB)
DISPLAY ¦++Ù LED +ÔÀ-ã-ó
?FUNCTION DISPLAY
- D1 ERROR : LED is off & on one time.
- D2 ERROR : LED is off & on two times.
- R1 ERROR : LED is on & off one time.
- RT ERROR : LED is on & off two times.
- DR ERROR : LED is on continually
- Buzzer sounds if any button of M-PCB(SW2) is pushed.
- FORCED DEFROST OF CONDITION : Button of M-PCB(SW2) is pushed 1 time.
- SHORT CIRCUIT OF CONDITION : Button of M-PCB(SW2) is pushed 2 times.
