REPLACEMENT OF MAIN COMPONENTS

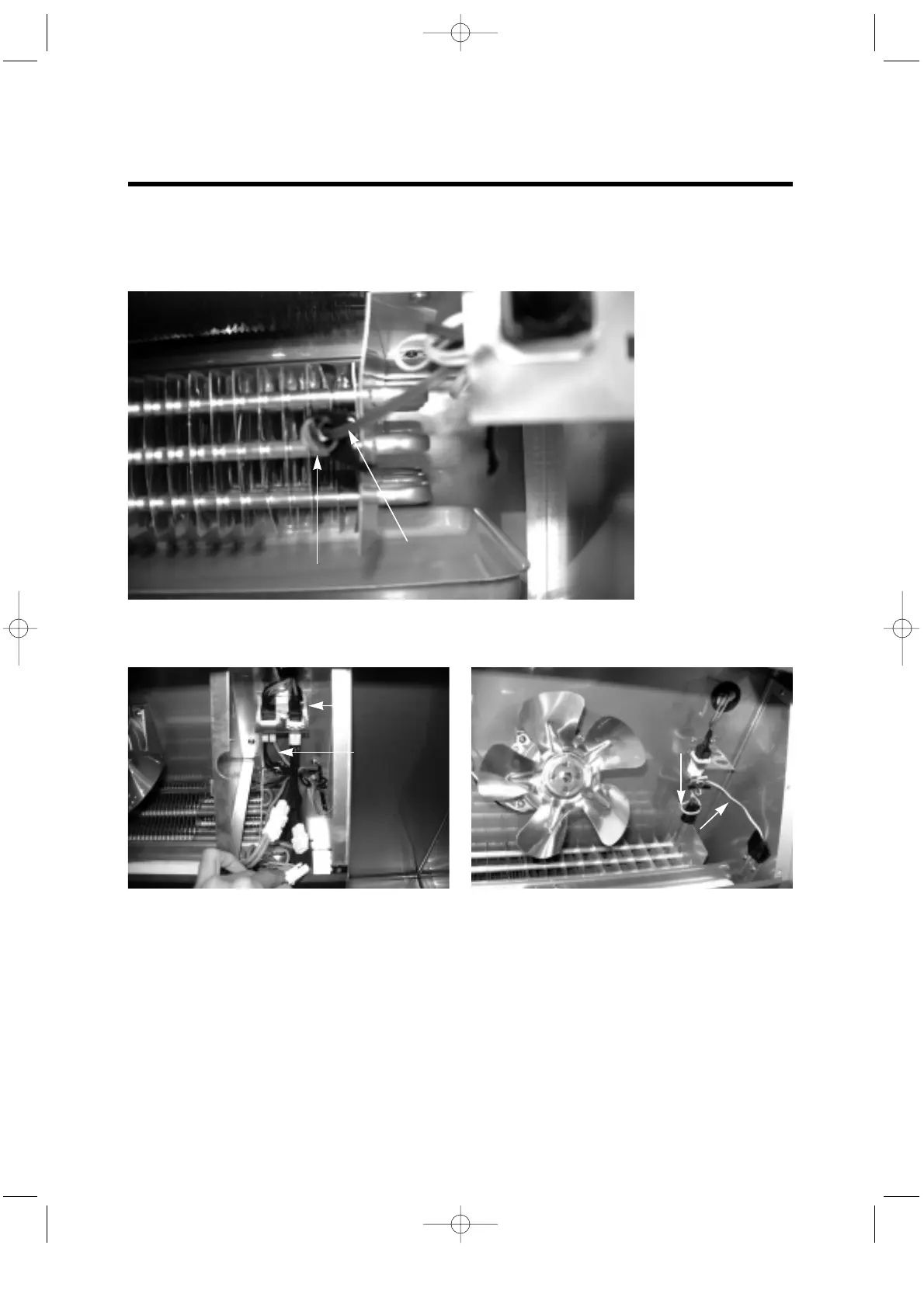

H-5. F/D Sensor or R/D Sensor
After unplug each sensor, pull-out the sensor’s lead wire.
H-4. D-Sensor of Refrigerator
Remove the absorber pad at the end of thermo-pipe and pull-out the D-Sensor.
D-Sensor
(Blue Color)
Thermo-Pipe
D-Sensor
D-Sensor
R-Sensor
F-Sensor
F/D Sensor
(F-Sensor : Orange Color,
D-Sensor : Blue Color)
R/D Sensor
(R-Sensor : White Color,
D-Sensor : Blue Color)
