REPLACEMENT OF MAIN COMPONENTS

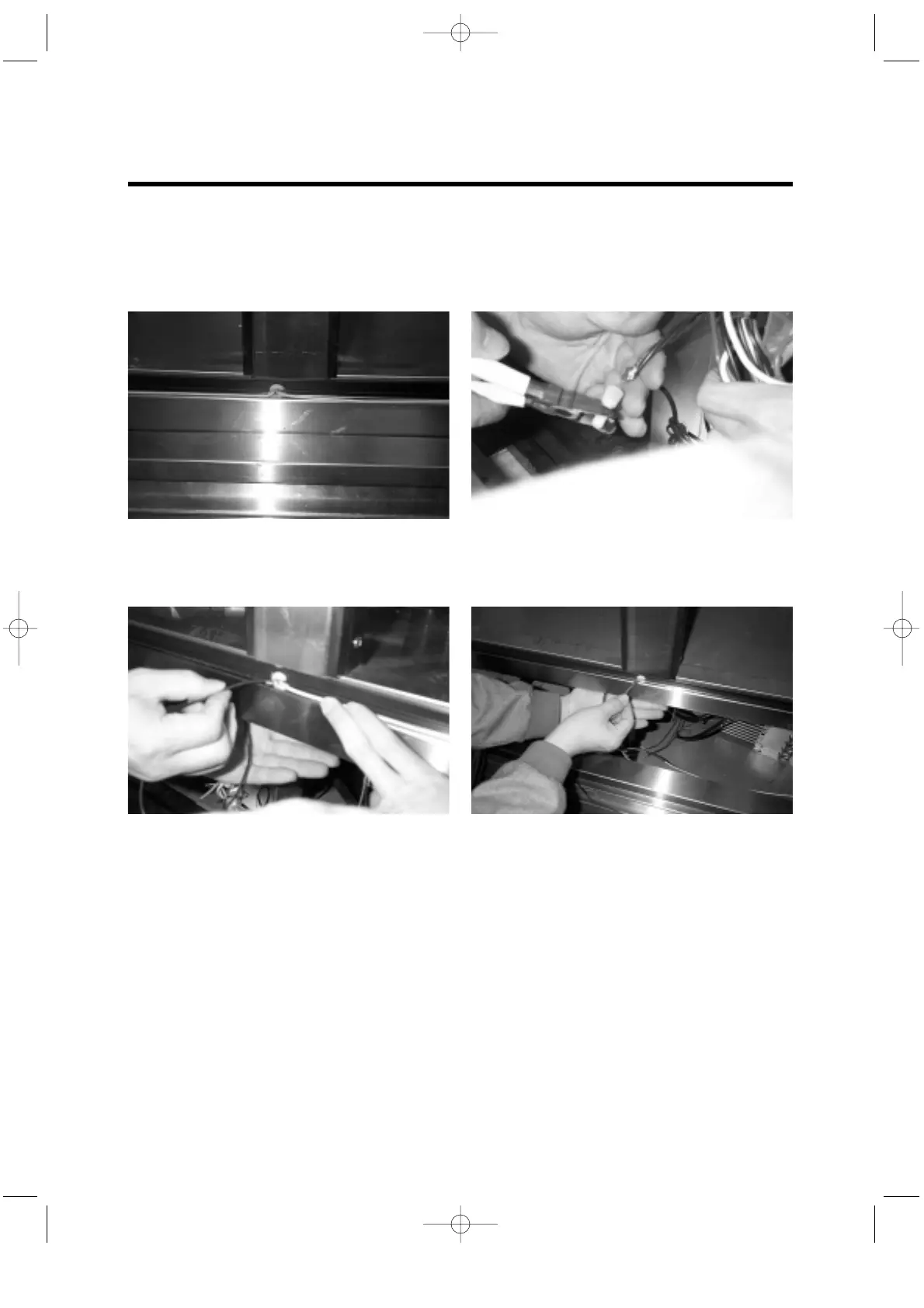

E. Below picture shows the inlet of the
cabinet frame heater toward the
electrical box.
F. Uncap connectors of the cabinet frame
heater.
G. Pull out the heater wire from the inlet. H. Insert the new cabinet frame heater wire
to the inlet, after surrounding it along the
frame.
