41
NO DISASSEMBLING PROCEDURE NO DISASSEMBLING PROCEDURE
16
38
Pull forward ice maker.
Unscrew (3 points) Plate Gear Fixture.
Unscrew Fixture of Frame Ice Maker.
Check if ice dropping motor is normal.

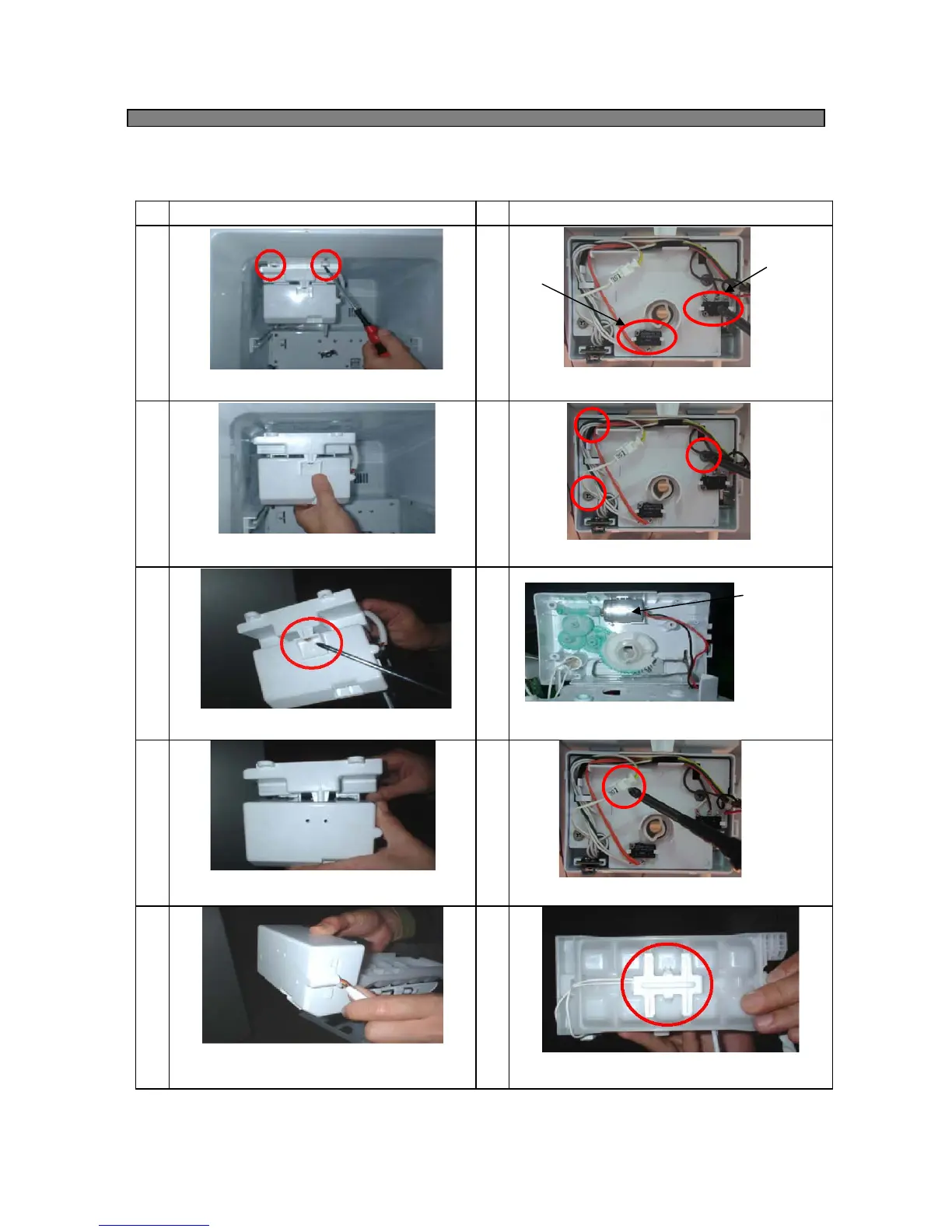

8-7. Ice Maker
1) Disassembling Procedure
27
Remove 2 screws on top front of ice maker.
Remove full ice sensing switch and level switch.
49
Separate Ice Maker Assembly from
Frame Ice Maker.
Remove 2 pin housing (ice sensor)
510
Separate Cover I/M (A) from Cover I/M (B)
with a (-) screw driver.
Remove I-sensor (ice sensor) from
Case Icing assembly.
Follow the reverse order when assembling.
Full ice
sensing
switch
Level
switch
Ice dropping
motor
To Next Page
