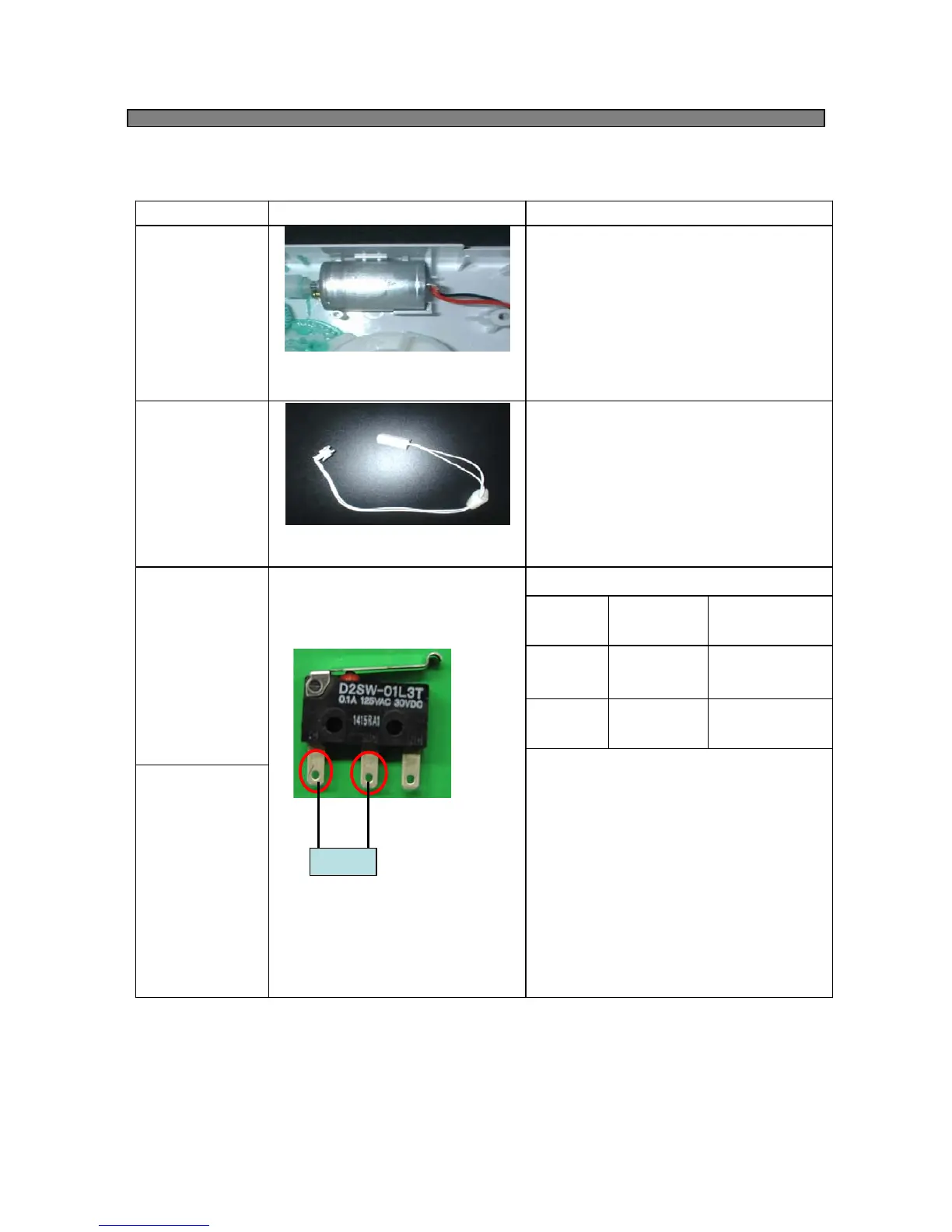

PARTS HOW TO CHECK CRITERION
2) How to Check Ice Maker
Ice dropping motor
Check resistance between 2 wires
with tester.
GOOD : RS-360RH-14250
: 6 ~ 14 ohm
DEFECTIVE :
Change the motor.
I-Sensor
(Ice Sensor)
Check resistance between 2 terminals
with tester.
GOOD : 4.4 ~ 50 k ohm
(It depends on ambient temperature)
DEFECTIVE :
Change the sensor.
Full ice
sensing switch
Check the resistance between
2 terminals ( COM ~ NO)
with tester.
GOOD :
DEFECTIVE :
Change the switch.
Level Switch
Tact Switch
(Lever)
Terminals
(COM~NO)
Tester Result
(Resistance Mode)
Push
Connected
(Close)
0 ohm
Normal
Disconnected
(Open)
∞ ohm
COM NO NC
Tester
