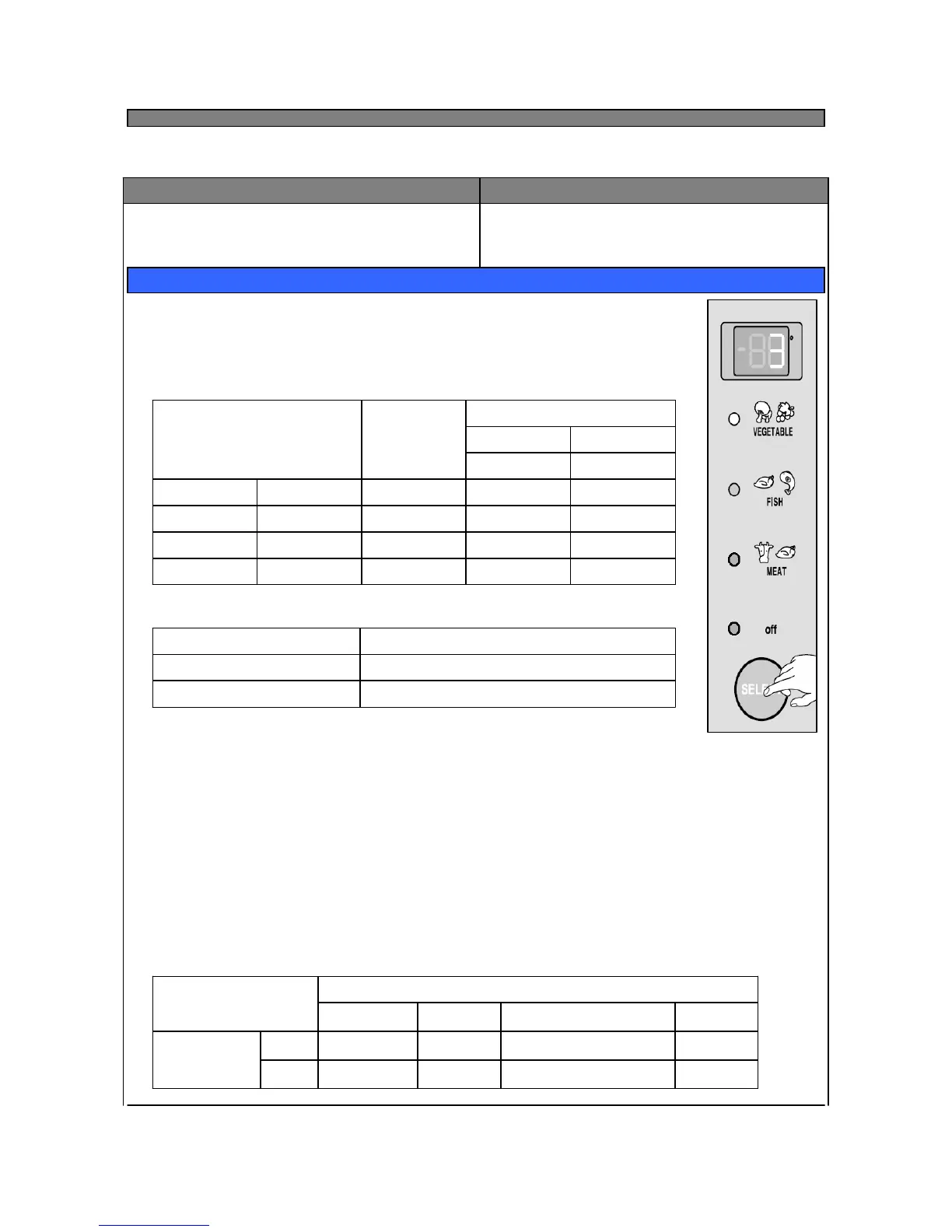

4-15. ‘Magic Cool Zone’ Compartment Function
INPUT CONTROL OBJECT
1. R-Fan
2. Magic Cool Zone sensor
3. Select button
1.‘Magic Cool Zone’ damper
2. Damper Heater
1. ‘Select’ button
1) Control the ‘Magic Cool zone’ temperature.
2) 4 Step mode.
Initial mode when plug in : OFF
( OFF – Vegetable – Fish – Meat – OFF )
CONTENTS
01-3Meat3
rd
Step
23-1Fish2
nd
Step
893Vegetable1
st
Step
---OFFPower Input
DegreeDegree
CloseOpen
Damper Open / Close
DisplayMode
2. Normal Stepping motor Control ( Link with Refrigerator Fan )
Control by each mode/stepOff
Always CloseOn
Magic Cool Zone DamperRefrigerator Fan
3. Damper heater control
1) Damper Open : Damper Heater OFF
2) Damper Close : Damper Heater ON
4. How to Check Error Mode
1) How to start : Push ‘Select’ button for 2 seconds.
- Initial display : Sensor temperature display ( when sensor is normal )
: ‘Er’ display ( in case sensor is abnormal )
- Press ‘Select’ button 1 time : “OP” display. ( Let the damper open )
- Press ‘Select’ button 1 time again : “CL” display ( Let the damper close )
2) How to stop : It stops automatically in 20 sec. from the start.
5. How to control when sensor is abnormal
- Damper open/close follow below table.
OFF
ON
Close
Close
OFF
Select
Open2 min open when R-Fan is offClose
CloseCloseClose
Refrigerator Fan
MeatFishVegetable
Condition
