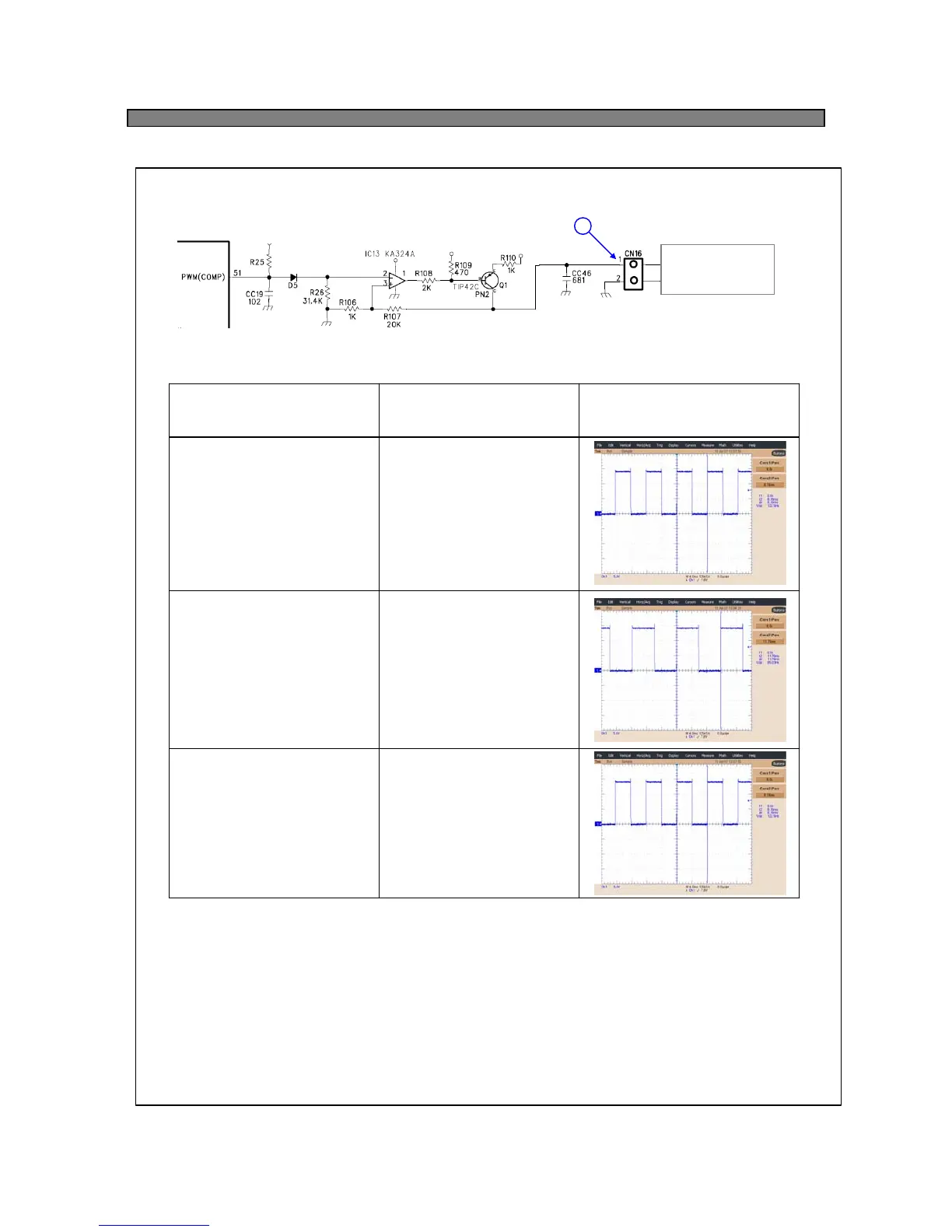

5-5. Compressor speed control (Inverter comp. models only – FRN-U20***I)
2. Measure the Frequency Output Signal from Main-PCB.
122 Hz
Initial Power connected
Super FRZ
Super REF
Weak-Cool
122 Hz
Normal operation
( RT-Sensor 35℃↑)
85 Hz
Frequency Output Signal
(CN 16 of Main-PCB)
Normal operation
( RT-Sensor 35℃↓)
Signal ImageCondition
1. Circuit Diagram
A
INVERTER
