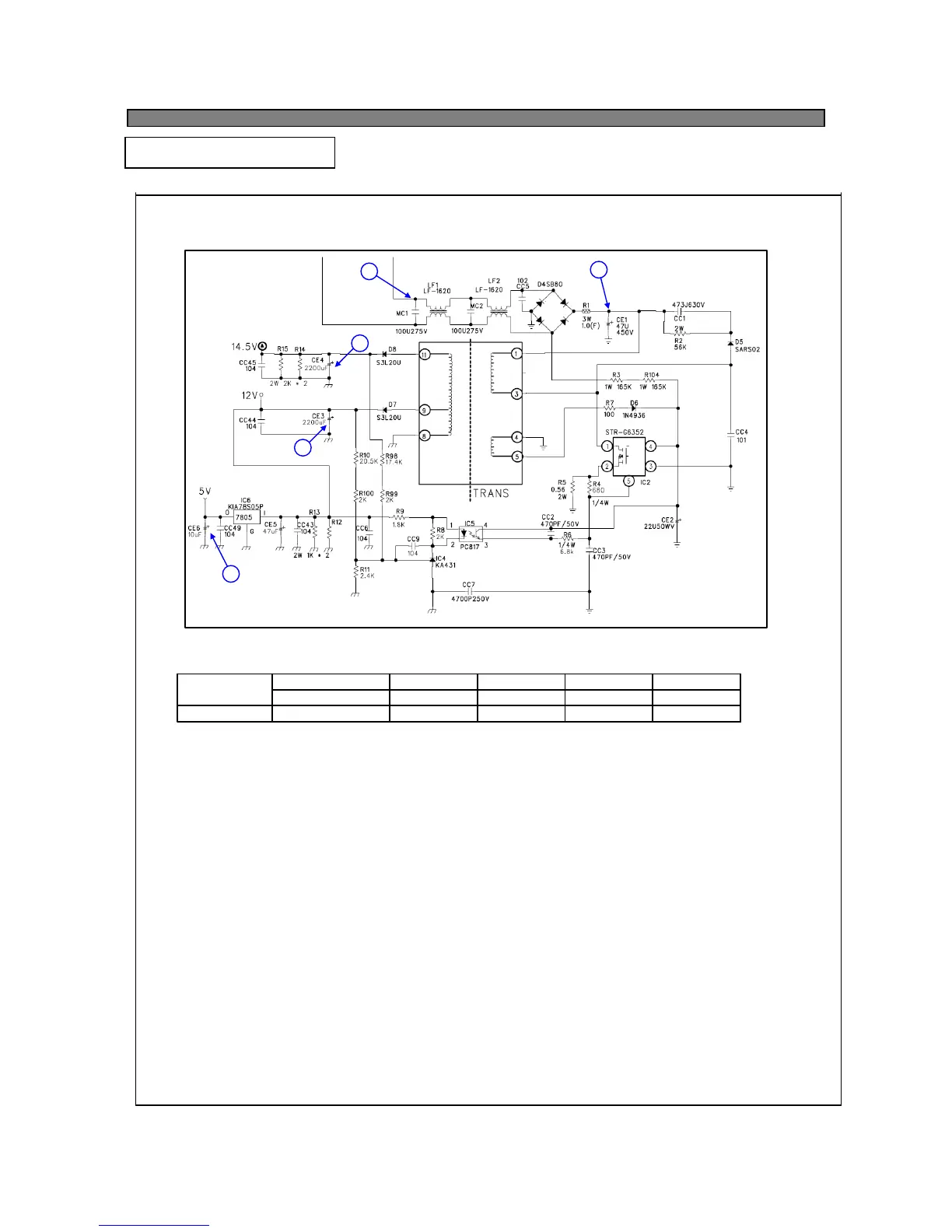

5-1. Power Circuit Diagram
5. CIRCUIT OPERATION
5Vdc14.5Vdc12Vdc310Vdc230VacVoltage
CE6CE4CE3CE1MC1
EDCBA
Parts
Voltage of every part
Caution : Since high voltage (DC310V) is maintained at the power terminal, please take a measure after more
than 3minutes have passed after removing power cords in the abnormal operation of a circuit.
A
C
D
E
B
