Daewoo FRU-541 F - HOW TO CHECK EACH PARTS; Ice Maker Tube and Geared Motor Checks

48
NO

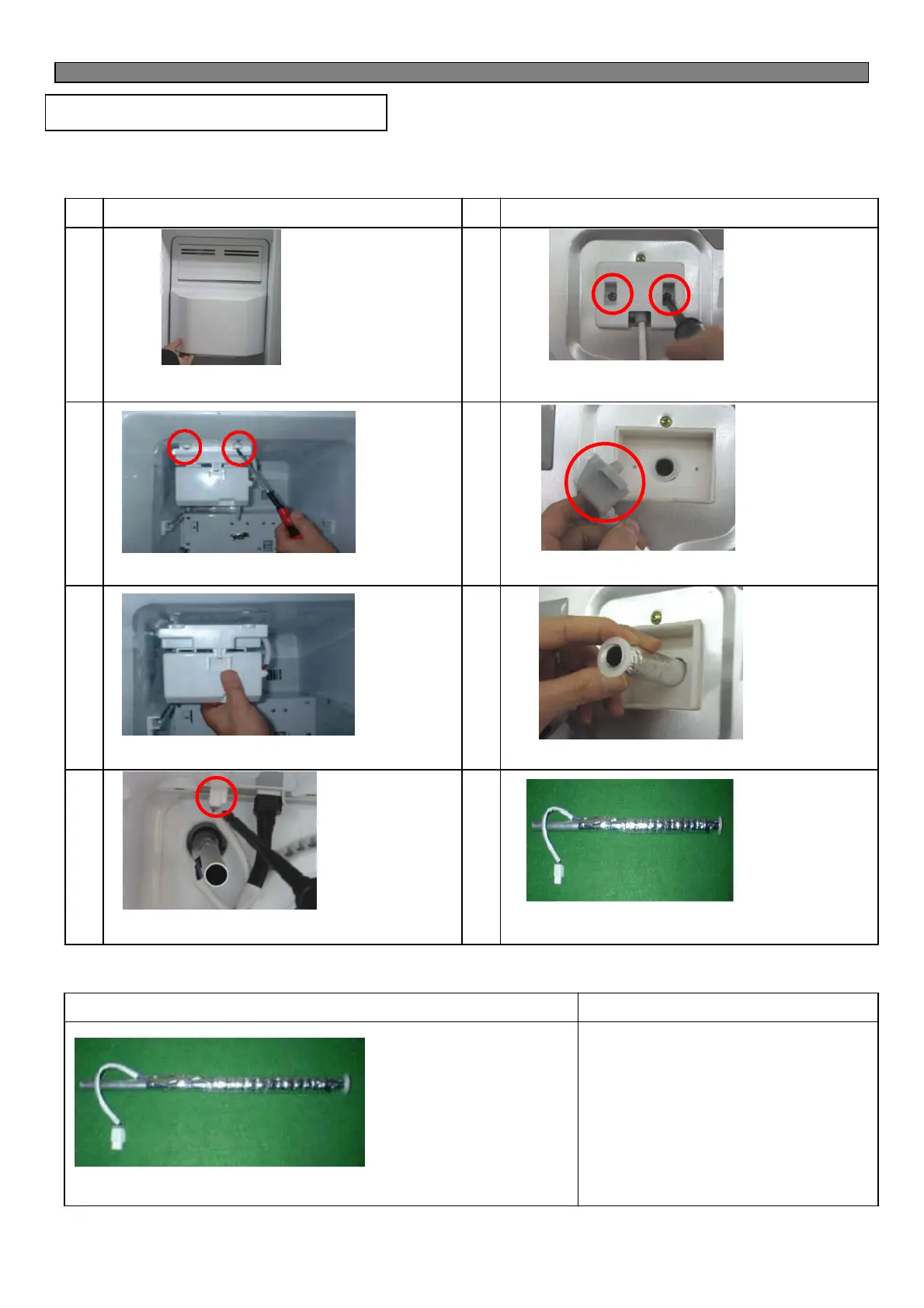

DISASSEMBLING PROCEDURE NO DISASSEMBLING PROCEDURE
1 5
2 6
3 7
4 8
▷Pull forward Ice Storage Case
▷Remove 2 screws at the Cove
Guide Cab W/Tube A.
▷Remove 2 screws. ▷Disassemble Cover Guide Cab W/Tube A
▷Pull forward Ice Maker. ▷Pull forward Hose Ice Maker Tube As.
▷Remove Water Hose Heater's 2P housing.
▷Check Hose Ice Maker Tube As.
2) How to check Hose Ice Maker Tube As.
How to check CRITERION
▷Measure the resistance
of two wire
▷Good: 9680Ω(±8%)
(8900 ~ 10456Ω)
▷If defective, change
8. HOW TO CHECK EACH PARTS
8-1. Hose Ice Maker Tube Assembly
1) Disassembling Procedure
