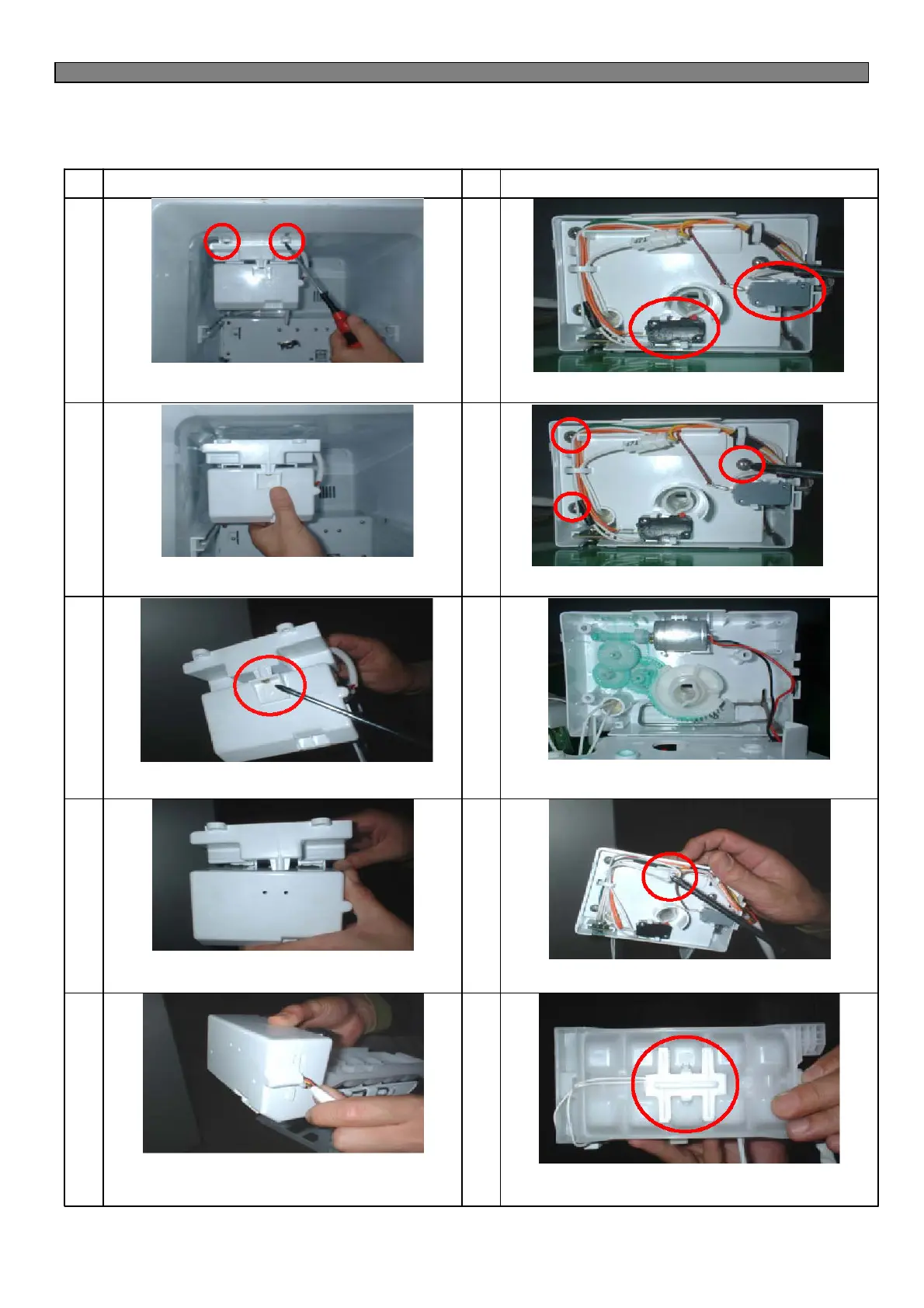

DISASSEMBLING PROCEDURE NO DISASSEMBLING PROCEDURE
1 6
3 8
▷ Pull forward ice maker. ▷Unscrew (3 points) Plate Gear Fixture.
▷Unscrew Fixture of Frame Ice Maker.
▷ Check if ice dropping motor is normal (OK).
8-6. Ice Maker
1) Disassembling Procedure
2 7
▷ Remove 2 screws on top front of ice maker.
▷Remove full ice sensing switch and level switch.
4 9
▷Separate Ice Maker Assembly from
Frame Ice Maker.
▷Remove 2 pin housing from Plate Gear Fixture.
5 10
▷ Separate Cover I/M (A) from Cover I/M (B)
with a (-) screw driver.
▷ Remove I-sensor (ice sensor) from
Case Icing As.
* Follow the reverse order when assembling.
