G424 Service Manual
Cooling System
119

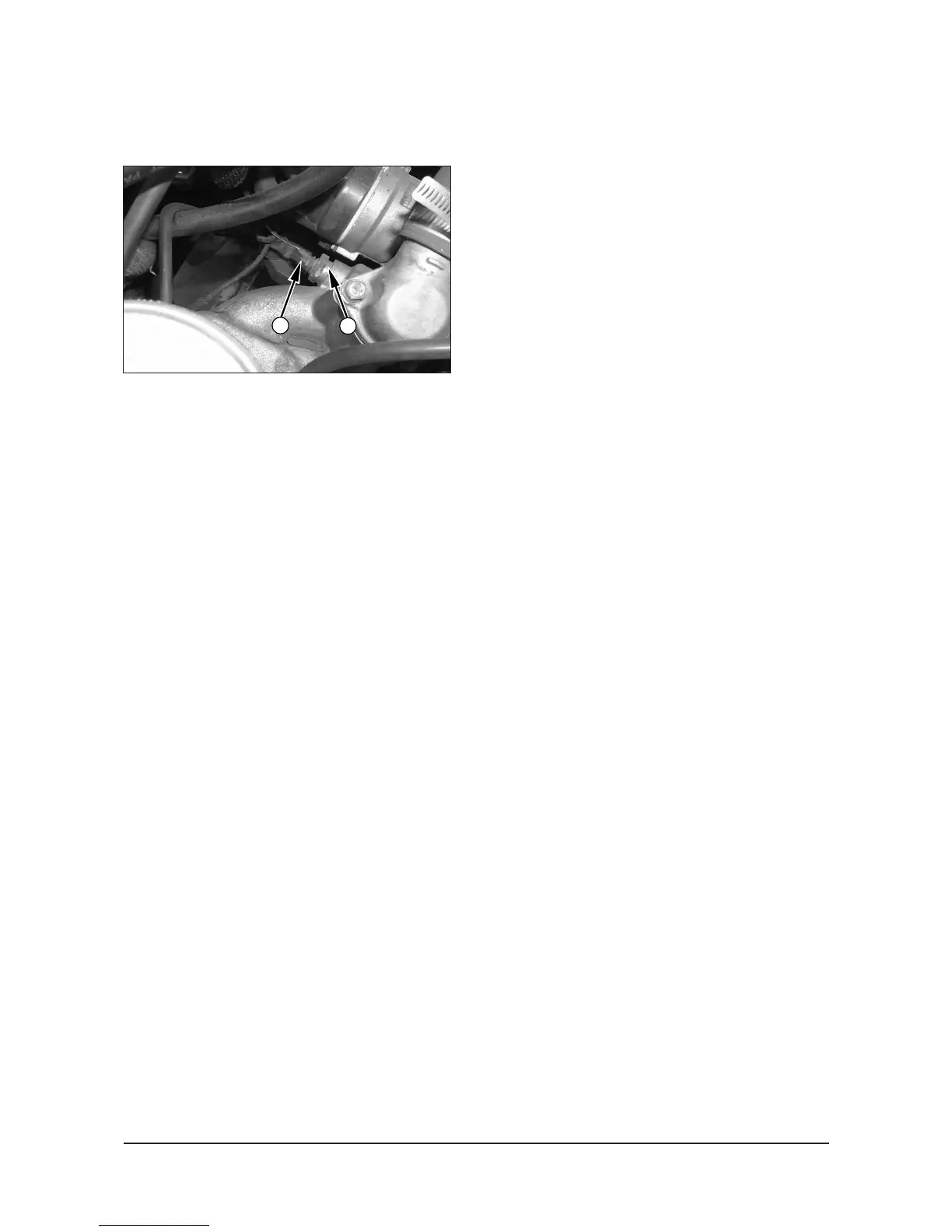

Remove & Install W
ater
T
emperature Sender
1.
Disconnect one wire connection (1).
2.
Remove water temperature sender (2).
NOTE:
For the installation of the water temperature
sender
, reverse the removal steps.
3.
Use thread sealant on the water temperature
sender threads.
2
1
119
