G424 Service Manual Ignition System56

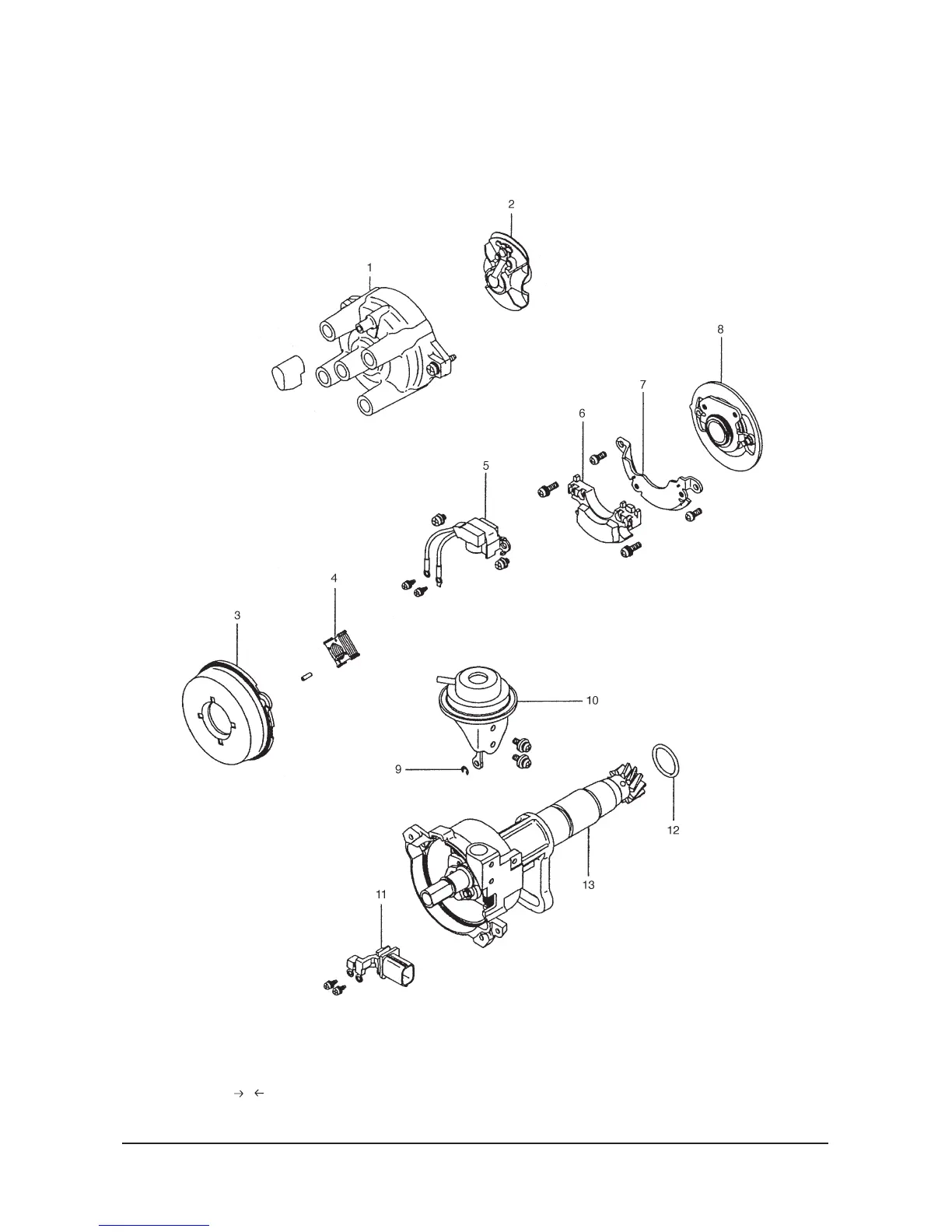

Disassembly and Reassembly
Disassembly steps
1. Distributor cap
2. Rotor
3. Cover
4. Signal rotor
5. Pickup coil assembly
6. Ignitor
7. Heat sink
8. Breaker assembly
9. Snap ring
10. Vacuum control
11. Connector assembly
12. O-ring
13. Distributor housing
A
