G424 Service Manual Base Engine Service Procedure148
6LU0013
6EN1034
4. Oil Pump

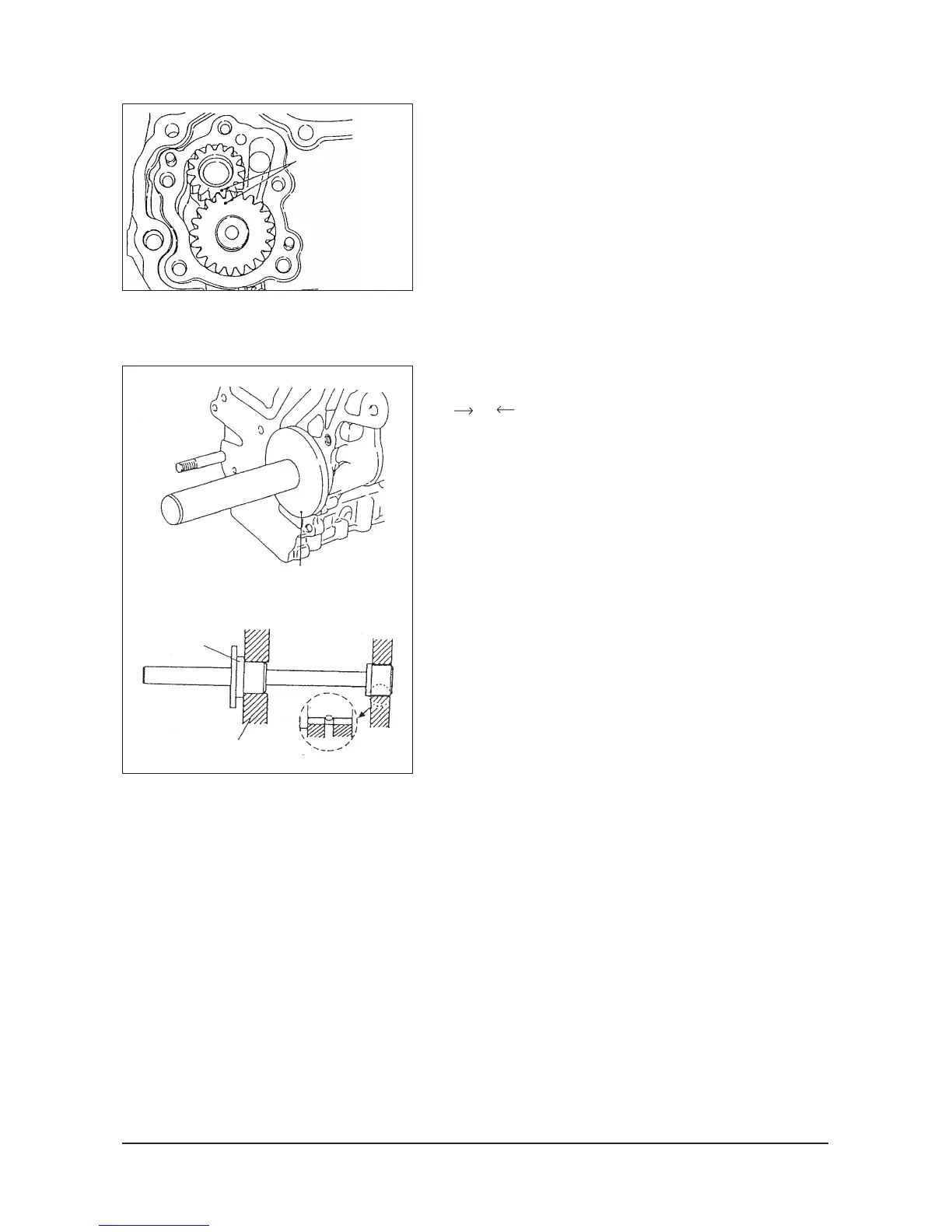

(1) Assemble the oil pump to the front case and rotate it to
ensure smooth rotation with no looseness.
(2) Check the side clearance using a thickness gauge.
(3) Check the side clearance
Standard value:
0.08 to 0.14 mm (0.0031 to 0.0055 in.)
Drive gear
0.06 to 0.12 mm (0.0024 to 0.0047 in.)
Driven gear
Installation Service Points
A Right counterbalance shaft rear bearing
installation
(1) Apply engine oil to the outer surface of bearing.
(2) Using special tools, install right rear bearing. Make sure
that oil hole of bearing is aligned with oil hole of cylinder
block.
MD998705
MD998705
Cylinder block
