Daewoo G20E-3 Service Manual

REMOVAL SERVICE POINTS
A Oil pan removal
(1) Remove the all oil pan bolts.
(2) Drive in the special tool between the cylinder block and oil pan.
(3) Side the tool by striking the edge of the special tool to separate the oil
pan from the cylinder block.
N
M
L
K
J
I
A
B
C
G424 Service Manual General Information5
1. Oil filter
2. Oil pressure switch
3. Drain plug
4. Drain plug gasket
5. Oil pan
6. Oil screen
7. Oil screen gasket
8. Plug
9. O-ring
10. Flang bolt
11. Relief plug
12. Gasket
13. Relief spring
14. Relief plunger
15. Oil filter bracket
16. Oil filter bracket gasket
This alphabetical letter corresponds to the one assigned
to a part in the removal, installation, disassembly or
reassembly steps that are indicated in the drawing on the
first page of each section.
Operating procedures, cautions, etc.
on removal, installation, disassembly
and reassembly are described
17. Oil pump case assembly
18. Front case gasket
19. Oil pump cover
20. Oil pump drive gear
21. Oil pump driven gear
22. Crankshaft front oil seal
23. Oil pump oil seal
24. Counterbalance shaft oil seal
25. Front case
26. Counterbalance shaft, left
27. Counterbalance shaft, right
28. Counterbalance shaft, front bearing
29. Counterbalance shaft, rear bearing, left
30. Counterbalance shaft, rear bearing, right
Removal steps
H
G
G
G
F
E
D
C
B
A
D
E
E

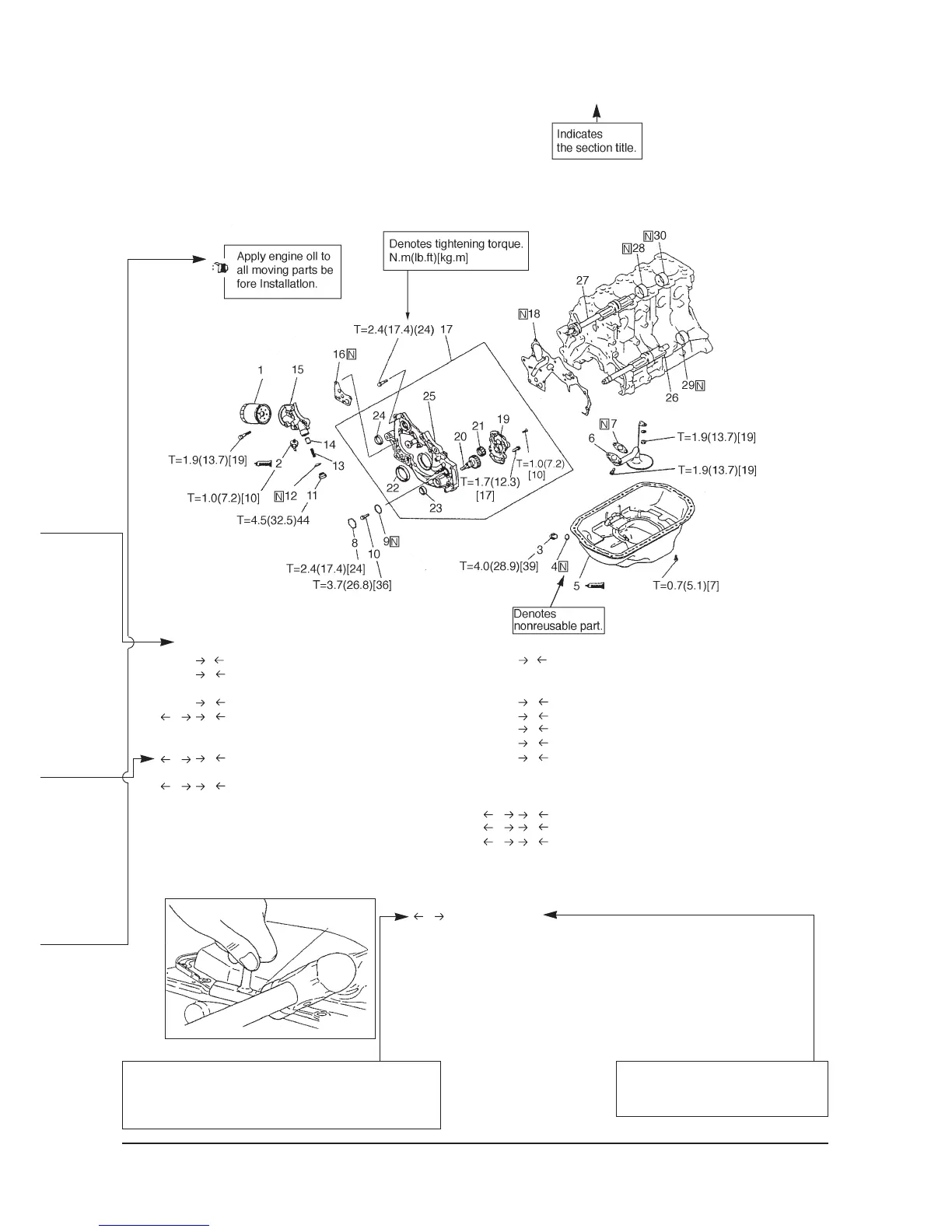

FRONT CASE AND OIL PAN
REMOVAL AND INSTALLATION
6EN1898
6EN0698
MD998727
