G420E/G424E Tier LP Engine N2001 Regulator/Converter 66
N2001 Removal Steps:
1. Close the liquid outlet valve in the fuel storage
container.
2. Purge the system of fuel by starting the engine
and running until all trapped fuel in the system is
exhausted and the engine shuts down.
3. Remove the fuel inlet line (1) from the lock-off, the
two vacuum lines (2) from the branch-tee fitting in
the regulator vent and disconnect the lock-off
connector (3).
4. Remove the two rear-mounting bolts that hold the
regulator to the support bracket. This will allow
you easier access to the remaining hose clamps.
5. Remove the two cooling lines (4) from the
regulator.
NOTE: It will be necessary to either drain the
coolant system or clamp off the coolant lines as
close to the regulator as possible to avoid a
coolant spill when these lines are disconnected.
6. Remove the fuel vapor outlet hose (5) from the
regulator.
7. If it is necessary to fully disassemble the N2001
regulator, you will need to remove the fuel lock-off
at this time.

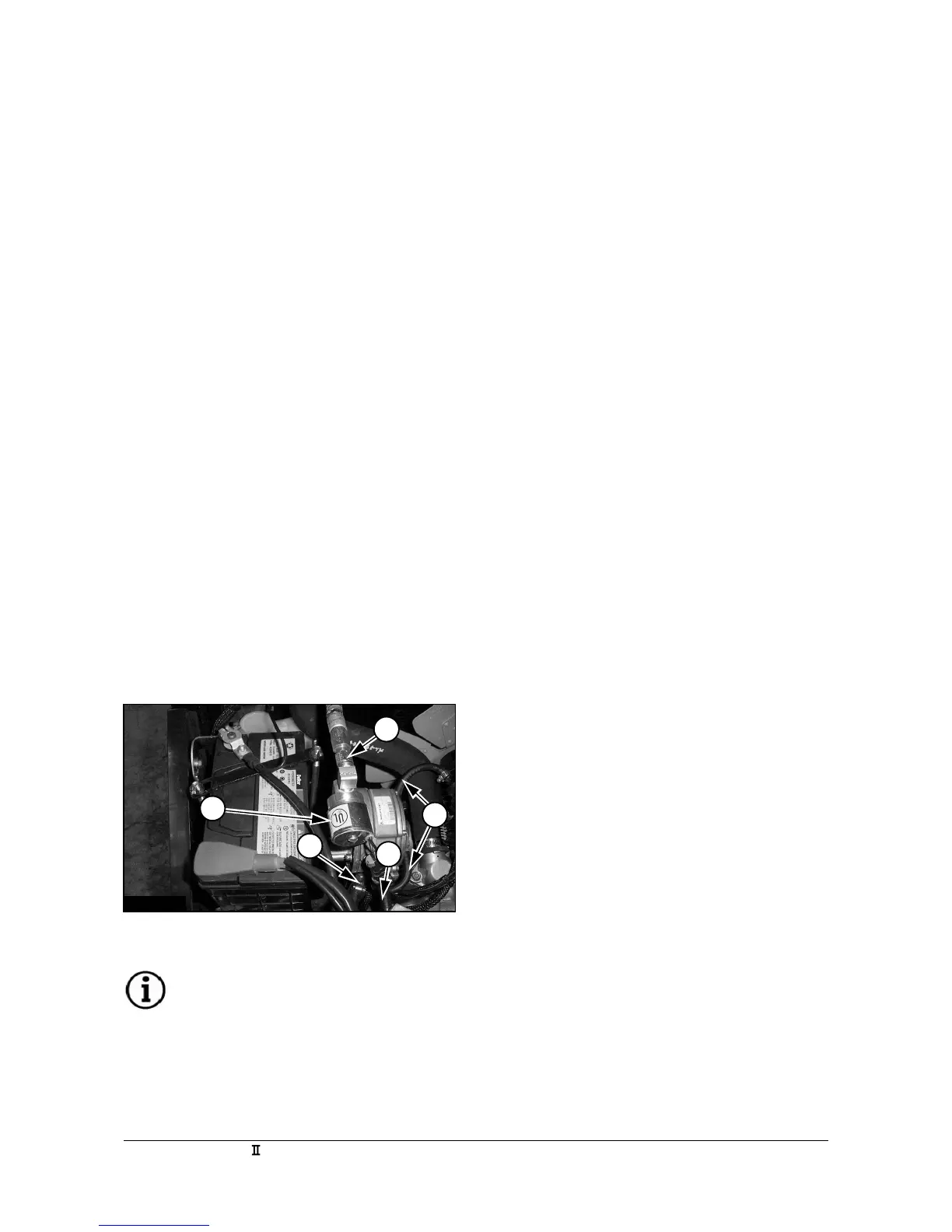

(1) Fuel inlet line (2) Vacuum line (3) Fuel Lock-off
(4) Cooling line (5) Fuel vapor outlet hose
NOTE
For installation of the N2001 reverse the
removal steps.
Figure 24
3
1
2
4
5
