3. To remove guide air assembly. (Refer to Fig. 3)
1) Remove two screws ¤ holding guide air assembly
to the oven cavity.
2) Remove a screw ¤ which secure the lamp ¤ to
guide air assembly.
3) Remove snap pin ¤ı to solenoid ¤Œ.
4) Remove shaft damper ¤ to guide air weld
assembly ¤ .
5) Remove lever damper ¤ to valve damper ¤Ł.
6) Remove a screw which secure the solenoid ¤Œ to
guide air assembly.
7) Remove fuse ¤ to remove screw ¤ .
8) Reverse the above steps for reassembly.

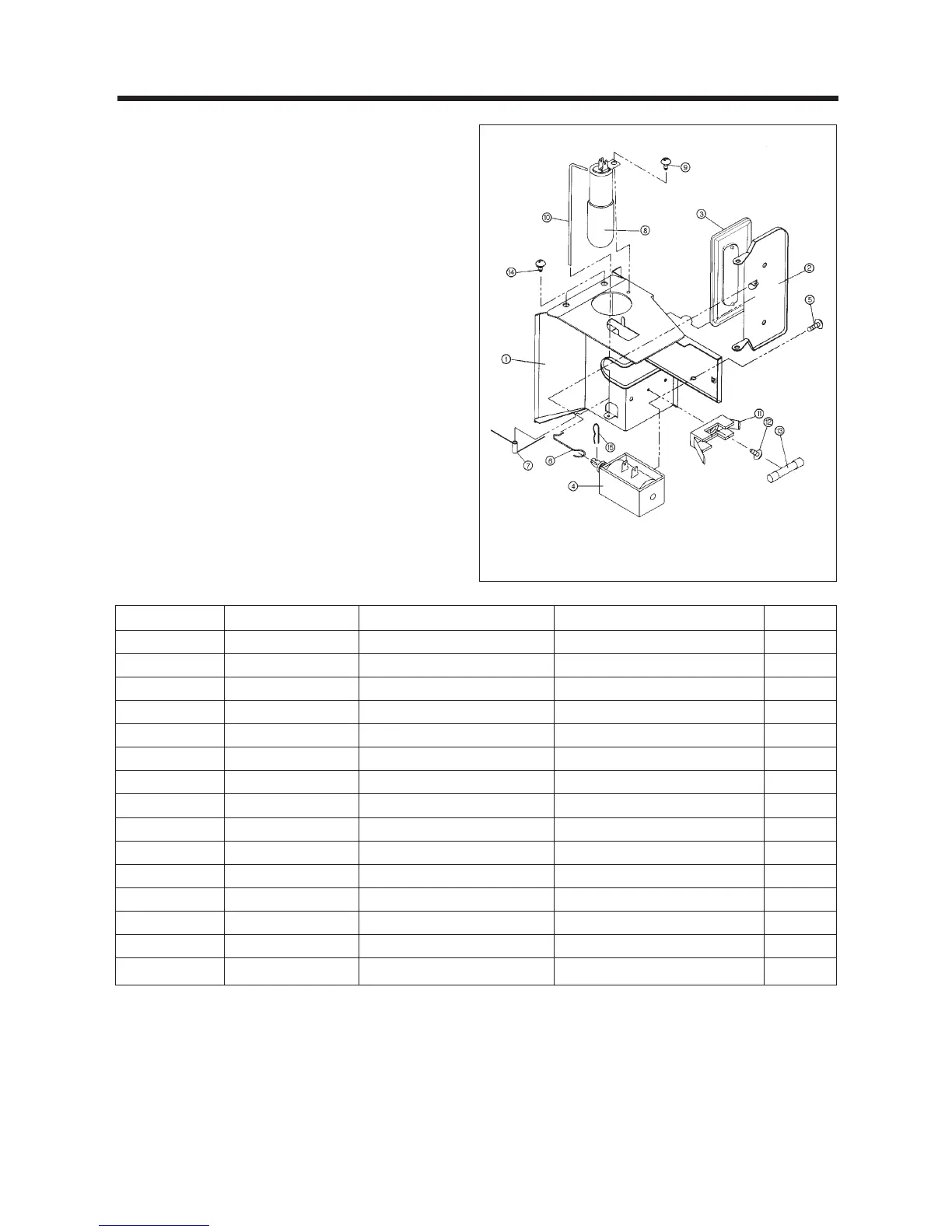

Fig. 3
REF NO. PART CODE PART NAME DESCRIPTION Q’TY
1 3512508000 GUIDE AIR WELD AS KOC-961COS 1
2 3515400200 VALVE DAMPER SBHG-1 T0.5 1
3 3517501000 PROTECTOR DAMPER SILICONE RUBBER 1
4 3519000100 SOLENOID DC 12V DET-SL-007 1
5 7002300613 SCREW MACHINE PAN 3X6 MFZN 1
6 3513700300 LEVER DAMPER MSWR Ø0.8 1
7 3515101000 SPRING DAMPER HSWR 1
8 3513600800 LAMP 125V 25W 1
9 7S312X4081 SCREW TAPPING T1 TRS 4X8 SE MFZN 1
10 441Z724041 SHAFT DAMPER SWRM 1
11 4414D25130 HOLDER FUSE BUSSMANN S-8202-01 1
12 7121300811 SCREW TAPPING T2 PAN 3X8 FMZN 1
13 4417B67600 FUSE 250V 15A 1
14 7S312X4081 SCREW TAPPING T1 TRS 4X8 SE MFZN 2
15 441Q523060 SNAP PIN SWC Ø1.0 1
✔ Caution:
In this Service Manual, some parts can be changed for improving, their performance without notice in the parts list. So, if you need the
latest parts information, please refer to PPL(Parts Price List) in Service information Center(http://svc.dwe.co.kr)
