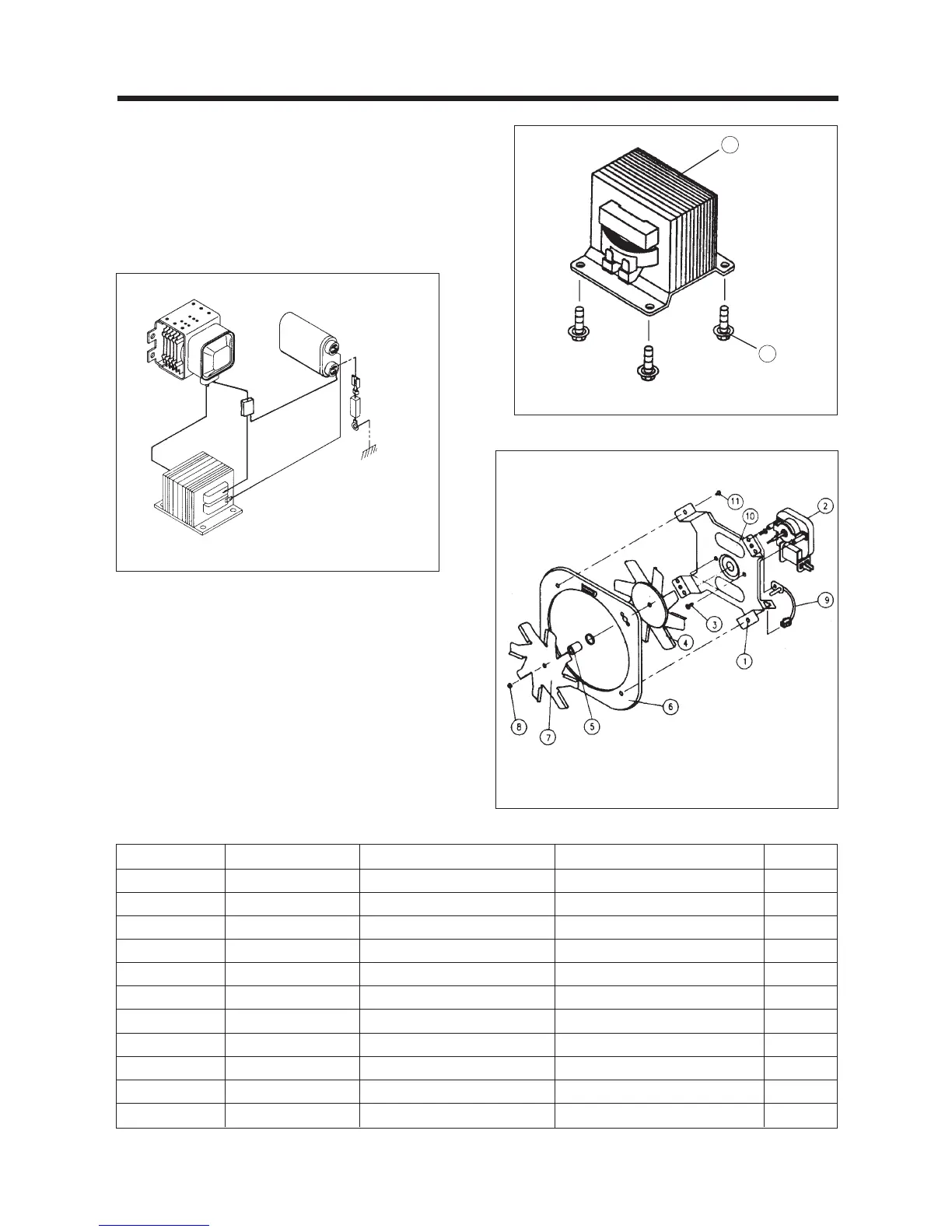

4. To remove H.V. transformer. (Refer to Fig. 4)
1) Remove four screws ¤ which secure the
H.V. Transformer bracket to the base plate.
2) Remove the H.V. Transformer ¤Ł .
High voltage circuit wiring
26
5. To remove convection part. (Refer to Fig. 5)
1) Remove four screws ¤æwhich secure the convection part
to the cavity rear plate.
2) Remove a screw ¤ which secure the thermistor ¤ to
the convection part.
3) Remove a special screw ¤ to convection part.
4) Remove the fan convection ¤ .
5) Remove the pipe ¤º .
6) Remove the bracket Motor ¤ .
7) Remove the fan ¤Œ .
8) Remove two screws ¤Ø which secure the motor shaded
pole ¤Ł to the bracket motor¤ .
9) Reverse the above steps for reassembly.
REF NO. PART CODE PART NAME DESCRIPTION Q’TY
1 3510601500 BRACKET MOTOR SBHG-1 T0.8 1
2 3963821700 MOTOR SHADED POLE OEM-10DWX1-A09 1
3 7051400811 SCREW MACHINE PAN 4X8 SW MFZN 2
4 441B629071 FAN SBHG-1 T0.6 1
5 3514400400 PIPE AL 1100 1
6 3511401800 COVER INSULATOR SA1D-80 T0.7 1
7 3511800400 FAN CONVECTION SA1D-80 T0.5 1
8 7S627W40X1 SPECIAL SCREW NUT FLANGE M4 MFZN 1
9 DPTMK312D1 THERMISTOR PTM-K 312-D1 1
10 7S312X4081 SCREW TAPPING T1 TRS 4X8 SE MFZN 1
11 7S312X4081 SCREW TAPPING T1 TRS 4X8 SE MFZN 4
Fig. 4
Fig. 5
H.V. Capacitor
Magnetron
H.V. Diode
H.V. Trans
2
1
✔ Caution:
In this Service Manual, some parts can be changed for improving, their performance without notice in the parts list. So, if you need the
latest parts information, please refer to PPL(Parts Price List) in Service information Center(http://svc.dwe.co.kr)
