1. Door seal - Door seal maintains the
microwave energy within the oven cavity
and prevents microwave leakage.
2. Reflector (Insulator Heater)
3. Heating Element
4. Oven cavity
5. Safety interlock system
6. Door release button - By pushing this
button the latch system cut off all circuits
and stops the oven before the door is
opened.
7. Metal Rack
8. Coupler - This fits over the shaft in the
center of the ovens cavity floor. This is to
remain in the oven for all cooking.
9. Roller guide - This must always be used for
cooking together with the glass cooking tray.
10. Glass cooking tray - Made of special heat
resistant glass. Food in a proper receptacle
is placed on this tray for cooking.
11. Door viewing screen - Allows viewing of
food. The screen is designed so that light
can pass through, but not the microwave.
12. Door hook - When the door is closed, it
will automatically shut off. If the door is
opened while the oven is operating, the
magnetron will immediately stop operating.

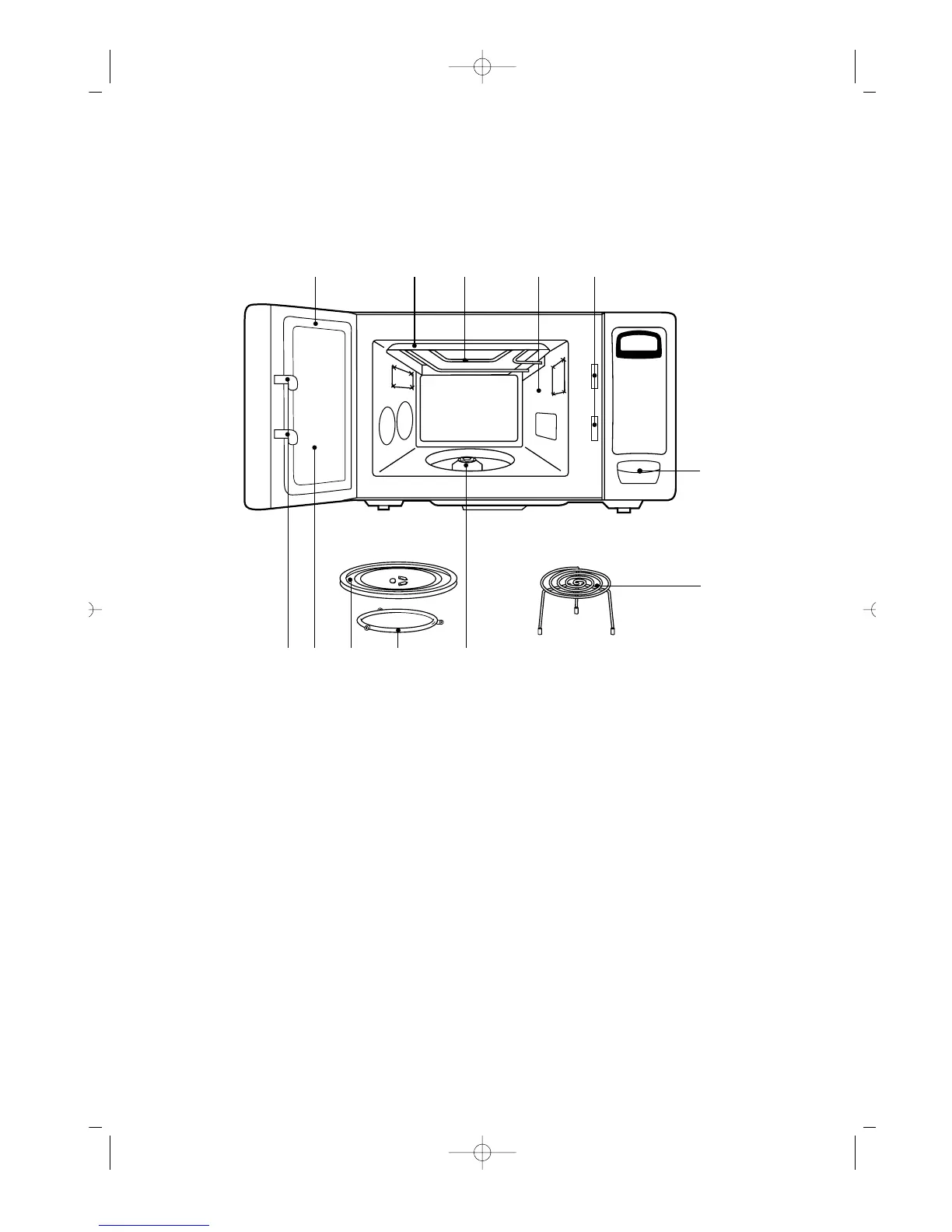

FEATURES DIAGRAM
