Daewoo KOG-36A5 - Remove insulator Heater assembly; Remove Heater Part

20

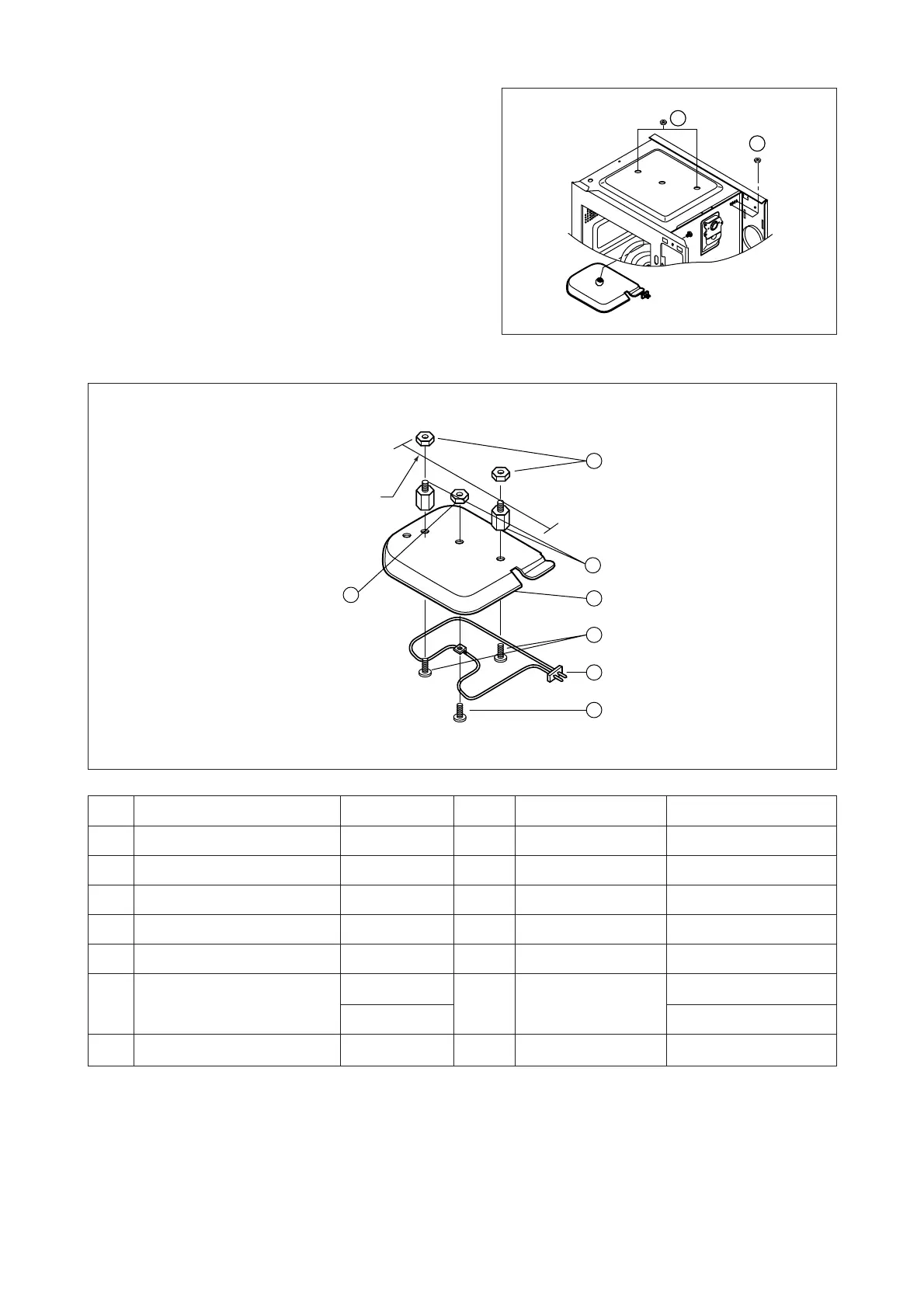

10. To remove insulator Heater assembly.
(1) Remove the four HEX NUTS 1.
(2) Remove the insulator Heater assembly 2.
(3) Reverse the above steps for reassembly.
11. To remove Heater Part.
(1) Remove the HEX NUT 4.
(2) Remove the insulater Heater 1 and Heater 2.
(3) Remove the two screws 5.
(4) Reverse the above steps for reassembly.
NO PART NAME PART CODE Q’TY DESCRIPTION REMARK
1 INSULATOR HEATER 3513301100 1 SPP T0.8
2 HEATER 3512801700 1 230V 1000W
3 SCREW MACHINE 7002500613 1 TRS 5X6 MFCR
4 NUT HEX 7392500008 1 6N-2-5 SUS
5 SCREW MACHINE 7002400413 2 TRS 4X4 MFCR
6 SPACER INSULATOR * I
3515000700
2 C3771BD
KOG-36A5
7 NUT HEX 7392500011 2 6N-2-5 MFZN
2
1
TOP PLATE
7
6
1
5
2
3
4
