DISASSEMBLY AND ASSEMBLY

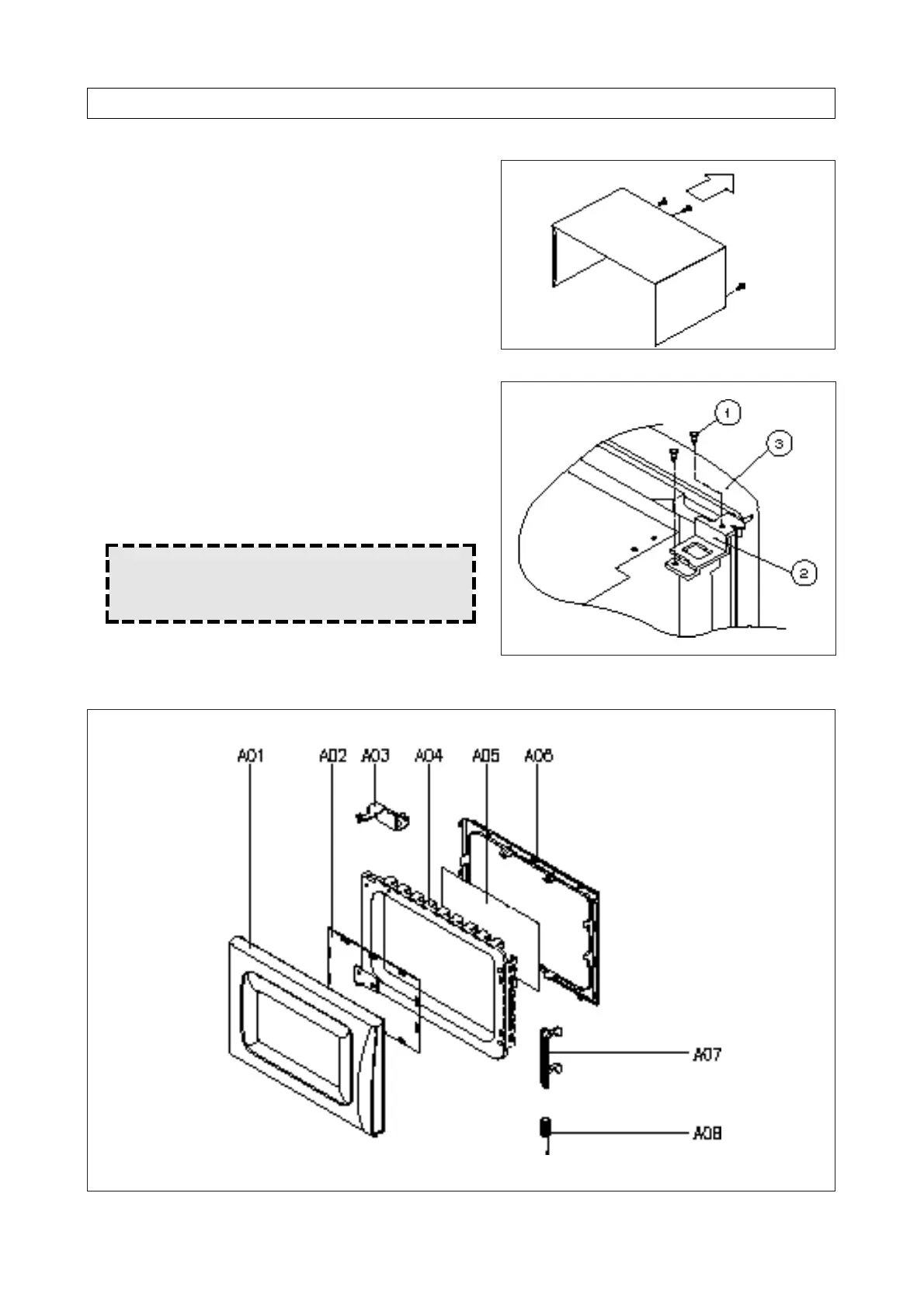

1. To remove cabinet.
Remove three screws on cabinet back.
2. To remove door assembly.
1) Remove two screws ¤ which secure the stopper
hinge top.
2) Remove the stopper hinge top ¤Ł and door assembly
¤Ø from top plate of cavity.
3) Remove the stopper hinge top ¤Łfrom door assembly.
4) Reverse the above for reassembly taking care to
replace fixing glue.
3. To remove door parts.
NOTE : After replacing the door preform a check of
correct alignment with the hinge and cavity
front face.
